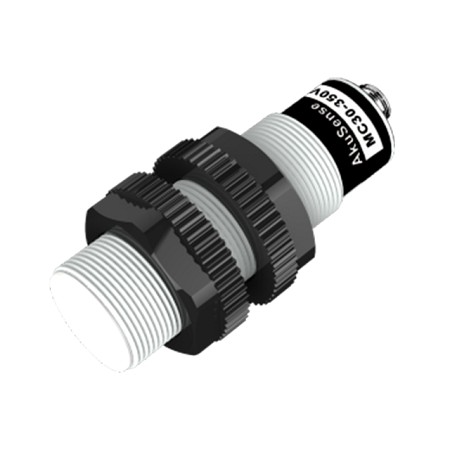

    MC30 Ultrasonic Sensor

    MC30 ultrasonic sensors provide reliable position detection and are used for continuous distance measurement of solid, dust, and liquid materials. It has a measurement range of 250...6000mm.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün

    MC30 ULTRASONIC SENSOR

    MC30 ultrasonic sensors provide reliable position detection and are used for continuous distance measurement of solid, dust, and liquid materials.

    Contactless detection occurs independently of the object's color, transparency, surface hardness, or brightness level.

    In environments with dust, dirt, or mist, the sensor reliably and accurately detects objects.

    Ultrasonic sensors are especially space-saving for use in areas with limited working space.

    Product variants include devices with programmable circuit outputs and analog outputs.

    The output function, circuit point, and measurement range adjustment are achieved by connecting the teaching input to the voltage supply (line teaching).

    Analog signal outputs (0-5vdc, 0-10vdc, 4-20ma), NPN, PNP, TTL signal, and control outputs are available.

    Operating Temperature -20°C...+70°C
    Electrical Connection M12 4-pin socket
    Protection Class IP67
    Repeatability Accuracy 2.0%
    Linearity ±%0.25
    Supply Voltage 15-30Vdc ±10%, 12-24Vdc ±10%
    Signal Output NPN, PNP, 4-20 mA, 0-5 Vdc, 0-10 Vdc
    Opening Angle ±7°
    Measurement Distance 250...3500mm, 350...6000mm
