    MD18 Ultrasonic Sensor

    MD18 ultrasonic sensors provide reliable position detection and are used for continuous distance measurement of solid, powder, and liquid materials. It has a measurement range of up to 400mm.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

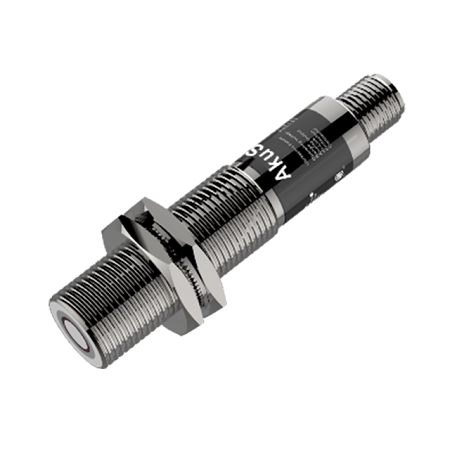

    MD18 ULTRASONIC SENSOR

    MD18 ultrasonic sensors provide reliable position detection and perform continuous distance measurement of solid, powder, and liquid materials.

    Contactless detection occurs independently of the object's color, transparency, surface durability, or brightness level.

    The sensor reliably detects objects even in environments with dust, dirt, or mist.

    It features an IO-Link connection interface.

    Synchronization or multiplex mode for simultaneous use of up to 40 sensors, increasing flexibility and process reliability.

    The product range includes devices with programmable circuit outputs and analog outputs.

    The output function, switching point, and measurement area adjustment are realized by connecting the teach-in input to the voltage supply (line teach-in).

    Ultrasonic sensors are particularly space-saving for use in areas with limited working space.

    The product range includes devices with programmable circuit outputs and analog outputs.

    The output function, switching point, and measurement area adjustment are realized by connecting the teach-in input to the voltage supply (line teach-in).

    Resolution 0.1 mm
    Operating Temperature -40°C ... +80°C
    Electrical Connection M12 5-Pin Socket
    Protection Class IP67
    Repeatability 2.0%
    Linearity ±5 mm
    Power Supply Voltage 18-30Vdc ±10%
    Signal Output 0-10 Vdc
    Connection Interface IO-Link 1.0
    Measurement Distance 50...400mm
