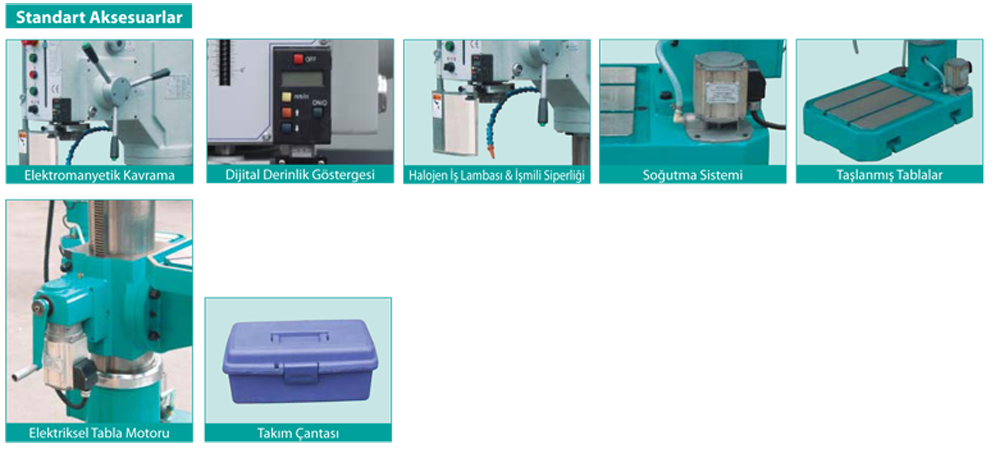

    JETCO JGDP-50 GEAR DRILLING MACHINE STANDARD ACCESSORIES

    Electromagnetic chuck, Digital depth gauge, Halogen work lamp & shield, Cooling system, Ground tables, Electric table motor, Toolbox

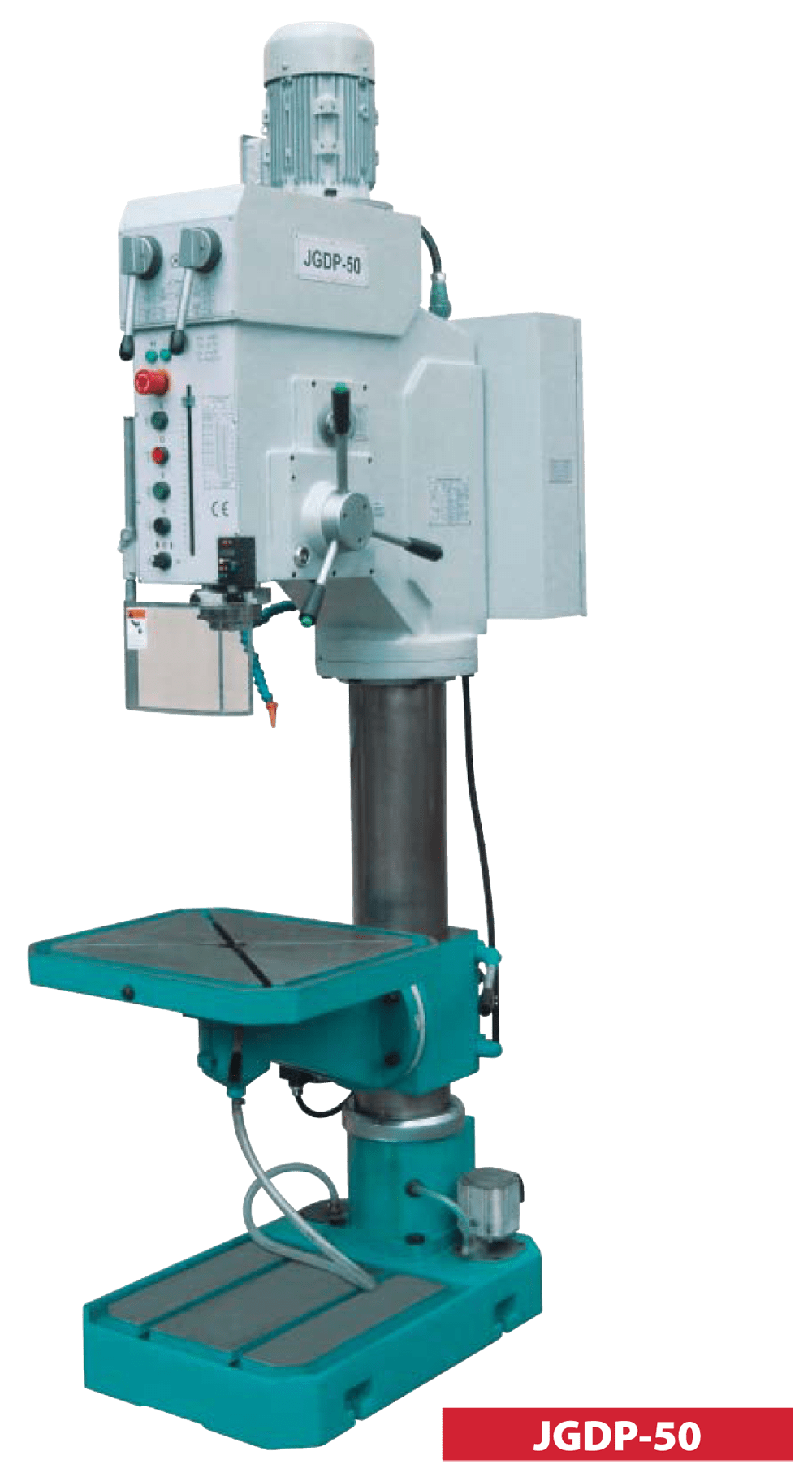

    TECHNICAL SPECIFICATIONS UNIT JETCO JGDP-50 GEAR DRILLING MACHINE
    Maximum Drilling Diameter mm 50
    Maximum Tapping Capacity   M30
    Maximum Stroke mm 240
    Distance Between Spindle and Column mm 380
    Distance Between Spindle Nose and Table Surface mm 585
    Distance Between Spindle Nose and Base mm 1170
    Maximum Table Travel mm 530
    Table Angular Travel   45+°, 45-°
    Spindle Taper   MT4
    Spindle Speed Range   12
    Spindle Speed Range rpm 48–2050
    Spindle Feed Stages   3
    Spindle Feed Rates   0.12, 0.23, 0.4
    Table Dimensions mm 600 x 500
    Effective Table Working Area mm 445 x 435
    Column Diameter mm 180
    Main Motor Power kW 3
    Machine Dimensions mm 1010 x 600 x 2350
    Net/Gross Weight kg 670 / 730
