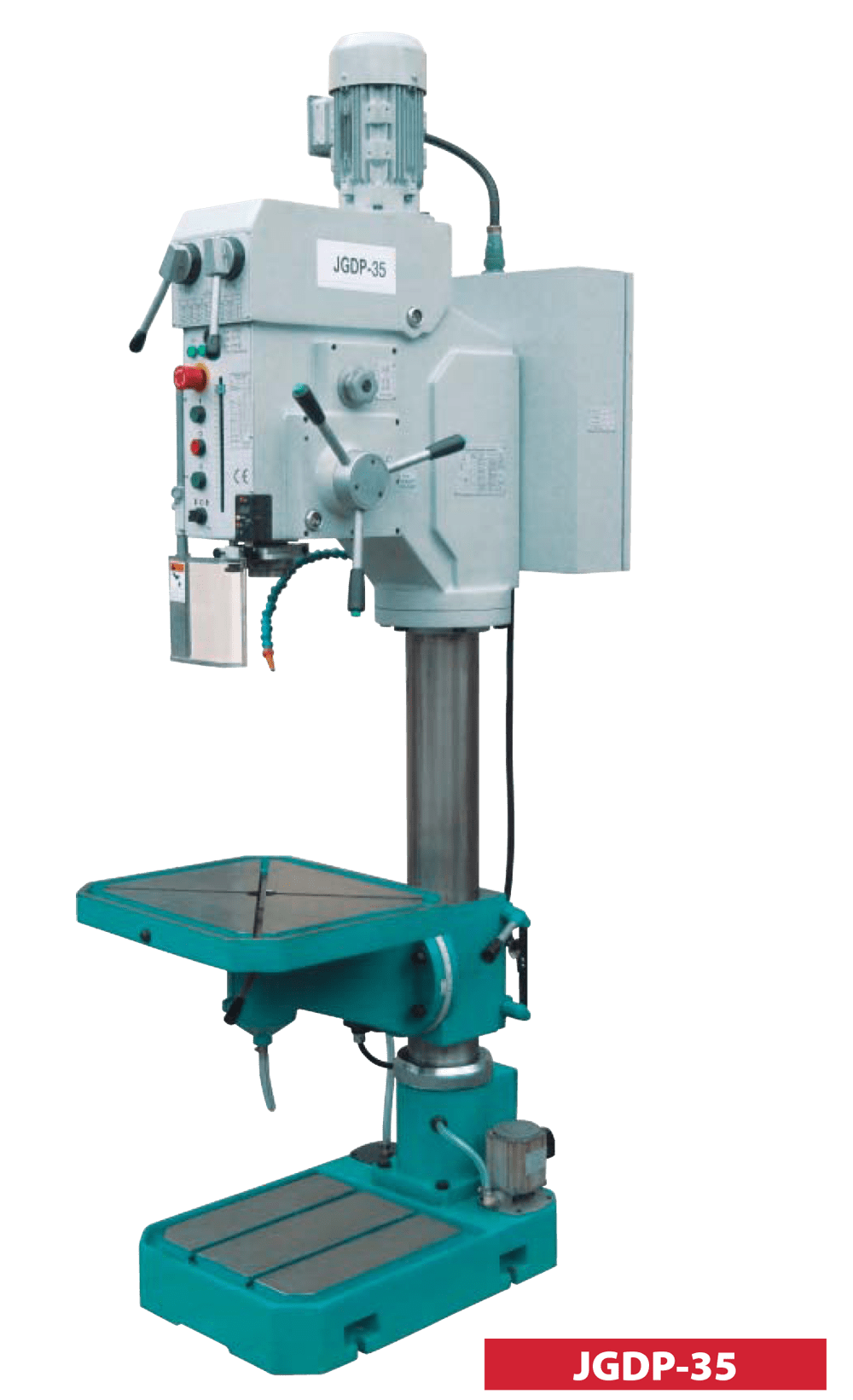

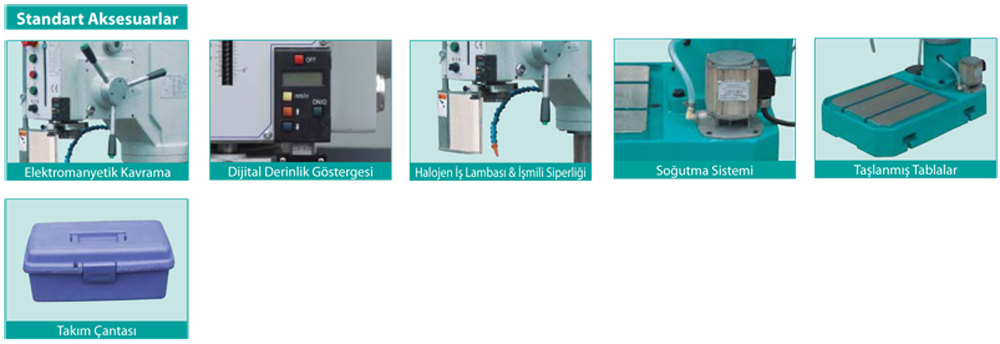

    JETCO JGDP-35 GEAR DRILLING MACHINE STANDARD ACCESSORIES

    Electromagnetic chuck, Digital depth gauge, Halogen work lamp & shield, Cooling system, Ground tables, Toolbox

    TECHNICAL SPECIFICATIONS UNIT JETCO JGDP-35 GEAR DRILLING MACHINE
    Maximum Drilling Diameter mm 35
    Maximum Tapping Capacity   M22
    Maximum Stroke mm 190
    Distance Between Spindle and Column mm 360
    Distance Between Spindle Nose and Table Surface mm 615
    Distance Between Spindle Nose and Base mm 1195
    Maximum Table Travel mm 550
    Table Angular Travel   .+45°, -45°
    Spindle Taper   MT4
    Spindle Speed Range   9
    Spindle Speed Range rpm 72–2580
    Spindle Feed Stages   3
    Spindle Feed Rates   0.1, 0.2, 0.3
    Table Dimensions mm 570 x 480
    Effective Table Working Area mm 410 x 395
    Column Diameter mm 140
    Main Motor Power kW 2
    Machine Dimensions mm 1000 x 650 x 2220
    Net/Gross Weight kg 565 / 615
