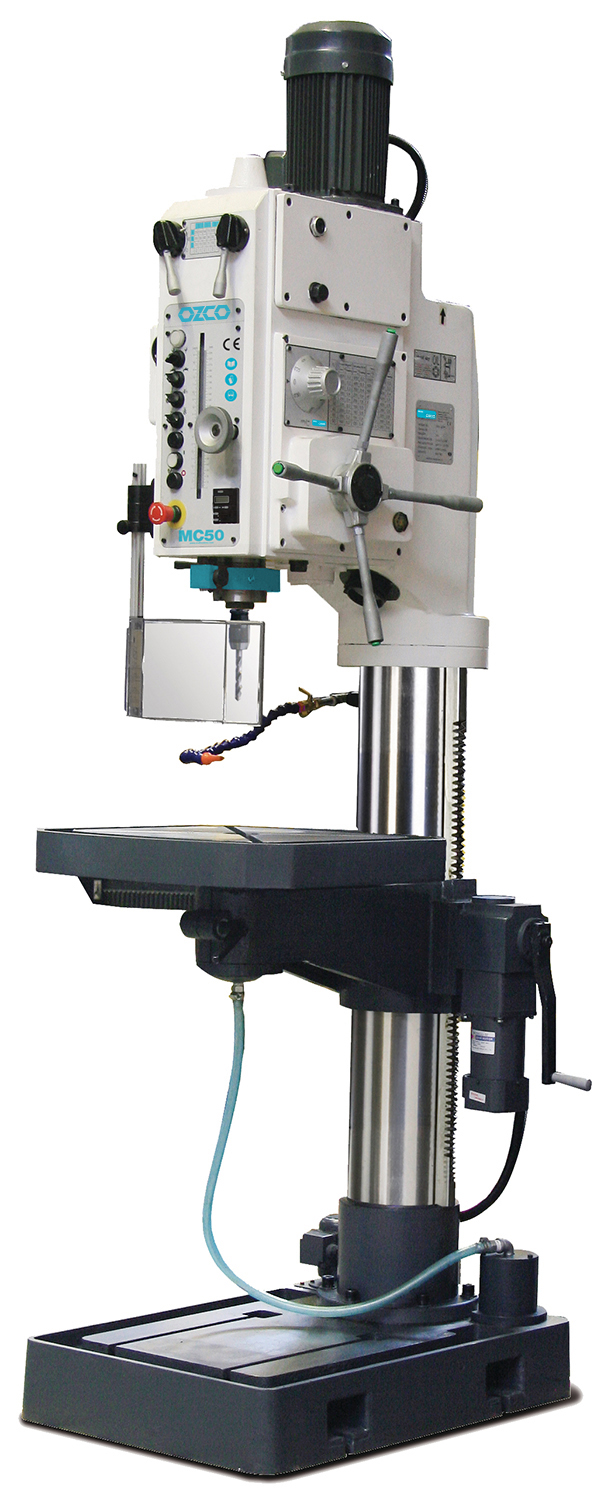

    MC50 Gearbox Drill Press

    The MC50 Gearbox Drill Press provides high precision and safety with its powerful cast body, electromagnetic clutch spindle feed, and motorized table. It offers a structure that is CE compliant, can rotate 360°, and swivels ±90° around the column.

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

    MC50 GEARBOX DRILL PRESS

    Heavy cast body

    200mm column diameter

    Electromagnetic clutch spindle feed

    Adjustable height safety switch guard

    Digital depth indicator

    Guide pull mode

    Motorized table

    Lighting

    Cooling system

    CE compliant

    High-quality casting, solid structure

    360˚ rotation around its axis, ±90˚ rotation around the column

    600x600mm dimensions

    DELIVERY CONTENT

    MK4-B16 morse taper

    3-16mm B16 chuck

    Accessories

    OPTIONAL ACCESSORIES

    110104: MK4-B16 drill morse taper

    150200: Drill vice 200 mm

    Motor Power 3.0 kW, 400 V
    Operation Type With gearbox
    Drilling Capacity 50 mm
    Guide Capacity M42
    Spindle Taper MK4
    Spindle Stroke 230 mm
    Spindle to Column Distance 375 mm
    Spindle to Table Distance 800 mm
    Spindle to Base Distance 1300 mm
    Column Diameter 200 mm
    Speed 54-2090 RPM
    Step 18
    Table Dimensions 600x600 mm
    Base Dimensions 600x860 mm
    Spindle Feed 0.05-0.3 mm/rev (6 steps)
    Cooling Pump Power 40 W
    Cooling Tank Capacity 5 L
    Machine Dimensions (LxWxH) 1016x610x2454 mm
    Packaging Dimensions 2580x750x1135 mm
    Net Weight 900 kg
