    ET4420

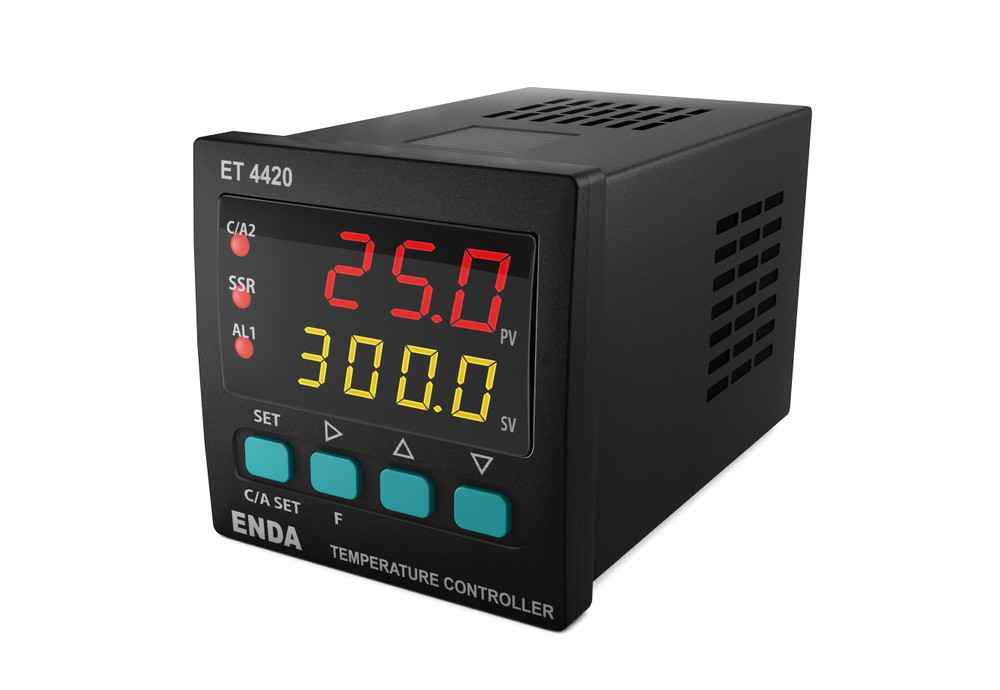

    48x48 mm Sized, Selectable PT-100 or Thermocouple Input, SSR + 2 Relay Outputs, PID Temperature Control Device

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

    ET4420

    Selectable dual set value input

    Selectable sensor types (Pt-100, J, K, L, T, S, R)

    Automatic calculation of PID parameters (SELF TUNE)

    Three assignable functions for digital input

    Three assignable functions for F function key

    Soft-Start feature

    Selectable SSR control output

    C/A2 relay output, usable as second alarm or temperature control output

    A1 relay output, usable as first alarm or PID cooling output

    Selectable Heating/Cooling control

    Offset feature for input

    Selectable relay positions or periodic and automatic periodic operation for probe failure

    Communication via RS-485 ModBus protocol

    CE marked according to EN standards

    Ambient/Storage Temperature 0...50 °C / -25...70 °C
    Relative Humidity Up to 80% at 31°C, then linearly decreasing to 50% at 40°C
    Protection Class According to EN 60529 standard: Front panel: IP65, Rear panel: IP20
    Height Up to 2000m
    Power Supply Voltage 90-250V AC 50/60Hz or 10-30V DC / 8-24V AC
    Power Consumption 5VA
    Connection Screw terminal block
    Scale Pt-100 resistance thermometer -199.9...600.0 °C / -200...600 °C
    Fe-Const (J) thermocouple -30...600 °C / -30.0...600.0 °C
    NiCr-Ni (K) thermocouple -30...1300 °C / -30.0...-999.9 °C
    Fe-CuNi (L) thermocouple -30...600 °C / -30.0...-600.0 °C
    Cu-CuNi (T) thermocouple -30...400 °C / -30.0...-400.0 °C
    Pt10Rh-Pt (S) thermocouple -40...1700 °C
    Pt13Rh-Pt (R) thermocouple -40...1700 °C
    Accuracy ±%0.5 (full scale) ±1 digit (for thermocouples), ±%0.2 (full scale) ±1 digit (for Pt-100 resistance thermometer)
    Line Resistance Maximum 100ohm
    C/A2 Output Relay: 250V AC, 8A (for resistive load), NO+NC control or Alarm2 output selectable
    A1 Output Relay: 250V AC, 8A (for resistive load), NO (Alarm1 and Cooling control output selectable)
    SSR Output 24V, 20mA
    Relay Life No load 30,000,000 switching; 250V AC, 2A resistive load 300,000 switching
    Control Mode Single set-point and alarm control
    Control Method On-Off, P, PI, PD, PID (selectable)
    A/D Converter 12 bit
    Sampling Time 100ms
    Proportional Band Adjustable between 0.0% and 100.0%. Pb=%0.0 will select On-Off control
    Control Period Adjustable between 1 and 250 seconds
    Hysteresis Adjustable between 1 and 50 °C/F
    Output Power Adjustable between 0% and 100% of the set value
    Mounting Type Mounted on TH 35 type rail
    Dimensions G48xY48xD87 mm
    Weight Approximately 250g (packed)
    Enclosure Material Self-extinguishing plastics used
