    ET4430

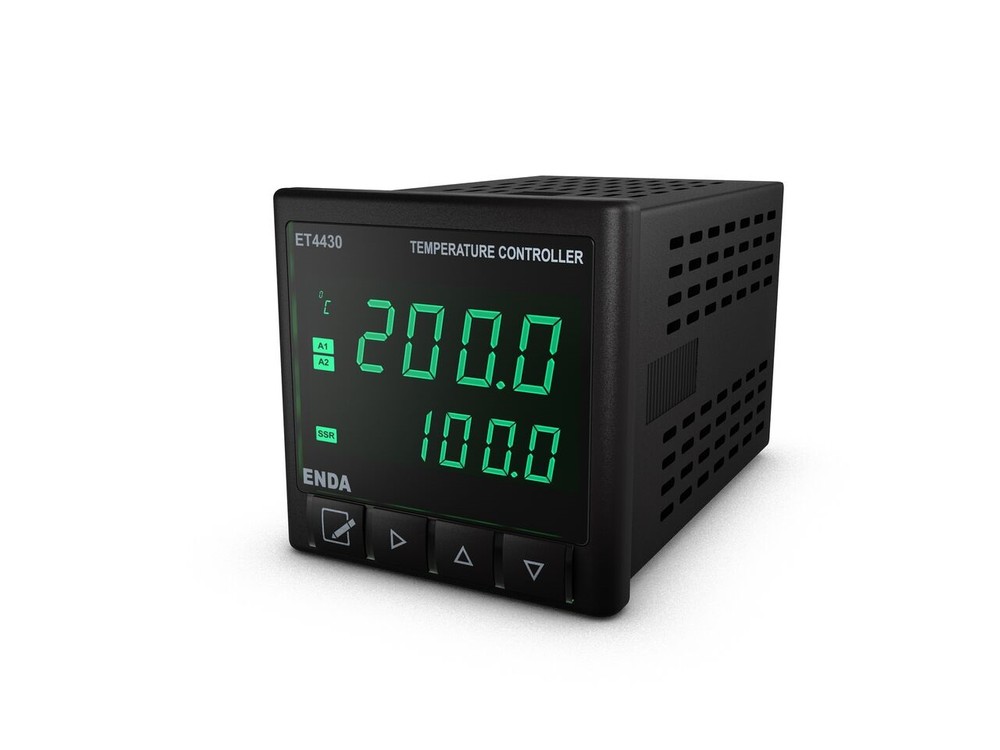

    48x48 mm sized, with LCD screen, selectable PT-100 or Thermocouple input, SSR + 2 Relay Outputs, PID Temperature Controller.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

    ET4430

    2x4 digit LCD display

    Selectable dual set point entry

    Selectable PT100 and thermocouple types

    Automatic PID parameter calculation (SELF TUNE)

    Three different features assignable to digital inputs

    Three different features assignable to the F function key

    Soft-Start feature

    Selectable SSR control output

    Second Alarm or temperature control output as C/A2 relay output

    First Alarm output or PID cooling output as A1 relay output

    Selectable Heating/Cooling control

    Offset feature for inputs

    Ability to select relay positions or periodic and automatic periodic operation in case of probe failure

    Communication via RS-485 ModBus protocol

    CE marked according to EN standards

    Environment/Storage Temperature 0...50 °C / -25...70 °C
    Relative Humidity Up to 80% at 31 °C, then decreases linearly to 50% at 40 °C
    Protection Class Front panel: IP65, Rear panel: IP20 according to EN 60529 standard
    Height Max 2000m
    Supply Voltage 230V AC +10% -20% 50/60Hz or 10-30V DC / 8-24V AC
    Power Consumption 5VA
    Connection Socket terminal
    Scale Fe-Const (J) thermocouple -30...600 °C / -30.0...600.0 °C
    NiCr-Ni (K) thermocouple -30...1300 °C / -30.0...-999.9 °C
    Fe-CuNi (L) thermocouple -30...600 °C / -30.0...-600.0 °C
    Cu-CuNi (T) thermocouple -30...400 °C / -30.0...-400.0 °C
    Pt10Rh-Pt (S) thermocouple -40...1700 °C
    Pt13Rh-Pt(R) thermocouple -40...1700 °C
    Accuracy ±0.5% (full scale) ±1 digit (for thermocouples), ±0.2% (full scale) ±1 digit (for Pt-100 resistance thermometer)
    Wire Resistance Max 100 ohm
    C/A2 Output Relay: 250V AC, 8A (for resistive load), NO+NC control or Alarm2 output selectable
    A1 Output Relay: 250V AC, 8A (for resistive load), NO (Alarm1 and Cooling control output selectable)
    SSR Output 24V, 20mA
    Relay Lifetime 30,000,000 switching cycles without load; 250V AC, 2A resistive load 300,000 switching cycles
    Control Type Single setpoint and alarm control
    Control Method On-Off, P, PI, PD, PID (selectable)
    A/D Converter 14 bits
    Sampling Time 100ms
    Proportional Band Adjustable between 0.0% and 99.9%. If Pb=0.0, On-Off control is selected
    Control Period Adjustable between 1 and 125 seconds
    Hysteresis Adjustable between 1 and 50 °C/F
    Output Power Adjustable between 0% and 100% of the setpoint
    Mounting Method To be mounted on a panel with compression
    Dimensions G48xY48xD87 mm
    Weight Approximately 250g (with packaging)
    Box Materials Self-extinguishing plastics used
