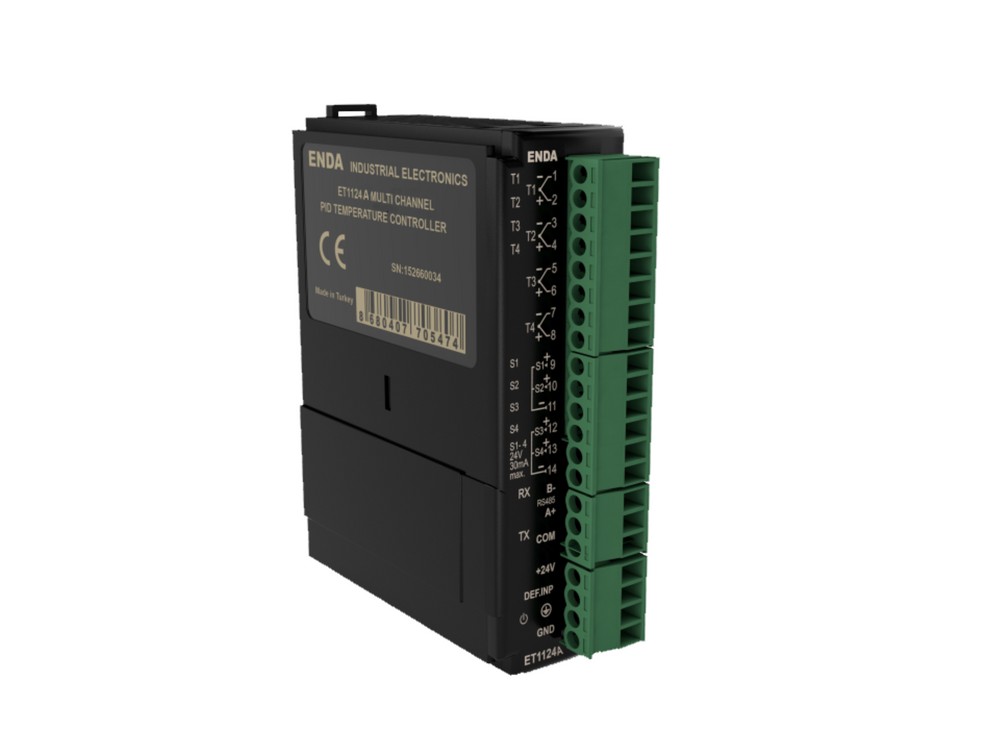

    ET1124A

    29x90 mm Sized, Modbus Communicating, 4 Selectable Thermocouple or PT 100 Inputs, 4 SSR Outputs PID Control Device.

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

    ET1124A

    Mountable box for rail installation

    Modbus address and baud rate can be set via dip switch, and the device can be reset to factory settings if desired.

    Selectable dual set value input capability

    Selectable thermocouple (J, K, L, T, S, R) or two-wire PT100 sensor type at the time of order

    Automatic calculation of PID parameters (SELF TUNE)

    Ability to disable control outputs (for measurement purposes)

    Four SSR temperature control outputs

    Ability to manually control SSR outputs

    Soft-Start feature

    Communication via RS-485 ModBus protocol

    Selectable Heating/Cooling control

    Offset feature for inputs

    Ability to select relay positions in case of probe failure or periodic operation

    Programming via ModBus

    Software update feature via RS-485

    CE marked according to EN standards

    Ambient/Storage Temperature 0...50 °C / -25...70 °C
    Relative Humidity Up to 80% at 31 °C, then linearly decreasing to 50% at 40 °C
    Protection Class IP20 according to EN 60529 standard
    Altitude Up to 2000m
    Power Supply 24V DC ±20%
    Power Consumption Maximum 5VA
    Connection Socket terminal block
    Scale Pt-100 resistance thermometer -199.9...600.0 °C / -200...600 °C
    Fe-Const (J) thermocouple -30.0...600.0 °C / -30...600 °C
    NiCr-Ni (K) thermocouple -30.0...999.9 °C / -30...1300 °C
    Fe-CuNi (L) thermocouple -30.0...600.0 °C / -30...600 °C
    Cu-CuNi (T) thermocouple -30.0...400.0 °C / -30...400 °C
    Pt10Rh-Pt (S) thermocouple -40...1700 °C
    Pt13Rh-Pt (R) thermocouple -40...1700 °C
    Accuracy Pt-100 (resistance thermometer): ±0.2% (of full scale) ±1 digit
    Thermocouples: ±0.5% (of full scale) ±1 digit
    Wire Resistance Maximum 100ohm for thermocouples. Maximum 1ohm for Pt-100
    S1...S4 SSR Control Output Four channels, 24VDC ±20% maximum 30mA short-circuit protected SSR control output
    Control Type Different set-point control for four zones
    Control Method On-Off, P, PI, PD, PID
    A/D Converter 14 bits
    Sampling Time 200ms
    Proportional Band Adjustable between 0.0% and 100.0%. Pb=0.0 means On-Off control is selected
    Control Period Adjustable between 1 and 125 seconds
    Hysteresis Adjustable between 1 and 50 °C/F
    Output Power Adjustable between 0% and 100% of the set value
    Mounting Type Mountable on rail
    Dimensions G29xY90xD64 mm
    Weight Approximately 200g (with packaging)
    Enclosure Material Self-extinguishing plastics used
