    ESAA1

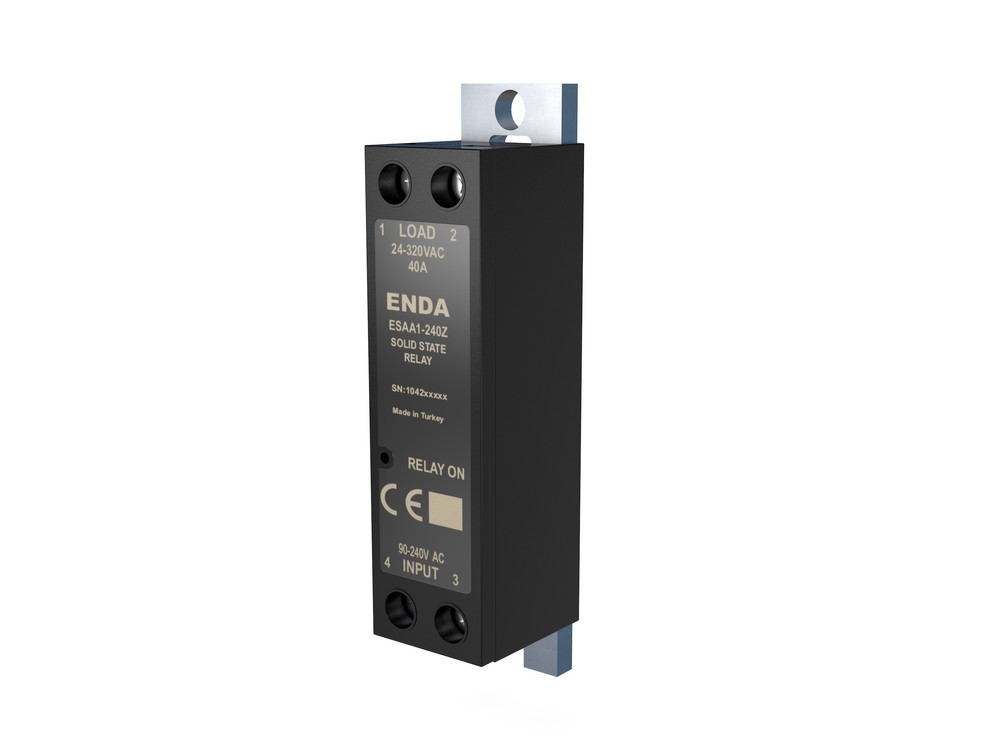

    Emos Group Industrial Electronics Industrial Automation and Control Solid State Relays ESAA1
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps

    ESAA1

    Single-phase 90-240V AC Input Voltage 24-320V AC or 50-480V AC Load Voltage Zero/random crossing

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

    ESAA1

    12-25-40A AC load current

    320V AC or 480V AC load voltage

    90-240V AC input voltage

    LED indicator for input voltage

    Switching at zero/random crossing of AC voltage

    Applicable to three-phase loads

    Varistor protection against peak voltages

    CE marked according to EN standards

    Operating/Storage Temperature -25...60 °C / -30...100 °C
    Relative Humidity Up to 40 °C 50% humidity, increasing as temperature decreases to 90% at 20 °C
    Protection Class IP20 according to EN 60529 standard
    Altitude Up to 1000m
    Input Voltage 90-240V AC
    Conduction Voltage >75V AC
    Cut-off Voltage <6V AC
    Input Current <8mA AC
    Conduction Time Max. 1 Cycle
    Cut-off Time Max. 2 Cycles
    LED Indicator LED lights up if conduction voltage >75V AC
    Load Current (Arms) ESAA1-212X: 12
    ESAA1-225X: 25
    ESAA1-240X: 40
    ESAA1-425X: 25
    ESAA1-440X: 40
    Load Voltage (Vrms) ESAA1-212X, ESAA1-225X, and ESAA1-240X: 24-320
    ESAA1-425X, ESAA1-440X: 50-480
    Frequency (Hz) 50-60
    Mounting Type Mounted to the panel with M4 screws
    Dimensions W24 x H101 x D29 mm
    Weight 95g (including packaging) for ESDA1-2xx/4xxX
    Housing Materials Self-extinguishing plastics used
