    Emos Group Industrial Electronics Industrial Automation and Control Solid State Relays ERAA2
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps

    ERAA2

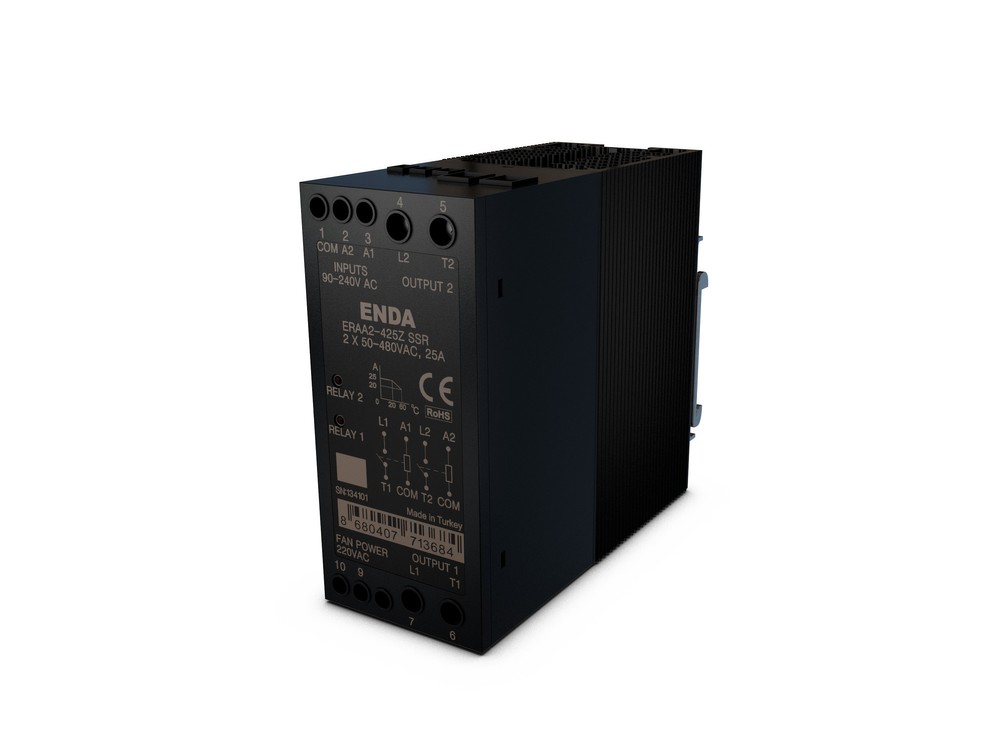

    Single-phase, 2 x Solid State Relay 90-240V AC Input Voltage 24-320V AC or 50-480V AC Load Voltage

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

    ERAA2

    2x25 and 2x40A AC load current

    280V AC or 480V AC load voltage

    90-240V AC input voltage

    LED indicator for input voltage

    Switching at zero crossing of AC voltage

    Applicable for three-phase loads

    Varistor protection for peak voltages

    CE certified according to EN standards

    Ambient/Storage Temperature -25...60 ºC / -30...100 ºC
    Relative Humidity Operates up to 50% at 40 ºC, increases as temperature decreases, operates at 90% humidity at 20 ºC
    Protection Class According to EN 60529 standard: IP20
    Altitude Maximum 1000m
    Input Voltage 90-240V AC
    Transmission Voltage >75V AC
    Cutoff Voltage <6V AC
    Input Current <8mA AC
    Transmission Time Maximum 1 Period
    Cutoff Time Maximum 2 Periods
    LED Indicator LED lights up when transmission voltage is >75V AC
    Load Current (Arms) ERAA2-225Z: 2x25
    ERAA2-240Z-F: 2x40
    ERAA2-425Z: 2x25
    ERAA2-440Z-F: 2x40
    Load Voltage (Vrms) ERAA2-225Z and ERAA2-240Z-F: 24-280
    ERAA2-425Z and ERAA2-440Z-F: 50-480
    Frequency (Hz) 50-60
    Mounting Type Mounted on TH35 type rail
    Dimensions ERAA2-225Z and ERAA2-425Z: W46xH100xD117 mm
    ERAA2-240Z-F and ERAA2-440Z-F: W46xH110xD117 mm
    Weight ERAA2-225Z and ERAA2-425Z: 475g (including packaging)
    ERAA2-240Z-F and ERAA2-440Z-F: 500g (including packaging)
    Enclosure Materials Self-extinguishing plastics used
