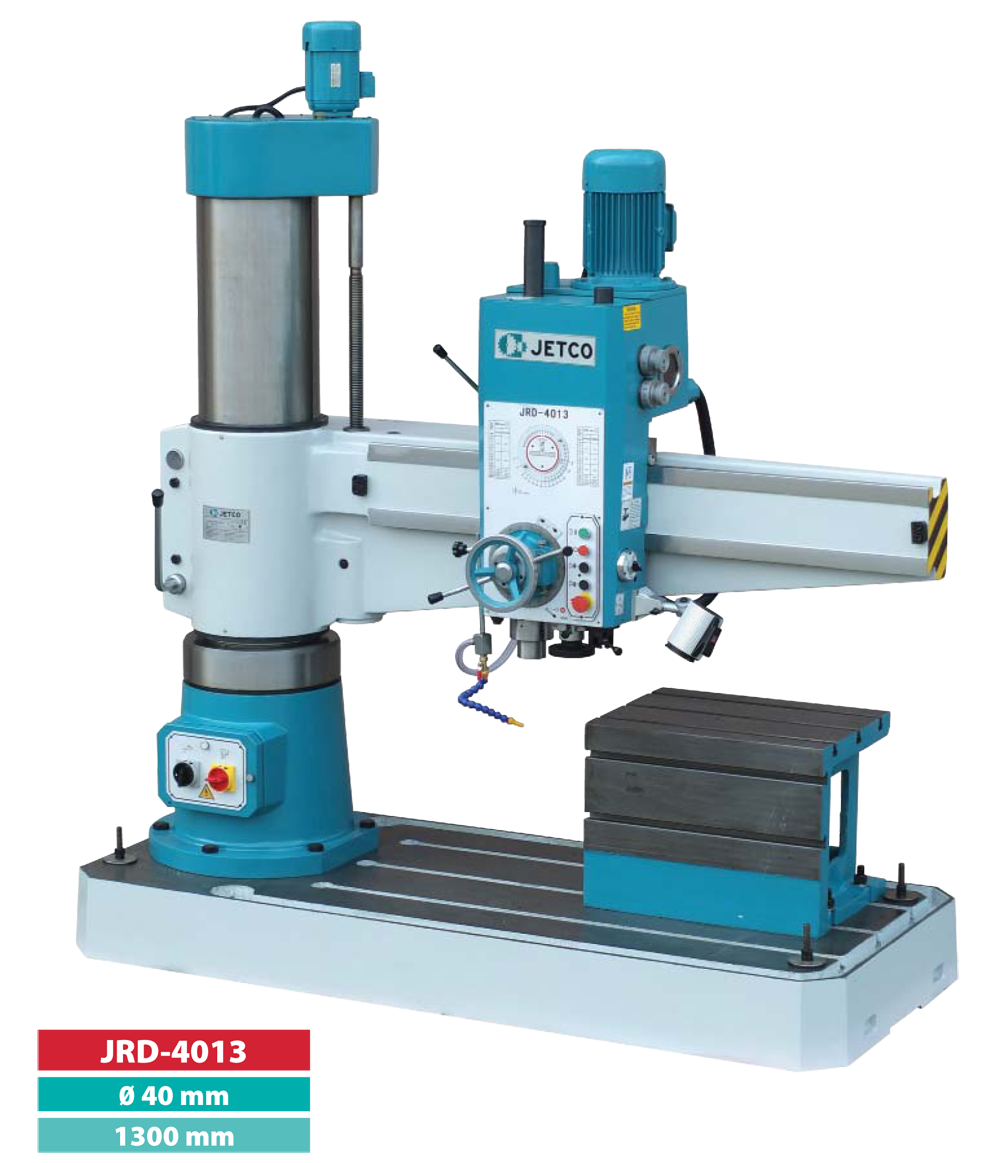

    JETCO JRD 4013 RADIAL DRILLING MACHINE – CAPACITY:

    40 mm radial drilling machine. Arm length: 1300 mm.

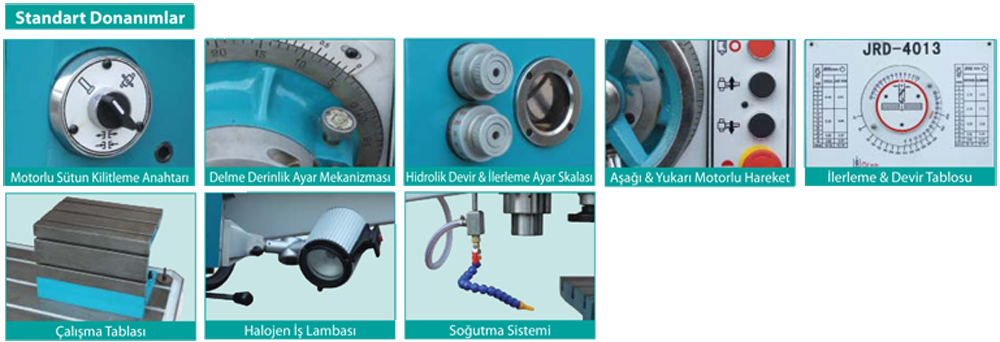

    JETCO JRD 4013 RADIAL DRILLING MACHINE – GENERAL FEATURES:

    Motorized column locking device, Drilling depth adjustment mechanism, Hydraulic speed & feed adjustment scale, Motorized up & down movement, Feed & speed chart, Worktable, Halogen work lamp, Cooling system

    TECHNICAL SPECIFICATIONS UNIT JETCO JRD 4013 Radial Drilling Machine
    Table Dimensions mm 600 x 450 x 450
    Spindle Travel mm 280
    Max. Drilling Diameter mm 40
    Distance Between Spindle Axis and Column mm 30–1300
    Distance Between Spindle Nose and Table Surface mm 300–1120
    Spindle Taper Morse 4
    Spindle Speed Range rpm 32–2500
    Number of Spindle Speeds steps 16
    Spindle Feed Range mm/rev 0.10–1.25
    Number of Spindle Feeds steps 8
    Horizontal Travel of Gearbox mm 1000
    Spindle Motor Power kW 3
    Net Weight kg 2500
    Overall Dimensions mm 2100 x 900 x 2490
