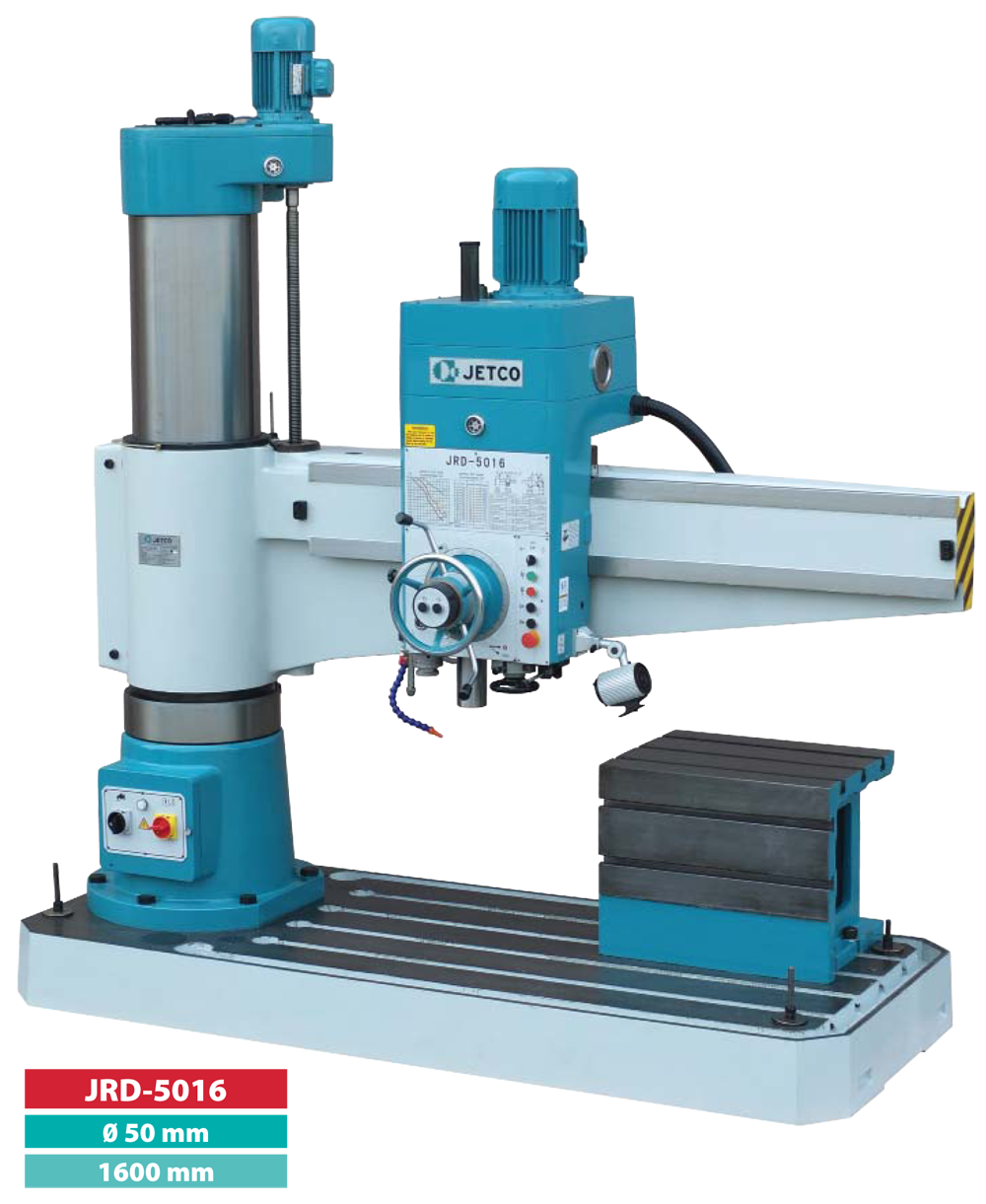

    JETCO JRD 5016 RADIAL DRILLING MACHINE – CAPACITY:

    50 mm radial drilling machine. Arm length: 1600 mm.

    JETCO JRD 5016 RADIAL DRILLING MACHINE – GENERAL FEATURES:

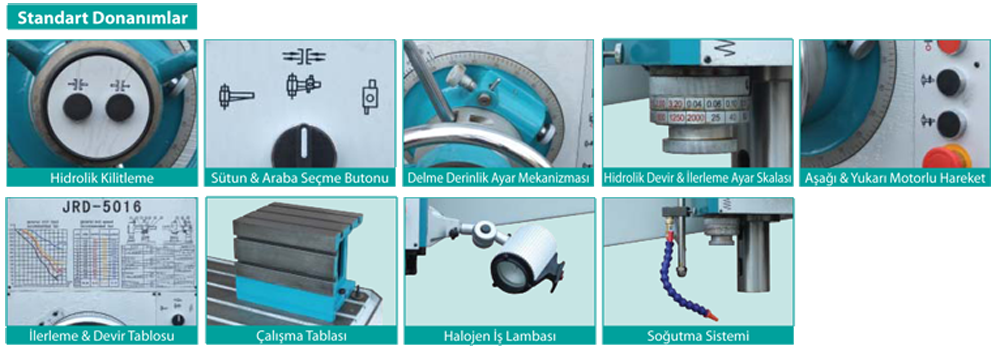

    Hydraulic locking, Column & carriage selector button, Drilling depth adjustment mechanism, Hydraulic speed & feed adjustment scale, Motorized up & down movement, Feed & speed chart, Worktable, Halogen work lamp, Cooling system

    TECHNICAL SPECIFICATIONS UNIT JETCO JRD 5016 Radial Drilling Machine
    Table Dimensions mm 630 x 500 x 500
    Spindle Travel mm 315
    Max. Drilling Diameter mm 50
    Distance Between Spindle Axis and Column mm 350–1600
    Distance Between Spindle Nose and Table Surface mm 320–1220
    Spindle Taper Morse 5
    Spindle Speed Range rpm 25–2000
    Number of Spindle Speeds steps 16
    Spindle Feed Range mm/rev 0.04–3.20
    Number of Spindle Feeds steps 16
    Horizontal Travel of Gearbox mm 1250
    Spindle Motor Power kW 4
    Net Weight kg 3500
    Overall Dimensions mm 2500 x 1070 x 2840
