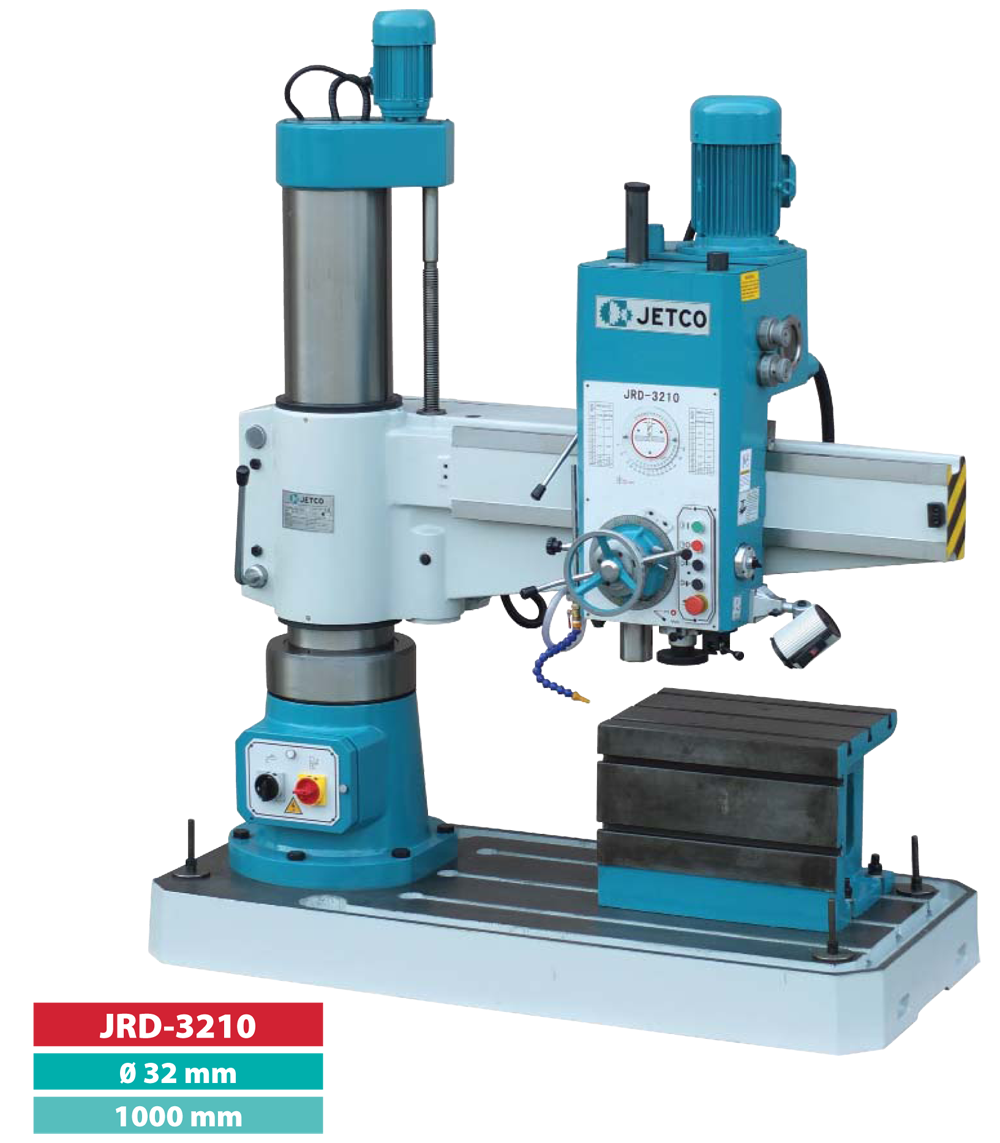

    JETCO JRD 3210 RADIAL DRILLING MACHINE – CAPACITY:

    32 mm radial drilling machine. Arm length: 1000 mm.

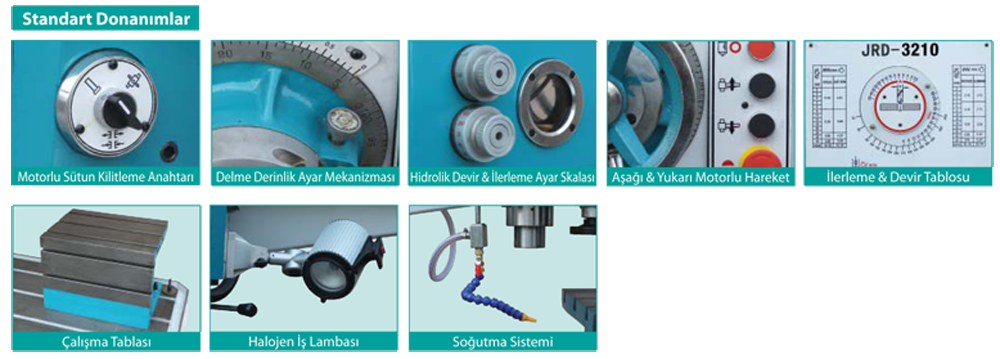

    JETCO JRD 3210 RADIAL DRILLING MACHINE – GENERAL FEATURES:

    Motorized column locking device, Drilling depth adjustment mechanism, Hydraulic speed & feed adjustment scale, Motorized up & down movement, Feed & speed chart, Worktable, Halogen work lamp, Cooling system.

    TECHNICAL SPECIFICATIONS UNIT JETCO JRD 3210 Radial Drilling Machine
    Table Dimensions mm 550 x 400 x 400
    Spindle Travel mm 280
    Max. Drilling Diameter mm 32
    Distance Between Spindle Axis and Column mm 30–1000
    Distance Between Spindle Nose and Table Surface mm 250–1000
    Spindle Taper Morse 4
    Spindle Speed Range rpm 32–2500
    Number of Spindle Speeds steps 16
    Spindle Feed Range mm/rev 0.10–1.25
    Number of Spindle Feeds steps 8
    Horizontal Travel of Gearbox mm 700
    Spindle Motor Power kW 2.2
    Net Weight kg 1600
    Overall Dimensions mm 1760 x 800 x 2300
