    VMM-C CNC Video Measuring Machine

    VMM-C CNC Video Measuring Machines offer a resolution of 0.0005 mm (0.5μm). They feature a maximum glass table size of 450x350 mm and are equipped with a 1/2” Color CCD Camera and Zoom Lens.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

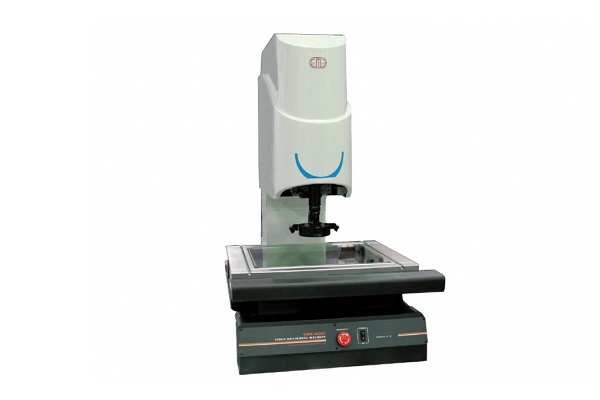

    VMM-C CNC VIDEO MEASURING MACHINE

    The VMM-C CNC Measuring Machine is a type of measuring instrument that utilizes CCD imaging. It magnifies the image of the workpiece into the software system and is used with advanced software for various measurement functions.

    It performs its function by using powerful software to conduct measurements for the dimensions, positions, and shapes of the measured parts, enabling microscopic inspection and quality control.

    It is widely and suitably used in measurement services across various industries such as electronics, instrumentation, and metering, at different levels of manufacturing or workshop inspection stations.

    Functionally used for cutting tools and gripping devices, precision machine components, precision hardware parts, electronic components, plastic and rubber products, semiconductor parts, punching components, the suspension industry,

    aviation, and also in colleges and universities, scientific research institutes, mold equipment, automotive, machinery assembly, etc.

    High-resolution 1/2" color CCD camera and zoom lens with sharp imaging,

    USB interface for linear encoder connection, compatible with professional measurement software;

    Optimal performance when run with CNC software featuring analysis capabilities on MS Windows.

    High positioning accuracy with servo motors on X, Y, and Z axes,

    High-quality granite base,

    Programmable LED lighting,

    Automatic geometric element recognition,

    Comfortable and easy operation via mouse and joystick (optional),

    Automatic multi-point measurement capability,

    Ability to use different measurement methods depending on the part’s condition,

    Easy and precise measurement of complex parts,

    CNC programming,

    Ability to define coordinate systems on the part and perform single or multiple CNC measurements using fixtures,

    Auto-focus capability on the Z-axis for depth measurement,

    Ability to enter individual tolerances for each measurement element on the part,

    SPC support within the software for creating tables and histograms and generating reports,

    Compatible with CAD-CAM software.

    Optional “auto zoom” feature can be added.

    Resolution 0.0005 mm (0.5 µm)
    Power Supply 110Vac - 220Vac 50/60Hz.
    Weight 201 kg, 223 kg, 321 kg
    Table Dimensions 450x280 mm, 500x300 mm, 606x486 mm
    Glass Table Size (mm) 450 x 350, 306 x 196, 350 × 250
    X Axis Travel 220 mm, 270 mm, 370 mm
    Y Axis Travel 120 mm, 170 mm, 270 mm
    Z Axis Travel (mm) 150 mm
    Measurement Software 2.5D Series
    Video System Zoom Lens: Magnification of Field Lens: 0.7x - 4.5x, CCD Camera: 1/2" Color CCD Camera, Adjustable Camera Illumination, Total Magnification: 23.5x - 148x, Object View: 11.1mm - 1.7mm
    Accuracy ( 3+L / 200 ) µm; L: measurement length (mm)
    Lighting System Adjustable LED
    Positioning Accuracy 0.001 mm (1 µm)
