    TF1 Non-Contact Linear Scale

    The TF1 Non-Contact Linear Scale operates on a non-contact and inductive measurement principle. It has the ability to measure at high speeds and features a 10 kHz refresh rate. With infinite mechanical life, it is resistant to magnetic fields and offers extremely high precision and resolution.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

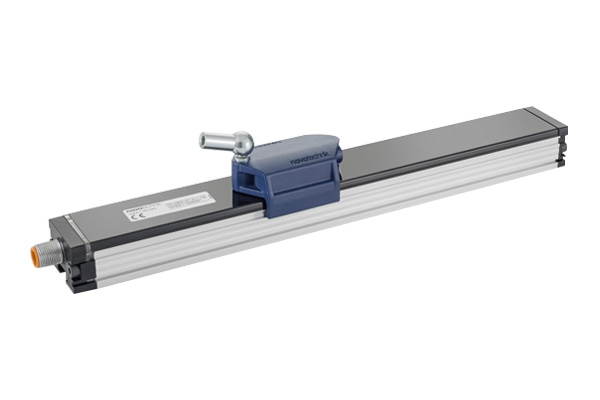

    TF1 NON-CONTACT LINEAR SCALE

    The TF1 Non-Contact Linear Scale features a non-contact inductive distance sensor.

    As it performs completely non-contact measurements, it has infinite mechanical life.

    It offers the ability to measure at high speeds with a 10 kHz refresh rate.

    It provides resolution values up to 10 μm and repeatability values up to 5 μm.

    It offers analog (0-10V, 4-20 mA) or digital (SSI, IO-Link, CANopen) output options.

    It is unaffected by magnetic fields.

    It is resistant to shocks and vibrations.

    It is immune to temperature changes: Temperature coefficient: < 15 ppm/K.

    It has an IP67 protection class rating.

    Resolution Analog: 10 μm up to 400 mm, 20 μm after 400 mm, SSI: 1 μm, 5 μm, or 10 μm, IO-Link: 1 μm
    Operating Temperature -40°C ... +85°C (CANopen: -40°C ... +75°C)
    Electrical Connection With cable or socket
