    TH1 Non-Contact Linear Scale

    It operates on a non-contact and magnetostrictive measurement principle. It is specially designed for integration into hydraulic cylinders. It offers infinite mechanical life, an optional float magnet suitable for liquid level measurement, and retains position information even during power outages.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

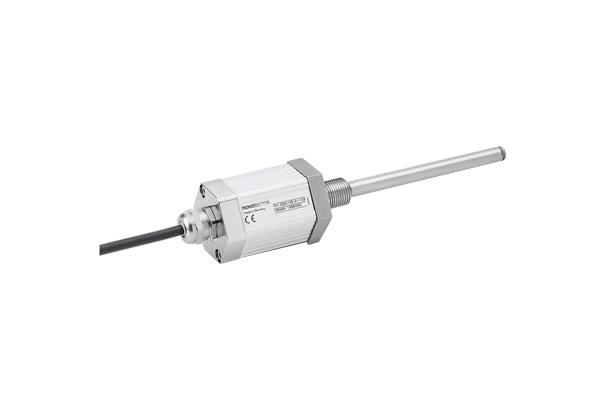

    TH1 NON-CONTACT LINEAR SCALE

    TH1 Non-Contact Linear Scale is a distance sensor that operates based on a non-contact magnetostrictive principle.

    As it performs completely non-contact measurements, it offers infinite mechanical life.

    Thanks to its rod-type body, it is specially designed for integration into hydraulic cylinders.

    There are float-shaped reading magnet options suitable for liquid level measurement.

    For cylinders, there are ring-shaped round reading magnet options available.

    It features absolute measurement, meaning it retains position information even during power outages.

    It offers resolution values up to 1 µm.

    Durable up to 350 bar.

    Available with analog (0-10V, 0-20 mA, 4-20 mA) or digital (SSI, IO-Link, Start-Stop-Impulse, CANopen) output options.

    O-ring sealing protection.

    Resistant to shock and vibrations.

    Not affected by temperature variations: Temperature Coefficient: < 15 ppm/K

    Protection class: IP 67 / IP 68

    Resolution Analog: 16 Bit, SSI: 1 µm, 5 µm or 10 µm, IO-Link: 1 µm or 5 µm, CANopen: 1 µm or 5 µm,
    Operating Temperature -40°C ... +80°C,
    Electrical Connection With cable or connector,
