    TP1 Non-Contact Linear Scale

    The TP1 Non-Contact Linear Scale performs measurements using a non-contact and magnetostrictive principle within a robust profile. It operates frictionlessly and offers infinite mechanical life. It retains position information during power outages. The scale is insensitive to dirt, dust, and moisture, making it suitable for operation in harsh industrial environments.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

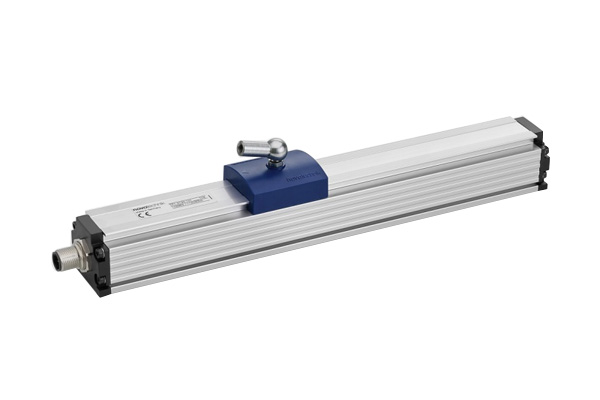

    TP1 NON-CONTACT LINEAR SCALE

    The TP1 Non-Contact Linear Scale is suitable for mobile and industrial applications.

    It features long-life sensors operating on a non-contact magnetostrictive principle.

    As it performs completely non-contact measurements, it has infinite mechanical life.

    Designed with a rod-type body, it can be integrated into hydraulic and pneumatic cylinders.

    It includes float-type reader magnet options for liquid level measurement.

    For cylinders, it includes ring-shaped circular reader magnet options.

    The movement speed of the reader magnet is unlimited.

    It retains position information during power outages.

    It operates up to 350 Bar and can withstand momentary high pressures up to 450 Bar.

    Analog output options are available.

    It offers high precision with accuracy up to 0.04%.

    Resolution Analog: 16 bit (Theoretically infinite), Incremental: 1 μm, 5 μm (For four-phase resolution, one phase)
    Operating Temperature -40°C ... +85°C (ambient temperature -40°C ... +105°C)
    Electrical Connection With cable or socket
