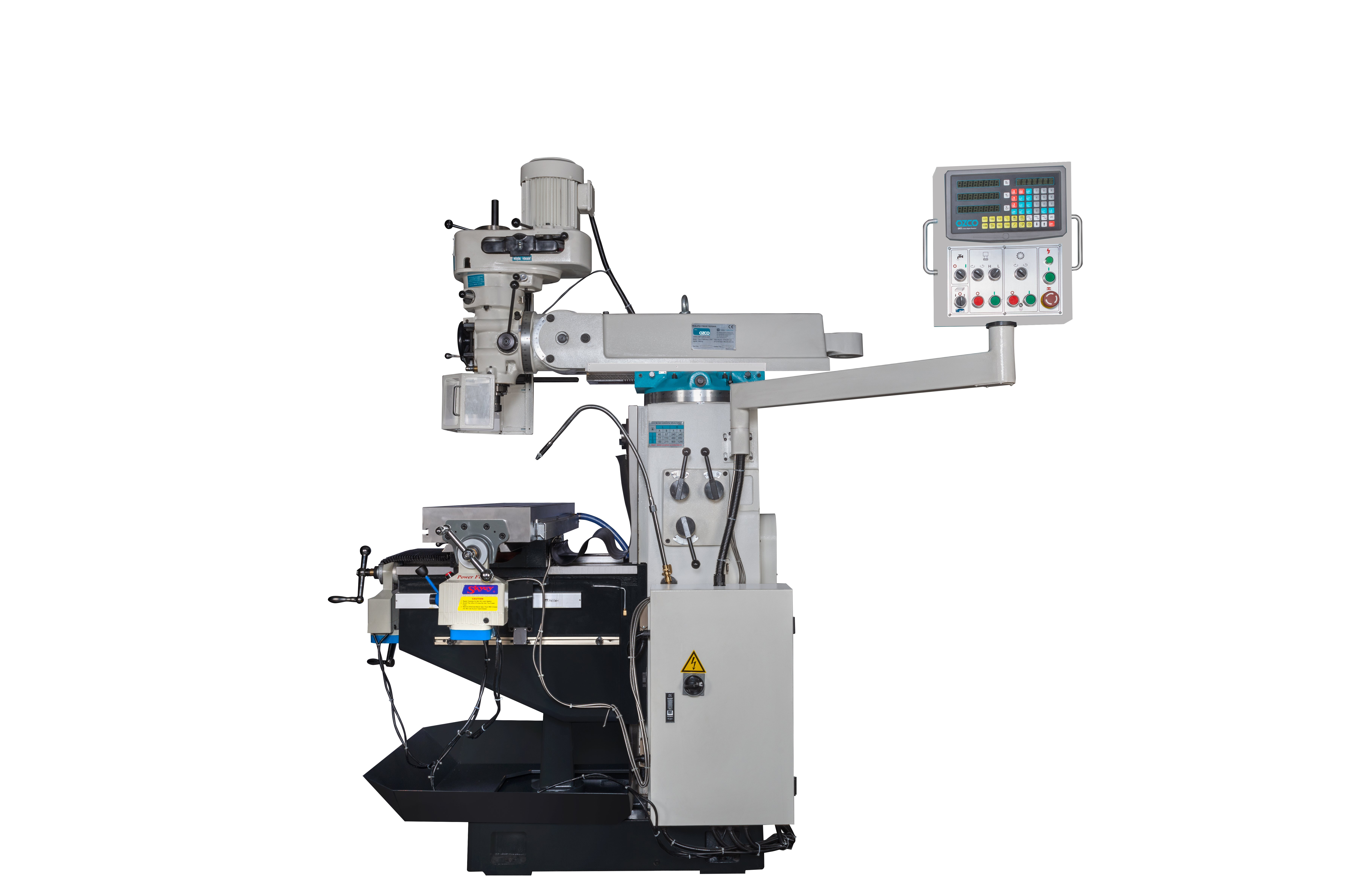

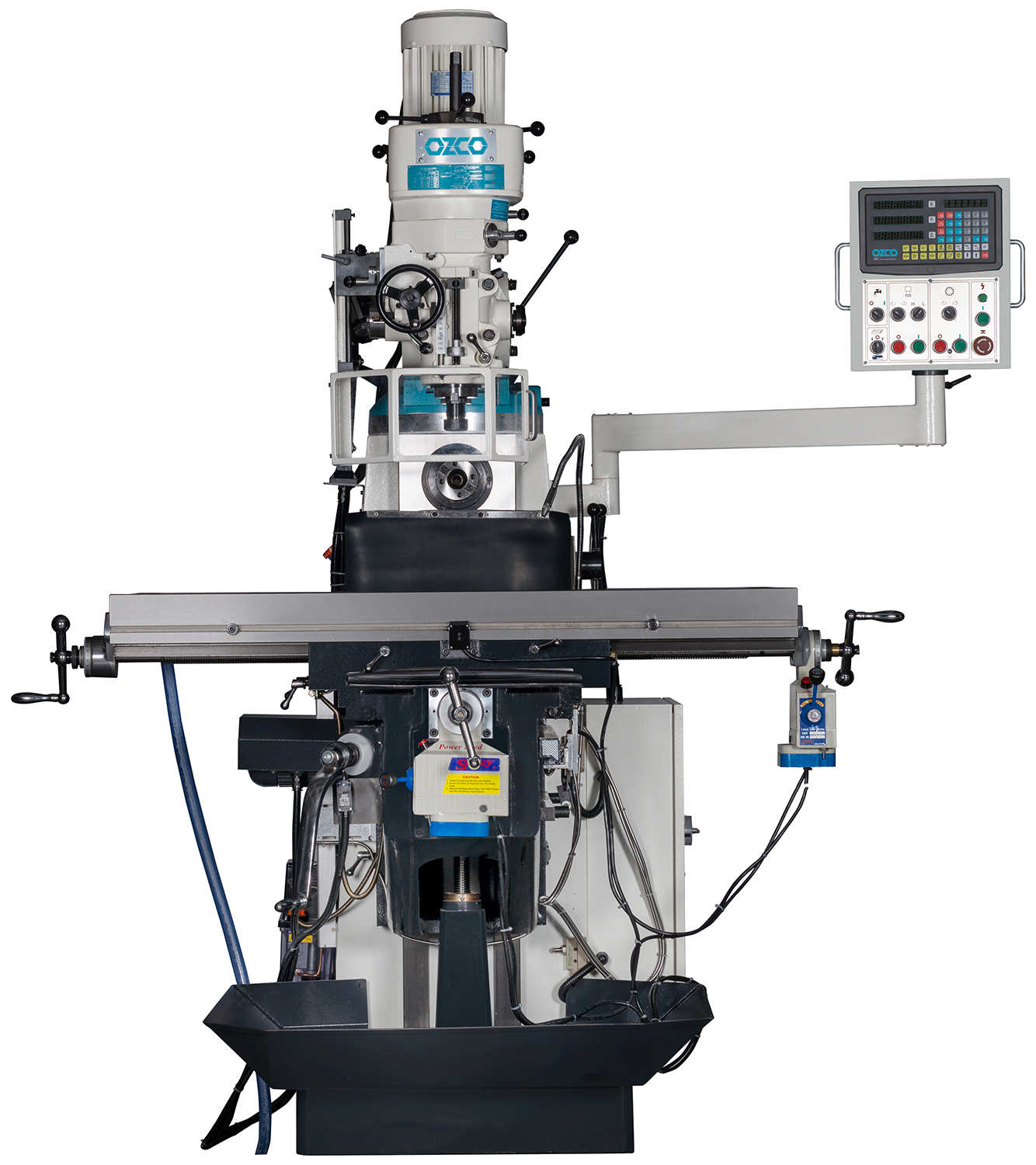

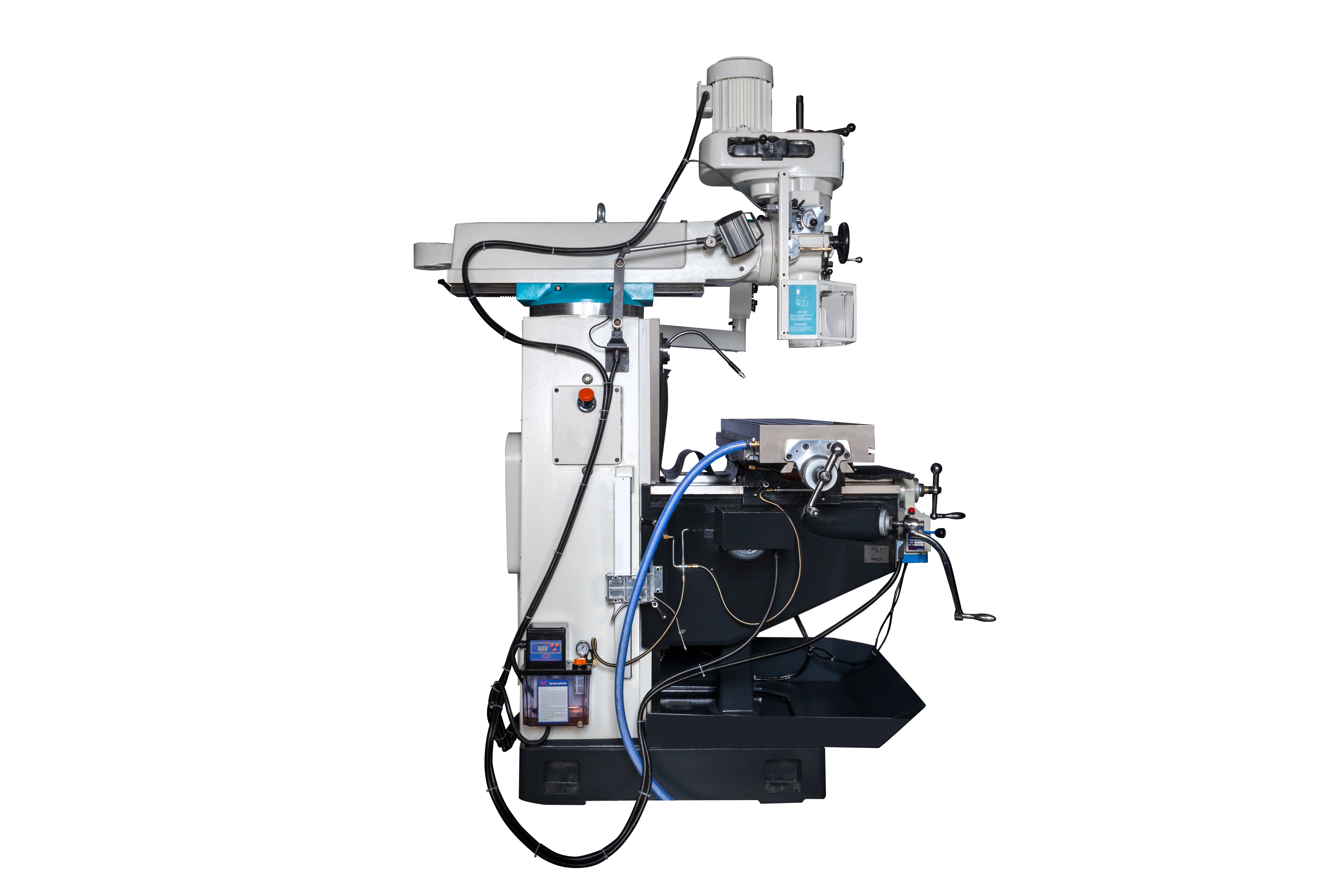

FR4 Universal Mold Milling Machine

The FR4 Universal Mold Milling Machine is a reliable and efficient milling solution with its robust construction and precision machining capabilities.

Whatsapp

FR4 UNIVERSAL MOLD MILLING MACHINE

3-axis automatic

3-axis digital coordinate reader

Control panel

Powerful milling head, Taiwan manufactured

Automatic spindle feed

Height-adjustable safety switch guard

Automatic lubrication system

Cooling system

Lighting

Chip tray

Compliant with CE standards

SHIPPING CONTENT

Mold clamping set

Vice

11-piece ISO 40 collet set

Tooling

OPTIONAL ACCESSORIES

210106: ISO40-B16 milling chuck

210206: ISO40-ER40 collet set, 15 pieces

220404: ISO40-MK4 reduction sleeve

250160: Milling vice 160 mm

250200: Milling vice 200 mm

260160: Dividing set 160 mm

260200: Dividing set 200 mm

270014: 16 mm T-slot, M14 mold clamping set

Motor Power Vertical: 3.75 kW, Horizontal: 2.2 kW, 400 V w
Working Type Vertical: Belt-driven, Horizontal: Gear-driven
Cooling Pump Power 90 w
Table Dimensions 1370x305 mm
X Axis Movement 880 mm
Y Axis Movement 420 mm
Z Axis Movement 435 mm
T Slot Dimensions 3x16 mm
Spindle Connection Vertical: ISO40, Horizontal: ISO40
Spindle Speed Vertical: 66-4500, Horizontal: 40-1290 RPM
Speed Gear Vertical: 16, Horizontal: 12
Spindle Diameter 105 mm
Spindle Travel 127 mm
Head Rotation Angle Right/Left: ±90°, Front/Back: ±45°
Spindle-Table Distance 0-380 mm
Spindle-Column Distance 210 mm
Machine Dimensions (LxWxH) 1700x1600x2250 mm
Net Weight 1500 kg
