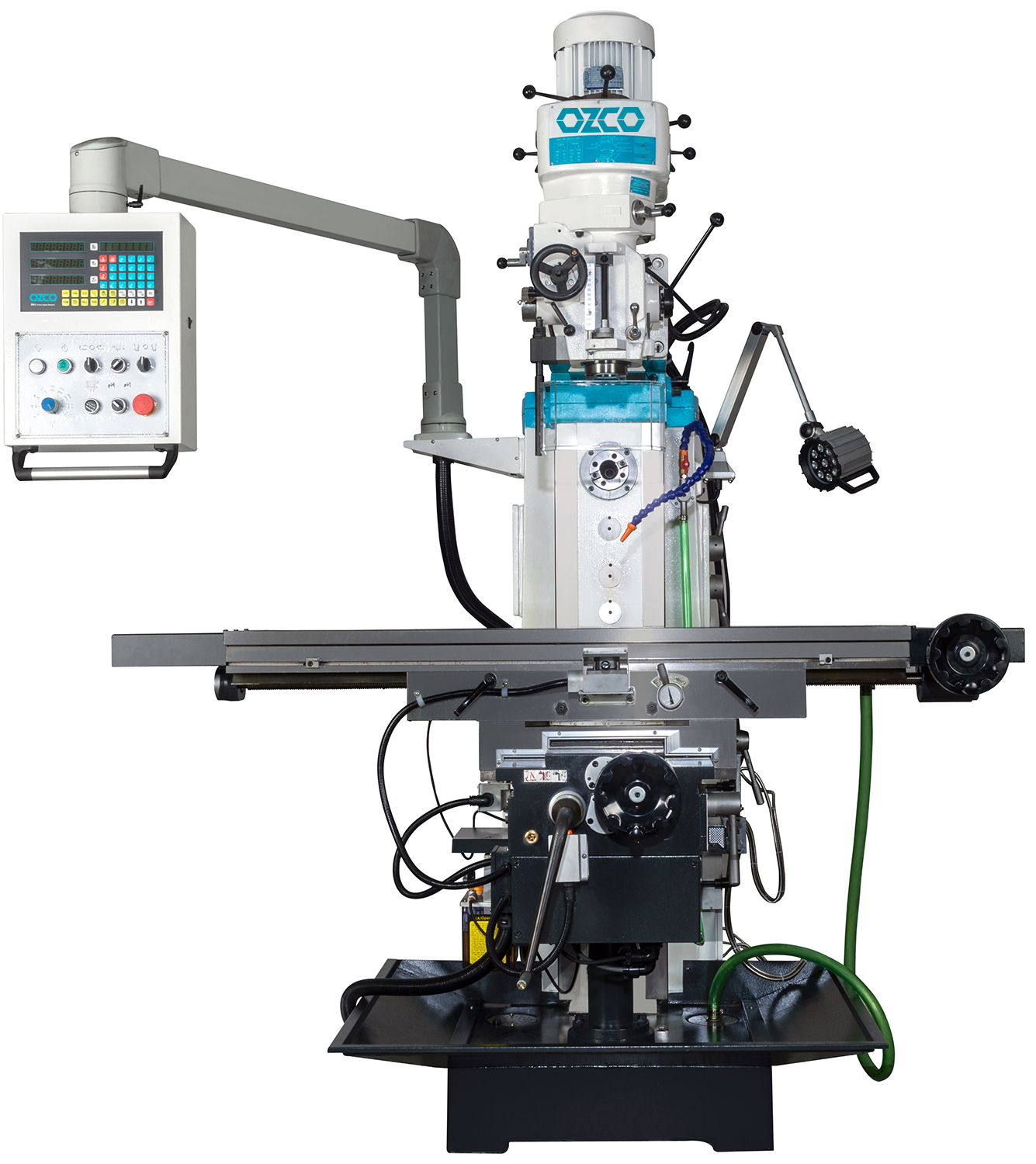

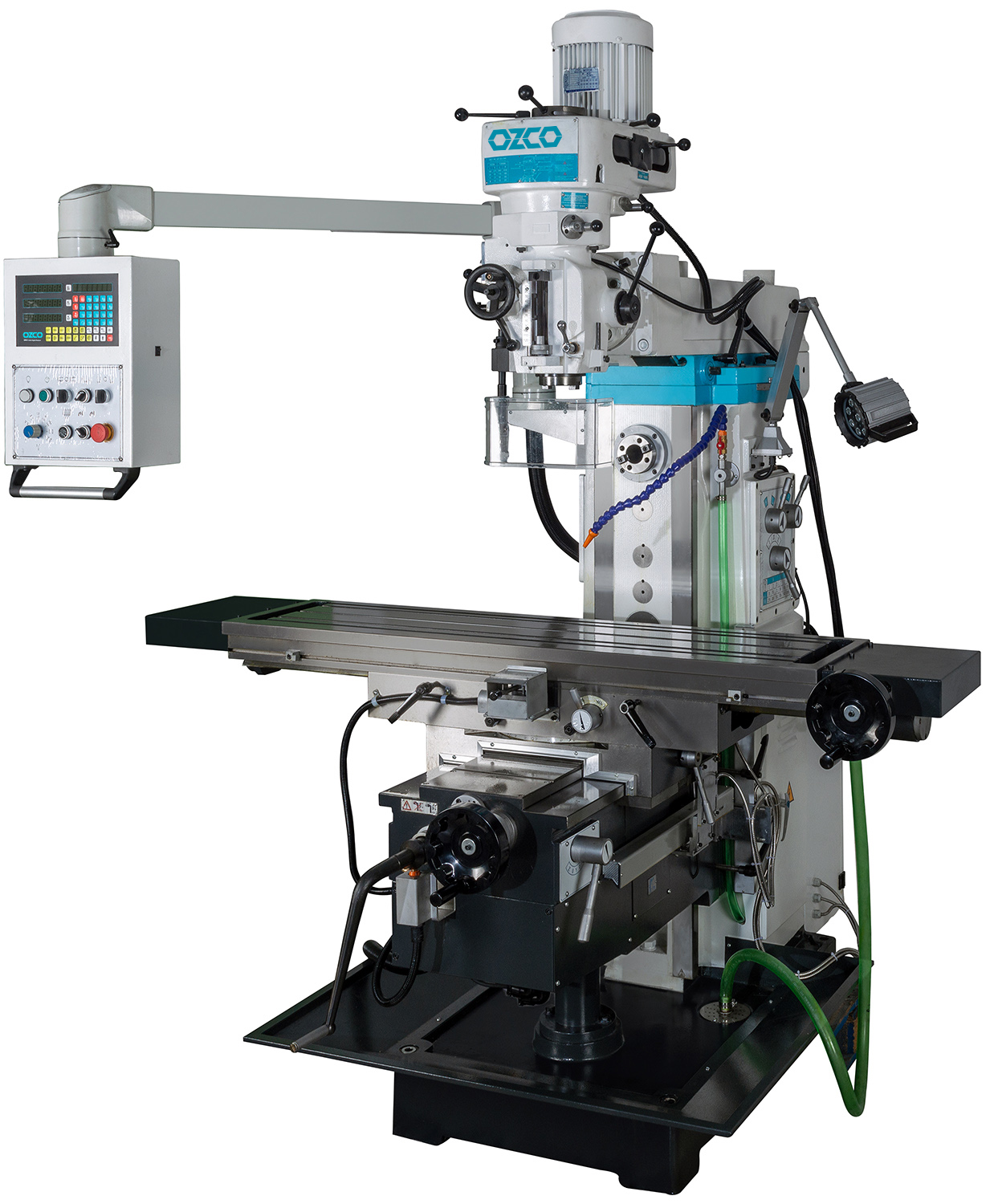

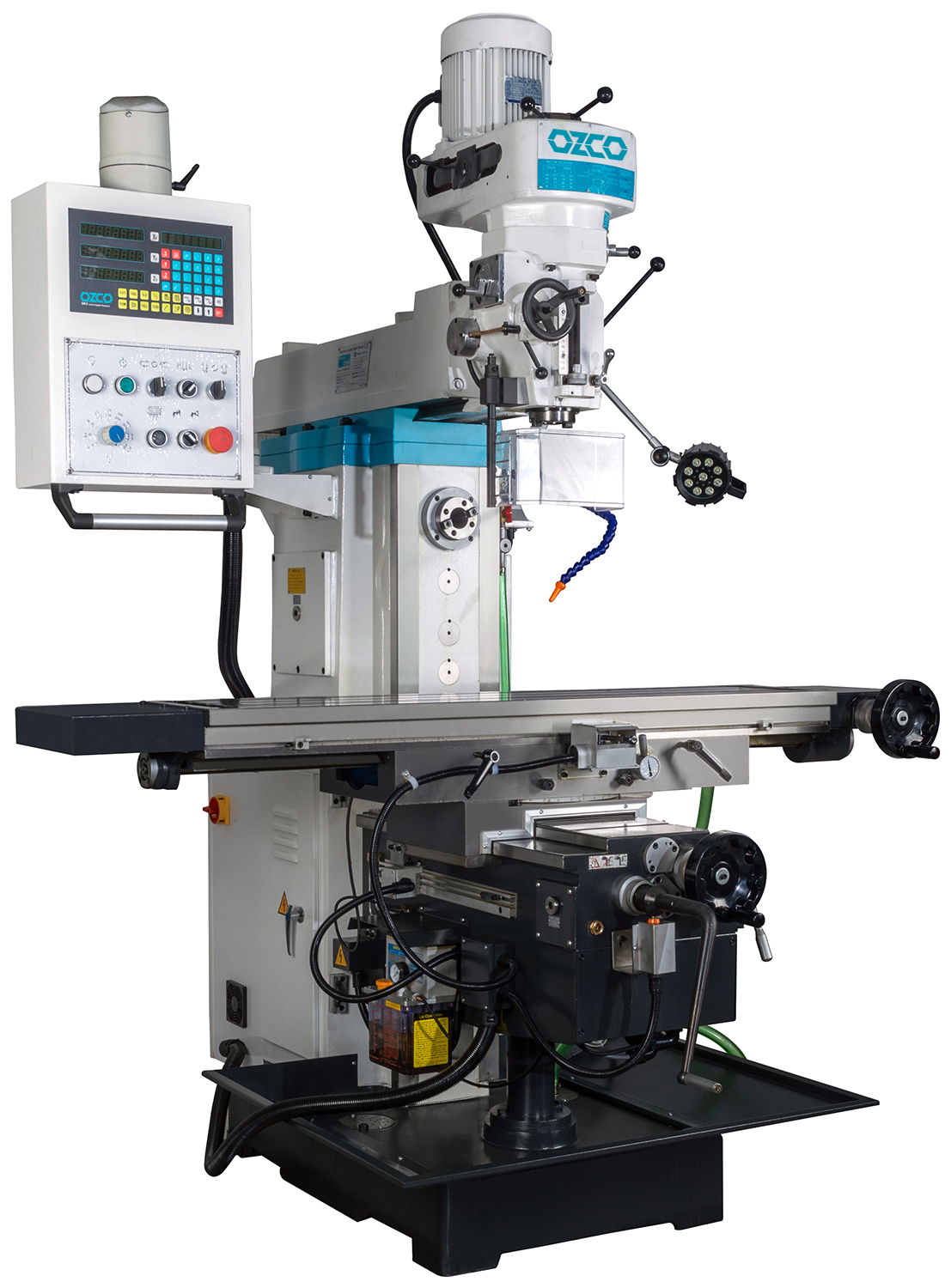

FR5 Servo Universal Mold Milling Machine

The FR5 Servo Universal Mold Milling Machine is a durable and efficient solution with servo motor-driven axes and precision machining features.

Whatsapp

FR5 SERVO UNIVERSAL MOLD MILLING MACHINE

3-axis automatic

3-axis digital coordinate reader

Powerful milling head, Taiwan manufactured

Height-adjustable safety switch guard

Control panel

Automatic lubrication

Cooling system

Lighting

Chip tray

Compliant with CE standards

SHIPPING CONTENT

Mold clamping set

Vice

8-piece ISO 40 collet set

Tooling

OPTIONAL ACCESSORIES

210106: ISO40-B16 milling chuck

210206: ISO40-ER40 collet set, 15 pieces

220404: ISO40-MK4 reduction sleeve

250160: Milling vice 160 mm

250200: Milling vice 200 mm

260160: Dividing set 160 mm

260200: Dividing set 200 mm

270012: 14 mm T-slot, M12 mold clamping set

Motor Power Vertical: 3.75 kW, Horizontal: 3.0 kW, 400 V w
Cooling Pump Power 90 w
Table Dimensions 1370x320 mm
Maximum Table Load Capacity 300 kg
X Axis Travel 1000 mm
Y Axis Travel 360 mm
Z Axis Travel 400 mm
T-Slot Size 3x14 mm
Spindle Connection Vertical: ISO40, Horizontal: ISO40
Spindle Speed Vertical: 65-4660, Horizontal: 35-1500 rpm
Number of Speeds Vertical: 16, Horizontal: 12
Spindle Nose Diameter 105 mm
Spindle Travel 127 mm
Spindle Feed 0.03-0.08-0.2 mm/rev
Spindle-Table Distance Vertical: 200-600, Horizontal: 35-435 mm
Head Rotation Angle ±90°
Spindle-Column Distance 200 mm
Table Feed X,Y: 30-830 mm/min, Z: 23-625 mm/min
Table Rapid Feed X,Y: 1335 mm/min, Z: 1000 mm/min
Table Feed Motor 10 N.m (Servo)
RAM Travel 450 mm
Machine Dimensions (LxWxH) 1820x1680x2350 mm
Net Weight 1800 kg
