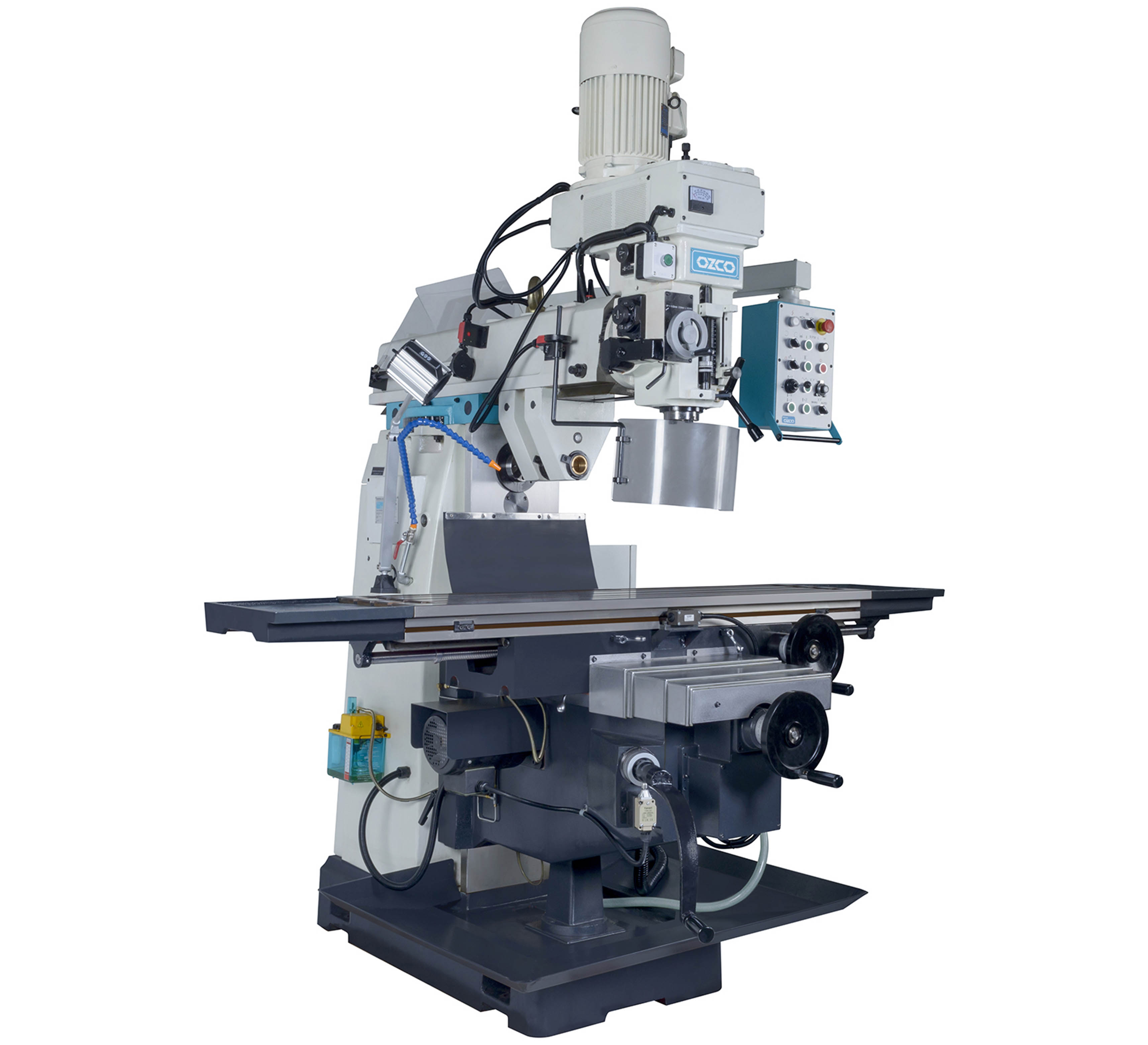

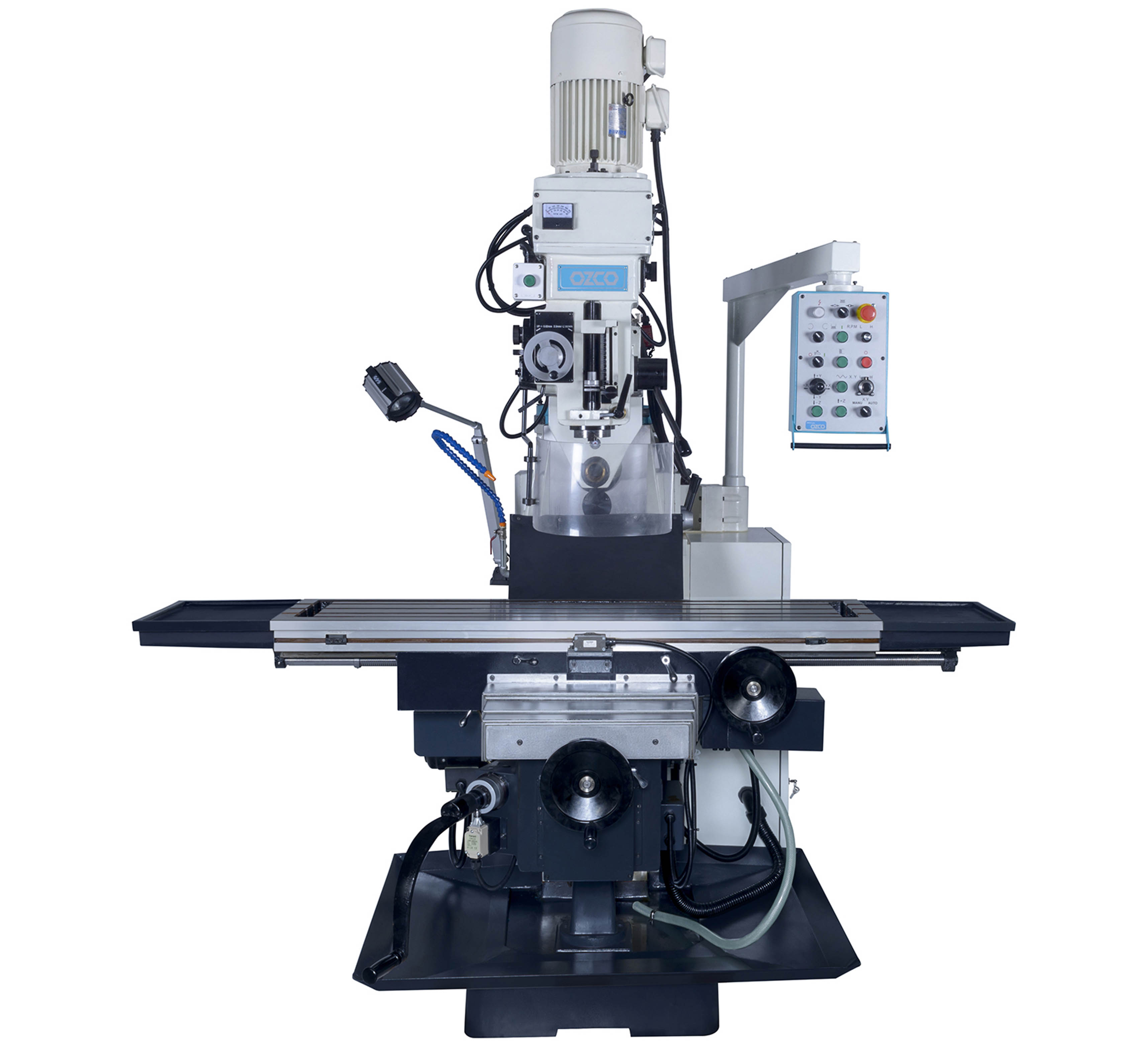

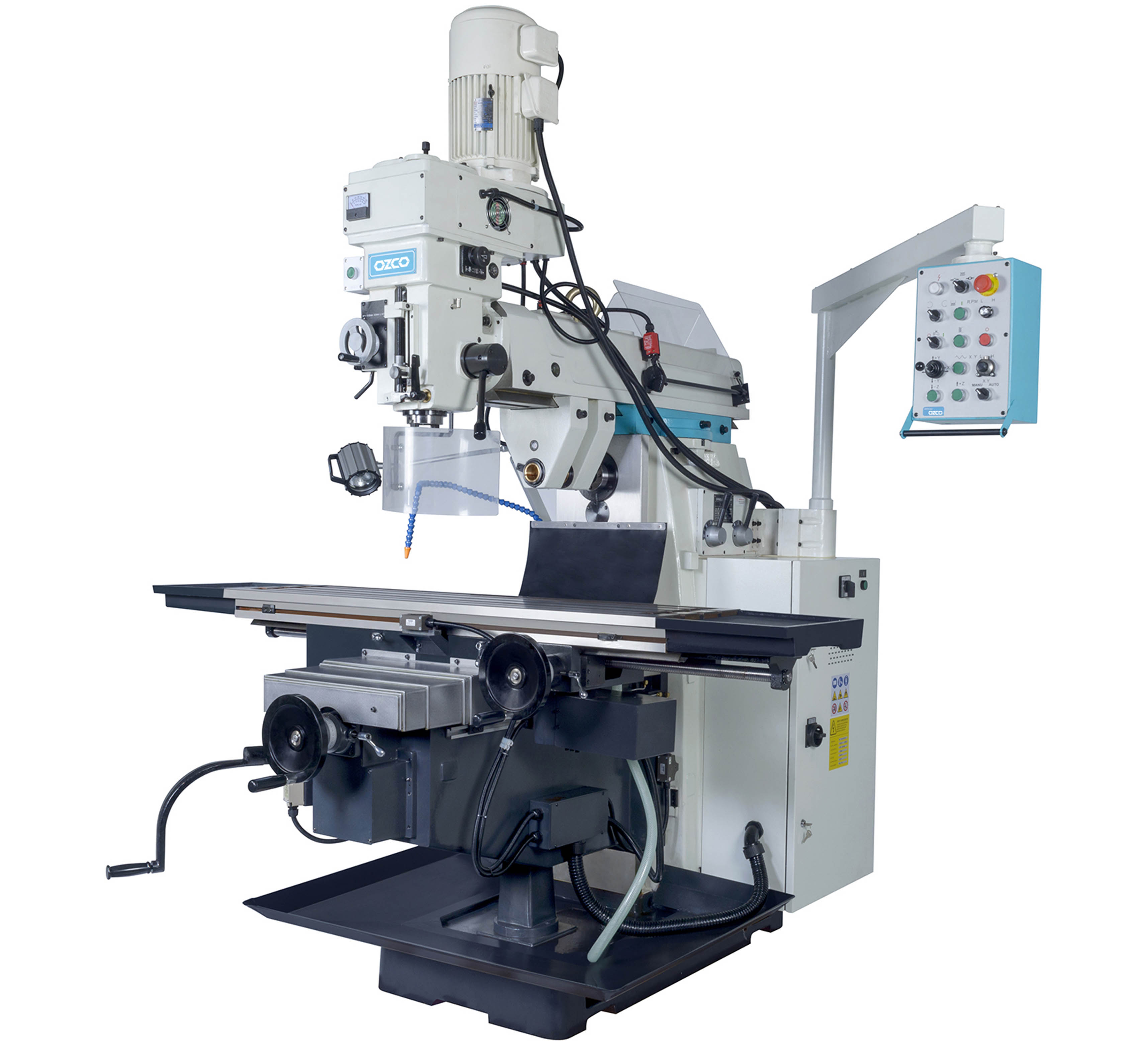

FR7V Pro Servo Universal Mold Milling Machine

With stepless vario speed control and Yaskawa servo motors on the X and Y axes, it offers precision machining performance.

Whatsapp

FR7V PRO SERVO UNIVERSAL MOLD MILLING MACHINE

Vario (Stepless) speed control

X and Y axes with ball screws - Made in Japan

Yaskawa brand servo motors, automatic

Z axis rapid motor - automatic

Height adjustable safety switch guard

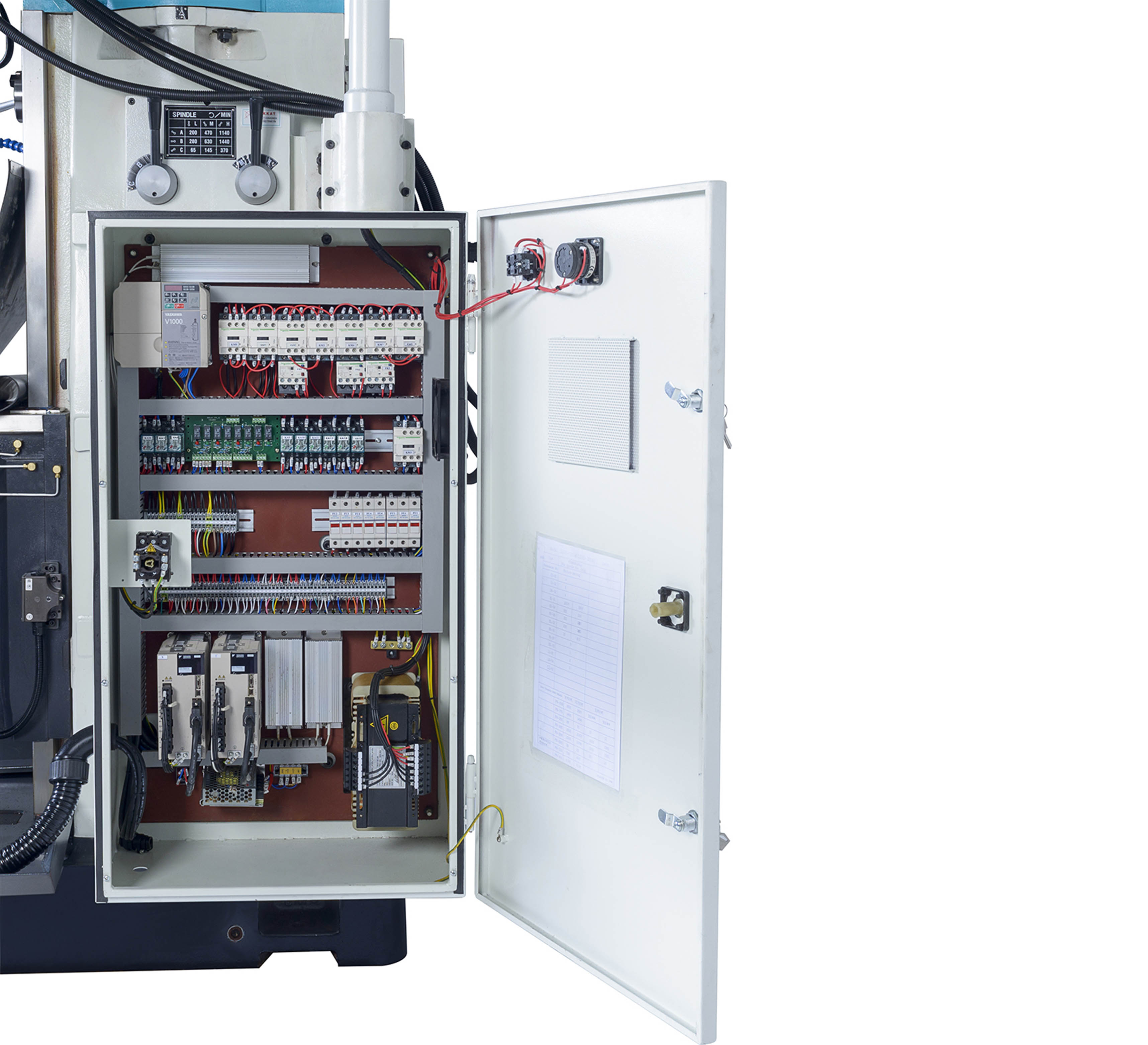

Schneider electrical system

Turcite-B coated slideways

Lighting

Cooling system

Chip collection tray

Compliant with CE standards

MADE IN TAIWAN

SHIPPING CONTENT

15 pieces ISO 40 collet set

Mold clamping set

Vice

Accessories

OPTIONAL ACCESSORIES

270016: 18 mm T-slot, M16 mold clamping set

Motor Power Vertical: 3.75 kW, Horizontal: 3.75 kW, 400 V
Table Size 1470x370 mm
Table Load Capacity (max.) 400 kg
X Axis Movement 1120 mm
Y Axis Movement 500 mm
Z Axis Movement 440 mm
T Slot Size 3x18 mm
Spindle Connection Vertical: ISO40, Horizontal: ISO40
Spindle Speed Vertical: 60-3600 (vario), Horizontal: 60-1800 rpm
Gears Vertical: Vario, Horizontal: 9
Quill Travel 140 mm
Head Rotation Angle ±45°
Spindle-Table Distance Vertical: 85-505 mm, Horizontal: 25-395 mm
Table Feed X, Y: 750 W servo motor, Z: 750 W rapid motor
Machine Dimensions (LxWxH) 2070x2050x2600 mm
Net Weight 2700 kg
