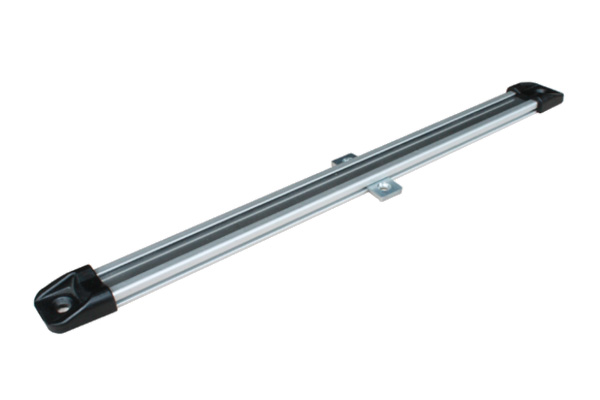

    EMS200 MAGNETIC SCALES

    The **EMS200 Magnetic Scales** are used in lathes, milling machines, boring machines, grinding machines, special machinery, and automation applications.

    Magnetic scales perform non-contact measurement as there is no mechanical friction between the reader sensor and the scale.

    The power supply voltage is produced as 5Vdc - TTL or 24Vdc - PPL.

    It provides an incremental (encoder/pulse) signal output.

    It has a standard resolution of 5 µm (0.005).

    It can be applied up to a measurement length of 20 meters.

    The **EMG120** or **EMG121 Magnetic Reader Sensors** operate contact-free at a maximum distance of 2 mm.

    It eliminates mechanical contractions and parallelism issues, protecting the reader sensor from breakage.

    With an IP67 protection class, they are not affected by oil, water, dust, etc.

    Its slim body design allows it to be applied in confined machine spaces.

    The cables are protected with galvanized steel spiral tubes to prevent damage under harsh production conditions.

    Cable lengths are produced as standard in 3.5 and 5 meters. Optionally, they can be manufactured in a single piece up to 50 meters.

    You can use **EMS320 Magnetic Scales** with **EMOS80**, **EMOS100 Digital Indicators**, PLCs, CNC systems, digital counters, and all devices with encoder reading features.

    Resolution 5µm, 10µm, 25µm, 50µm, 62.5µm, 100µm...
    Operating Temperature -25°C ... +85°C
    Operating Speed 3 m/s
    Electrical Connection D-Sub 9 pin, 5 or 8 x 0.14 mm² shielded cable
    Power Supply Voltage PPL: 10..30 VDC or TTL: 5 VDC
    Body Material Aluminum
    Protection Class IP67
    Sensor-Band Operating Distance 0.1 mm to 2 mm
    Magnetic Band Type B5 or B2
    Lifetime Infinite (contactless)
