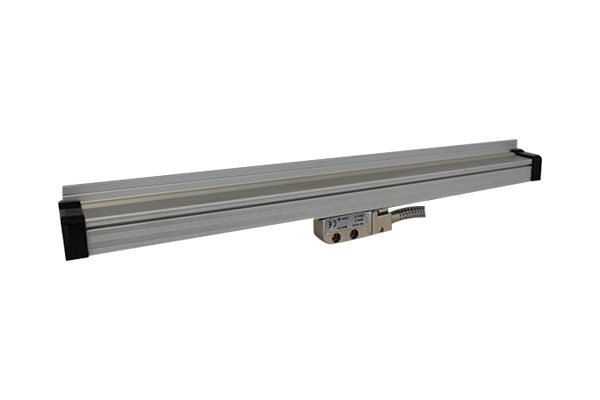

    EMS110 MAGNETIC SCALES

    The **EMS110 Magnetic Scales** are used in lathes, milling machines, boring machines, grinding machines, special machinery, and automation applications.

    **EMS110 Magnetic Scales** perform non-contact measurement as there is no mechanical friction between the reader sensor and the scale.

    The power supply voltage is produced as 5Vdc - TTL or 24Vdc - PPL.

    It provides an incremental (encoder/pulse) signal output.

    It has a standard resolution of 5 µm (0.005).

    It can be applied up to a measurement length of 20 meters.

    The **EMG120** or **EMG121 Magnetic Reader Sensors** operate contact-free at a maximum distance of 2 mm.

    It eliminates mechanical contractions and parallelism issues, protecting the reader sensor from breakage.

    With an IP67 protection class, they are not affected by oil, water, dust, etc.

    The Z-shaped body design allows it to be applied in confined machine spaces.

    The cables are protected by a galvanized steel spiral tube to prevent damage under harsh production conditions.

    Cable lengths are produced as standard in 3.5 and 5 meters. Optionally, they can be manufactured in a single piece up to 50 meters.

    You can use **EMS320 Magnetic Scales** with **EMOS80**, **EMOS100 Digital Indicators**, PLCs, CNC systems, digital counters, and all devices with encoder reading features.

    Resolution 5µm, 10µm, 25µm, 50µm, 62.5µm, 100µm...
    Operating Temperature -25°C ... +85°C
    Operating Speed 3 m/s
    Electrical Connection D-Sub 9 pin, 5 or 8 x 0.14 mm² shielded cable
    Power Supply Voltage PPL: 10..30 VDC or TTL: 5 VDC

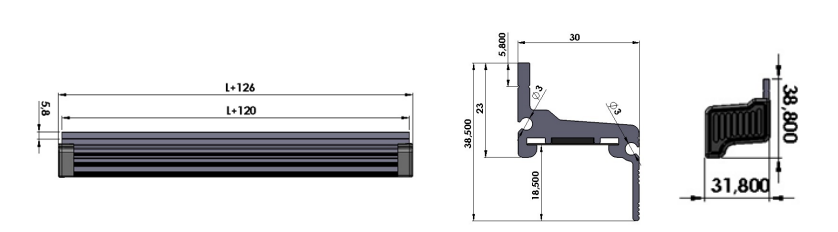

    Body Material Aluminum Z-Type Profile
    Output Type Push-Pull or TTL RS422 Line Driver
    Protection Class IP67
    Sensor-Band Operating Distance 1 mm (Max. 2 mm)
    Magnetic Band Type B5 (Optional B2)
    Lifetime Infinite (contactless)
    Output Signals A, /A, B, /B, Z, /Z
    Repeatability ± 1 Pulse
