    EMS320 Magnetic Scales

    EMS320 Magnetic Scales are used in lathes, milling machines, boring machines, grinding machines, special machinery, and automation applications. They have a standard resolution of 5 µm (0.005). They are manufactured up to ameasurement/stroke length of 1000 mm.

    PDF

    Whatsapp

    Offer Basket
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

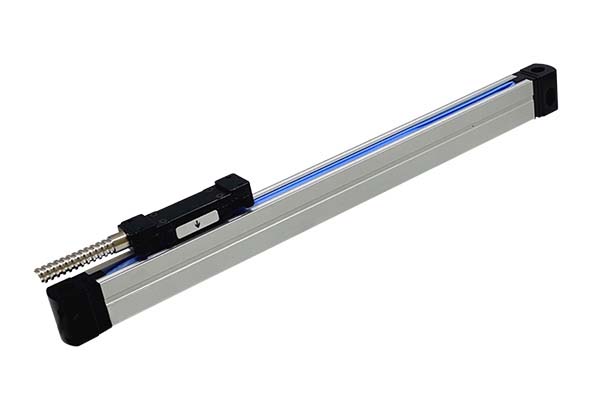

    EMS320 MAGNETIC SCALES

    The EMS320 Magnetic Scales are used in lathes, milling machines, boring machines, grinding machines, special machinery, and automation applications.

    EMS320 Magnetic Scales perform non-contact measurement as there is no mechanical friction between the reader sensor and the scale.

    The power supply voltage is produced as 5Vdc - TTL or 24Vdc - PPL.

    It provides an incremental (encoder/pulse) signal output.

    It has a standard resolution of 5 µm (0.005).

    It is manufactured up to a measurement/stroke length of 1000 mm.

    The EMG320 Magnetic Reader Sensors have a spring design that minimizes mechanical contractions and parallelism issues, protecting the sensor from breakage.

    The EMG320 Reader Sensor is mounted with shafts inside an aluminum profile.

    It features a sealed protection system.

    With an IP67 protection class, they are not affected by oil, water, dust, etc.

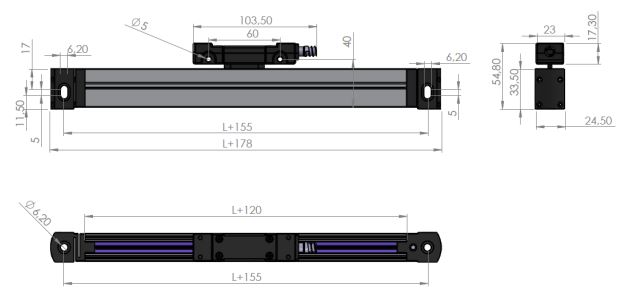

    Its 24.50 mm body design allows it to be applied in the narrowest machine spaces.

    The cables are protected with galvanized steel spiral tubes to prevent damage under harsh production conditions.

    Cable lengths are produced as standard in 3.5 and 5 meters. Optionally, they can be manufactured in a single piece up to 50 meters.

    You can use EMS320 Magnetic Scales with EMOS80, EMOS100 Digital Indicators, PLCs, CNC systems, digital counters, and all devices with encoder reading features.

    Resolution 1µm, 5µm, 10µm, 25µm, 50µm, 62.5µm, 100µm...
    Operating Temperature -25°C ... +85°C
    Operating Speed 3 m/s
    Electrical Connection D-Sub 9 pin, 5 or 8 x 0.14 mm² shielded cable
    Power Supply Voltage PPL: 10..30 VDC or TTL: 5 VDC
    Output Type Push-Pull or TTL RS422 Line Driver
    Protection Class IP67
    Pole Distance 2 mm, 1mm
    Magnetic Band Type B2
    Output Signals A, /A, B, /B, Z, /Z
    Repeatability ± 1 Pulse
    Accuracy ± 40 µm/m or ± 20 µm/m
