    EMG130 Magnetic Linear Encoders

    EMG130 Magnetic Reader Encoders work with EMS110 and EMS200 Series Magnetic Linear Scales. They are produced with a supply voltage of 5Vdc - TTL or 24Vdc - PPL. Magnetic Linear Encoders offer a standard resolution of 5 µm (0.005).

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

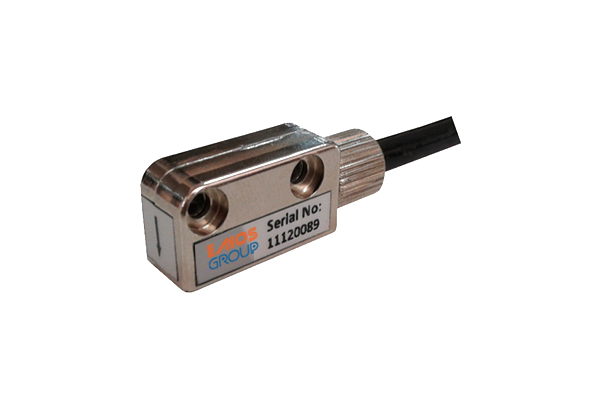

    EMG130 MAGNETIC LINEAR ENCODERS

    The EMG130 Magnetic Reader Encoders work with the EMS110 and EMS200 Series Magnetic Linear Scales.

    They read position data accurately and send encoder pulses by moving at a distance of 0.1 – 2 mm without touching the magnetic strip.

    Available in both wired and spiral models, they also offer options with or without chip removers.

    They are manufactured with a 5Vdc - TTL or 24Vdc - PPL power supply voltage.

    These encoders provide an incremental (encoder/pulse) signal output.

    Magnetic Linear Encoders have a standard resolution of 5 µm (0.005 microns).

    With an IP67 protection class, they are resistant to oil, water, dust, and other environmental factors.

    To protect the cables under harsh production conditions, they are shielded with a Steel Galvanized Spiral Conduit.

    Cable lengths are typically 3 meters and 5 meters, but they can be produced in a single piece up to 50 meters upon request.

    Thanks to the integrated scrapers on the sensor body, they are especially protected from potential external factors like dust, dirt, and chips that may form on the magnetic strip or profile they move over.

    Resolution 5µm, 10µm, 20µm, 25µm, 62.5µm, 80µm, 100µm
    Operating Temperature -25°C ... +85°C
    Operating Speed 3 m/s
    Electrical Connection D-Sub 9 pin, 5 or 8 x 0.14 mm² shielded cable
    Power Supply Voltage PP: 10..30 VDC or TTL: 5 VDC
    Output Type Push-Pull or TTL RS422 Line Driver
    Protection Class IP67
    Magnetic Tape Type B1, B2, B5
    Output Signals A, /A, B, /B, Z, /Z
    Current Draw Maximum 40 mA (per channel)
    External Body Material Aluminum
    Repeatability ± 1 Pulse
    Measurement Principle Magnetic
    Measurement Distance Up to 100 meters
