    EMG 210 Magnetic Linear Encoders

    EMG210 Magnetic Reader Encoders work with EMS110 and EMS310 Magnetic Linear Encoders. They have a standard resolution of 5 µm (0.005). With an IP67 protection class, they are not affected by oil, water, dust, etc.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün

    EMG210 MAGNETIC LINEAR ENCODERS

    The EMG210 Magnetic Reader Encoders work with the EMS110 and EMS310 Magnetic Linear Scales.

    It moves without making contact with the magnetic tape, operating within a distance of 0.1 – 2 mm to precisely read position information and send it as encoder pulses.

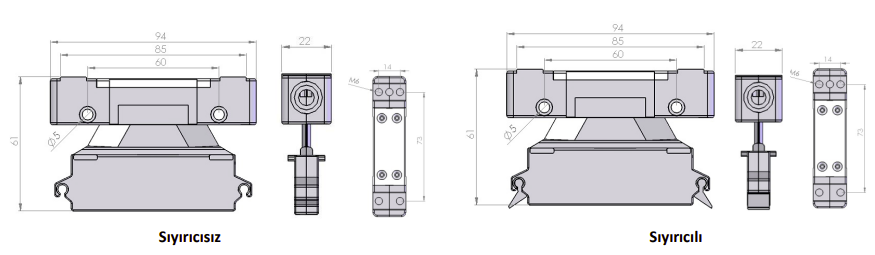

    Available in both wired and spiral models, with options for scraper and non-scraper models.

    The power supply voltage is produced as 5Vdc - TTL or 24Vdc - PPL.

    It provides an incremental (encoder/pulse) signal output.

    It has a standard resolution of 5 µm (0.005).

    With an IP67 protection class, they are not affected by oil, water, dust, etc.

    The cables are protected with galvanized steel spiral tubes to prevent damage under harsh production conditions.

    Cable lengths are produced as standard in 3.5 and 5 meters. Optionally, they can be manufactured in a single piece up to 50 meters.

    You can use EMS320 Magnetic Scales with EMOS80, EMOS100 Digital Indicators, PLCs, CNC systems, digital counters, and all devices with encoder reading features.

    Resolution 5µm, 10µm, 25µm, 50µm, 62.5µm, 100µm...
    Operating Temperature -25°C ... +85°C
    Operating Speed 3 m/s
    Electrical Connection D-Sub 9 pin, 5 or 8 x 0.14 mm² shielded cable
    Power Supply Voltage PP: 10..30 VDC or TTL: 5 VDC
    Output Type Push-Pull or TTL RS422 Line Driver
    Protection Class IP67
    Magnetic Band Type B5
    Output Signals A, /A, B, /B, Z, /Z
    Current Draw Maximum 40 mA (Per Channel)
    External Body Material Aluminum
    Repeatability ± 1 Pulse
    Measurement Principle Magnetic
    Measurement Distance Up to 100 meters
