    EMG120 Magnetic Linear Encoders

    EMG120 and EMG121 Magnetic Reader Encoders are designed to work with the EMS110 and EMS200 Series Magnetic Linear Scales. They provide an incremental (encoder/pulse) signal output and offer a standard resolution of 5 µm (0.005 microns). These encoders are ideal for precision and reliable performance in various industrial applications.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Sonraki Ürün

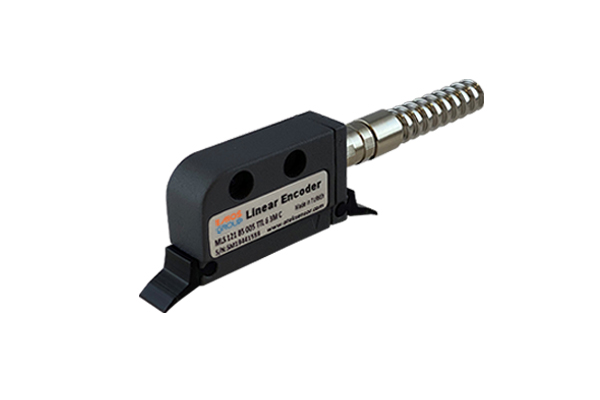

    EMG120 MAGNETIC LINEAR ENCODERS

    The EMG120 Magnetic Reader Encoders work with EMS110 and EMS200 Series Magnetic Linear Scales.

    They accurately read position data and send encoder pulses by moving at a distance of 0.1 – 2 mm without touching the magnetic strip.

    These encoders are available in both wired and spiral models, with options for with chip removal or without chip removal.

    They are produced with a 5Vdc - TTL or 24Vdc - PPL power supply voltage.

    They provide an incremental (encoder/pulse) signal output.

    The encoders have a standard resolution of 5 µm (0.005 microns).

    With an IP67 protection class, they are resistant to oil, water, dust, and other environmental factors.

    To protect the cables under harsh production conditions, they are shielded with a Steel Galvanized Spiral Conduit.

    Cable lengths are typically 3.5 meters and 5 meters, but up to 50 meters can be produced in a single piece upon request.

    You can use EMS320 Magnetic Scales with EMOS80, EMOS100 Digital Displays, PLC, CNC Systems, Digital Counters, and any devices with encoder reading features.

    Thanks to integrated scrapers on the sensor body, they are especially protected from potential external factors like dust, dirt, and chips that may form on the magnetic strip or profile they move over.

    Resolution 1µm, 5µm, 10µm, 25µm, 50µm, 62.5µm, 100µm...
    Operating Temperature -25°C ... +85°C
    Operating Speed 3 m/s
    Electrical Connection D-Sub 9 pin, 5 or 8 x 0.14 mm² shielded cable
    Power Supply Voltage PPL: 10..30 VDC or TTL: 5 VDC
