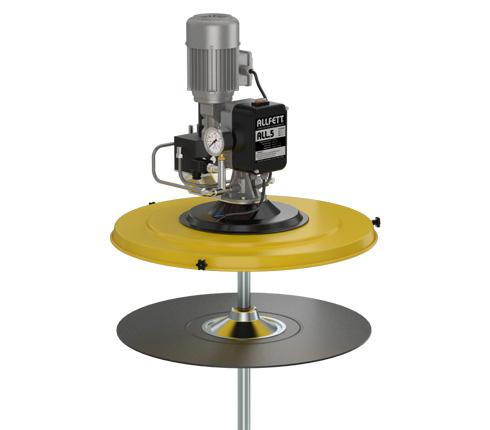

    All-5 DC (barrel type) lubrication pump

    All-5 two-line series products are piston-type pumps produced for lubrication purposes.

    Thanks to the direction valve integrated on the pump, it is used for two -line lubrication systems.

    The pump displacement is varied, so that it can meet different amounts of needs.

    Pumps do not have their own oil reservoir.

    It provides the need for oil reservoir with standard Gres packaging barrels that can be purchased from the market.

    Special production can be made according to the different types of these barrels.

    The All-5 pump system diversifies the amount of flow with 3 different types of oil pistons.

    Each piston size has a different amount of pressure and flow rates.

    Working temperature -25 ° ...+80 ° C
    Protection class IP54
    Motor type 24 VDC
    Max.Pressure (Ø12 - Ø16 piston) 180 bar., (Ø20 piston) 150 bar.
    Oil class NLGI 0 (0 ° C to 0 ° C), NLGI 1 (0 ° C to 10 ° C), NLGI 2 (10 ° C to 30 ° C)
    Pump Element displacement (Ø12 piston) 140 cm³/minute, (Ø16 piston) 250 cm³/minute, (Ø20 piston) 390 cm³/minute
    HUZNE CAPACITES There is no chamber.(Uses 16 - 20 liters of standard Gres packaging buckets as a chamber)
