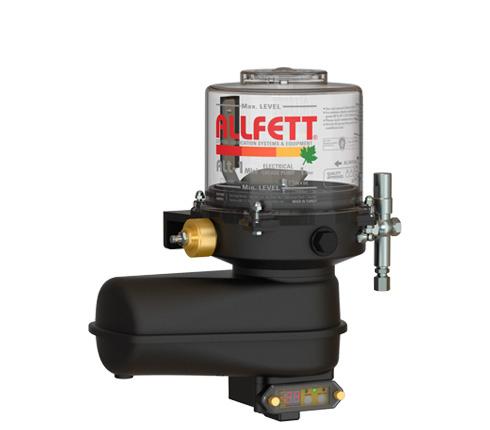

    All-1 mini grease lubrication pump

    All-1 mini-series products are piston-type pumps produced for lubrication purposes.

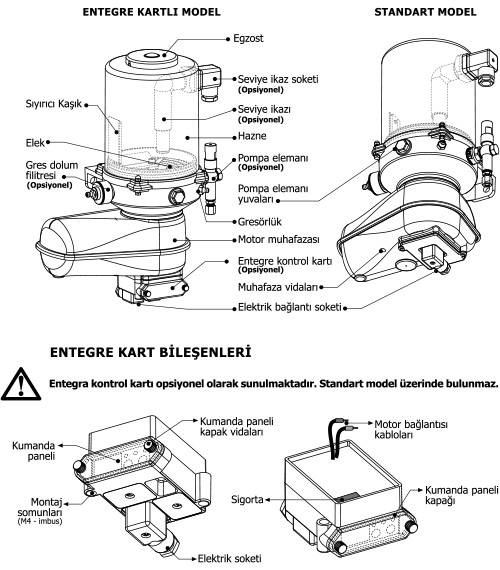

    There are pump elements that are mounted on the trunk and perform pressure oil output.

    These pump elements can be added to the desired pieces of 1 to 3 pieces.

    The condition of the oil can be monitored electronically with the optional AllFett Level warning.

    There are two different valve types, locked and unlocked, which can be added when requested on the pump.

    These caps can be filling from the top.

    In order to adjust the operation and waiting times of the pump, the electronic control card, which can be used under the engine storage, is offered as optional.

    Working temperature -40C ° - + 80C °
    Protection class IP54
    Motor type 12 - 24 V DC
    Max.Pressure 400 bar
    Oil class NLGI 000 (-30 ° C to -30 ° C), NLGI 00 (-30 ° C to -10 ° C), NLGI 0 (-10 ° C to 0 ° C), NLGI 1 (0 ° C to 10 ° C), NLGI 2 (10 ° C), NL 3 (30 ° C and Over)
    Pump Element displacement 1.5 cm³ / minute, 2.5 cm³ / minute, 3.5 cm³ / minute

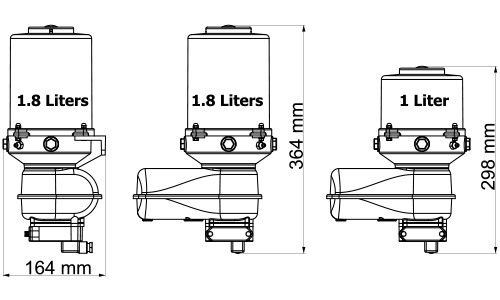

    HUZNE CAPACITES 1 liter, 1.8 liters
    Control Card Voltage 10 - 30 V DC
    Working time range Between 1 second and 99 minutes
    Waiting time range 1 second to 99 hours
    Warnings Insurance Waste, Fault, Alarm
