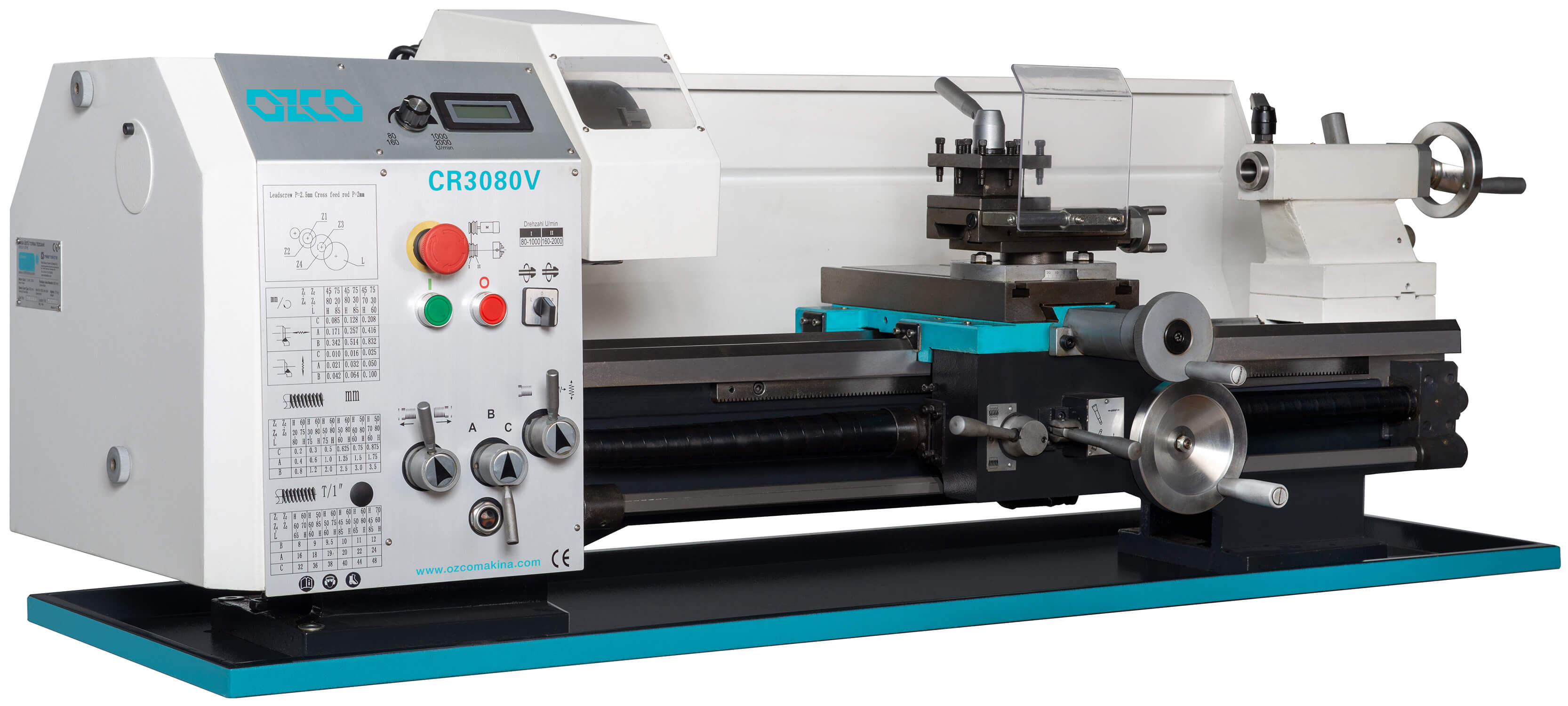

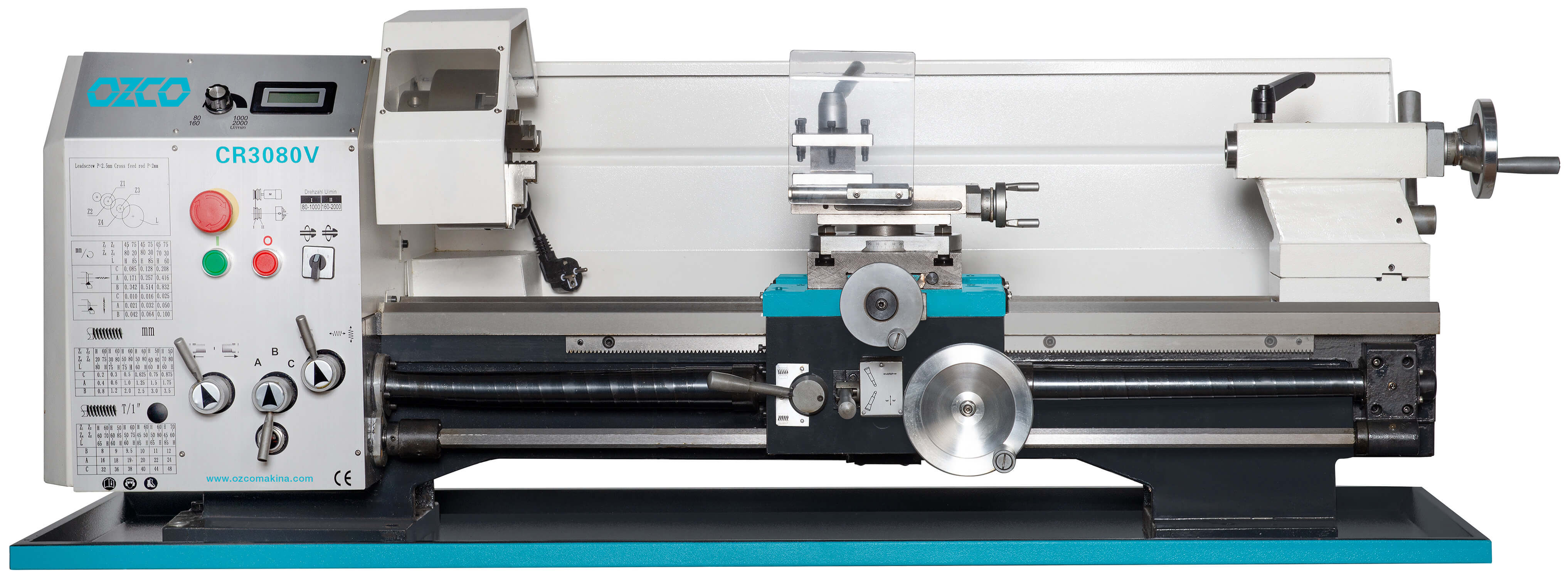

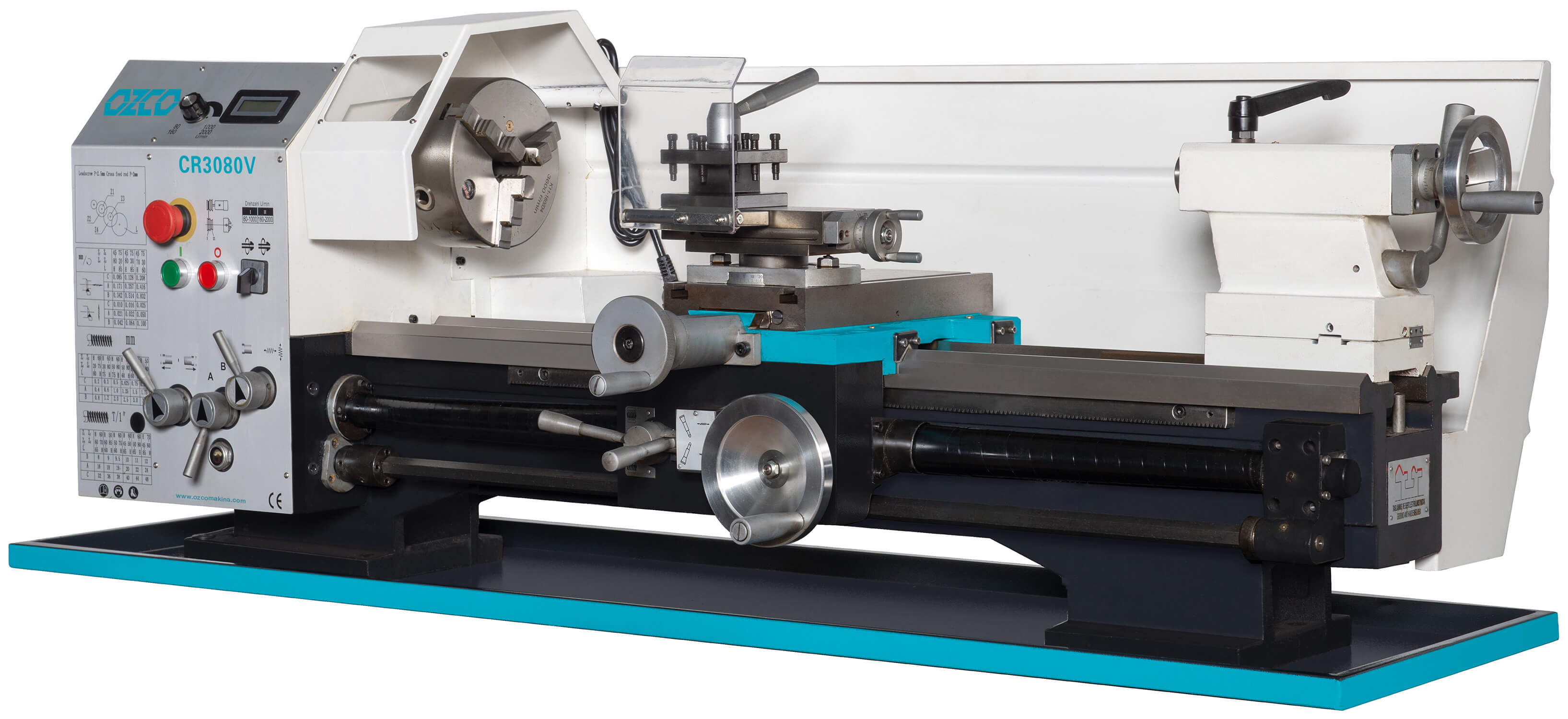

CR3080V Lathe Machine

Equipped with hardened guideways, a precision spindle, forward-reverse rotation, automatic feed, and threading functions, it complies with CE standards. The shipment includes a 3-jaw chuck, fixed and live centers, gears, rear safety guard, chip tray, and tool kit. Optional parts are available.

Whatsapp

CR3080V LATHE MACHINE

Hardened and ground guideways

Powerful and precise spindle

Forward / Reverse rotation

Carriage with automatic feed

Thread cutting

Emergency stop button

Rear safety guard

Chip tray

CE compliant

DELIVERY CONTENT

3-jaw chuck Ø160 mm

Fixed center

Live center

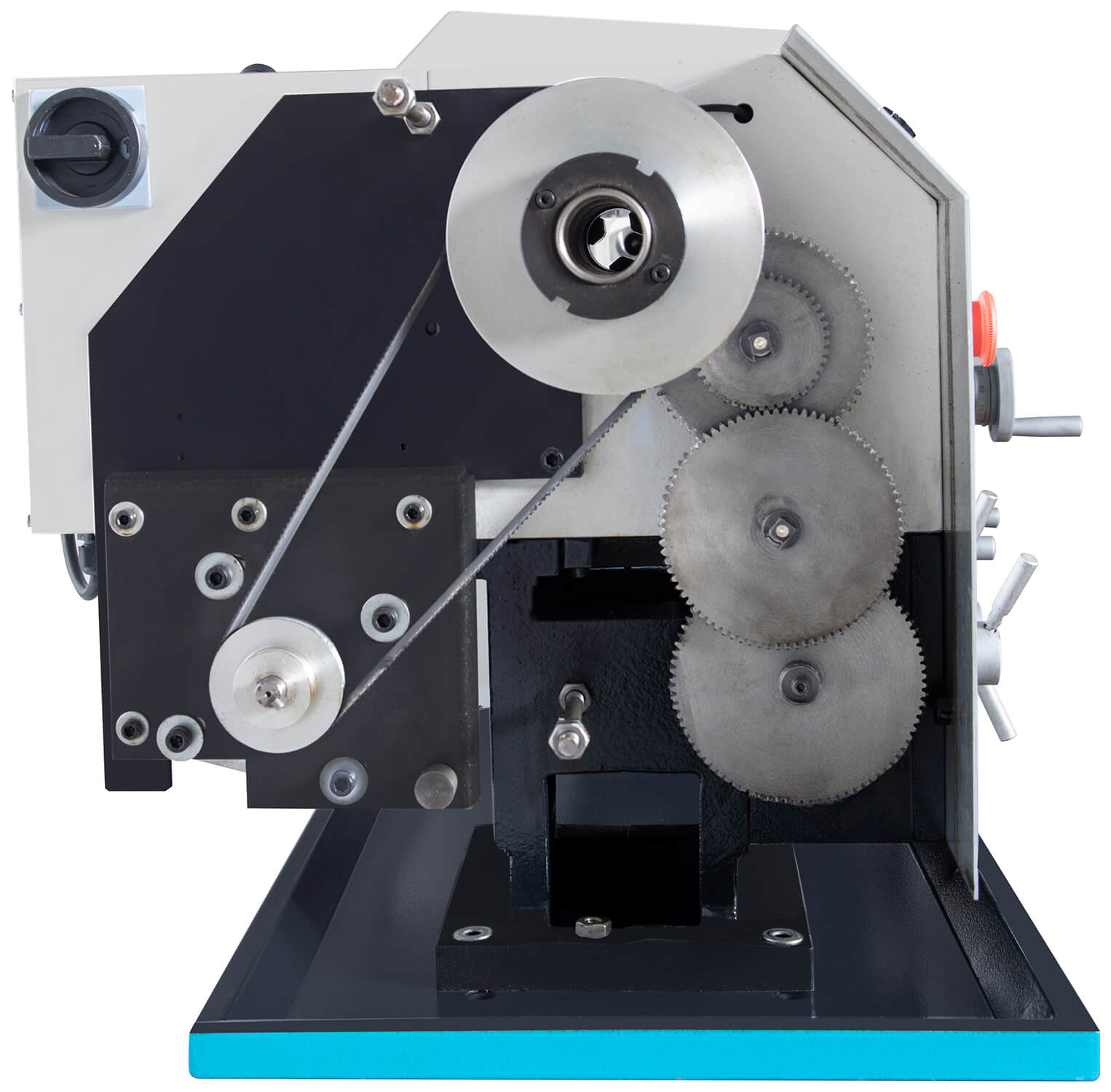

Thread cutting gears

Rear safety guard

Chip tray

Tool kit

OPTIONAL ACCESSORIES

310103: MK3 live center

320102: 20x90 mm quick-change tool post set

395080: Lathe stand

Motor Power 1.5 kW, 230 V w
Diameter Over Bed 300 mm
Diameter Over Carriage 190 mm
Bed Width 180 mm
Distance Between Centers 800 mm
Speed 80–2000 rpm
Speed Type Variable speed
Spindle Taper MK5
Spindle Bore 38 mm
Cross Slide Travel 61 mm
Compound Slide Travel 150 mm
Tailstock Taper MK3
Tailstock Quill Travel 70 mm
Longitudinal Feed 0.085–0.83 mm/rev
Cross Feed 0.01–0.1 mm/rev
Metric Thread Pitch & Range 0.2–3.5 mm
Tool Post Size 16 mm
Machine Dimensions (LxWxH) 1500x720x680 mm
Weight 270 kg
