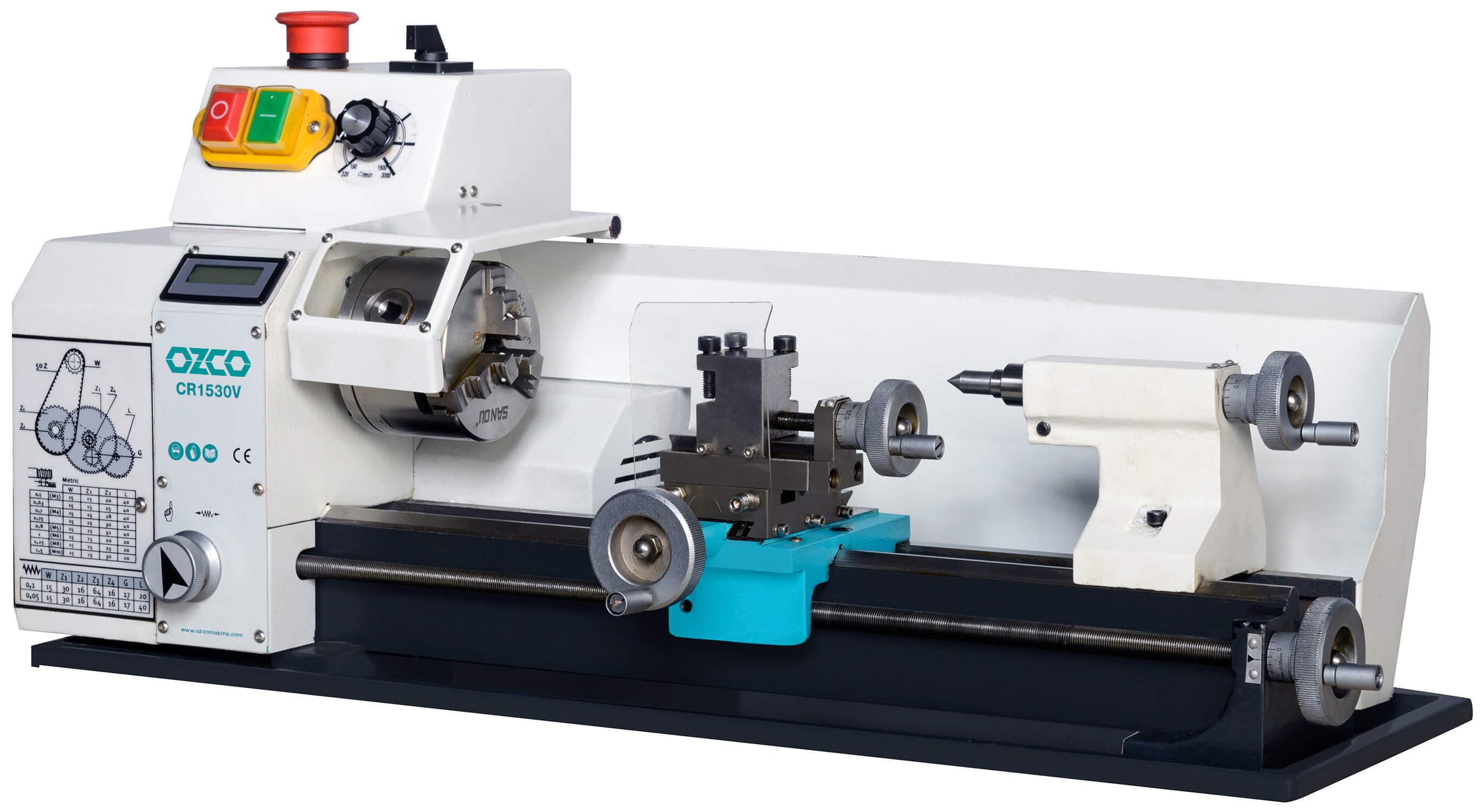

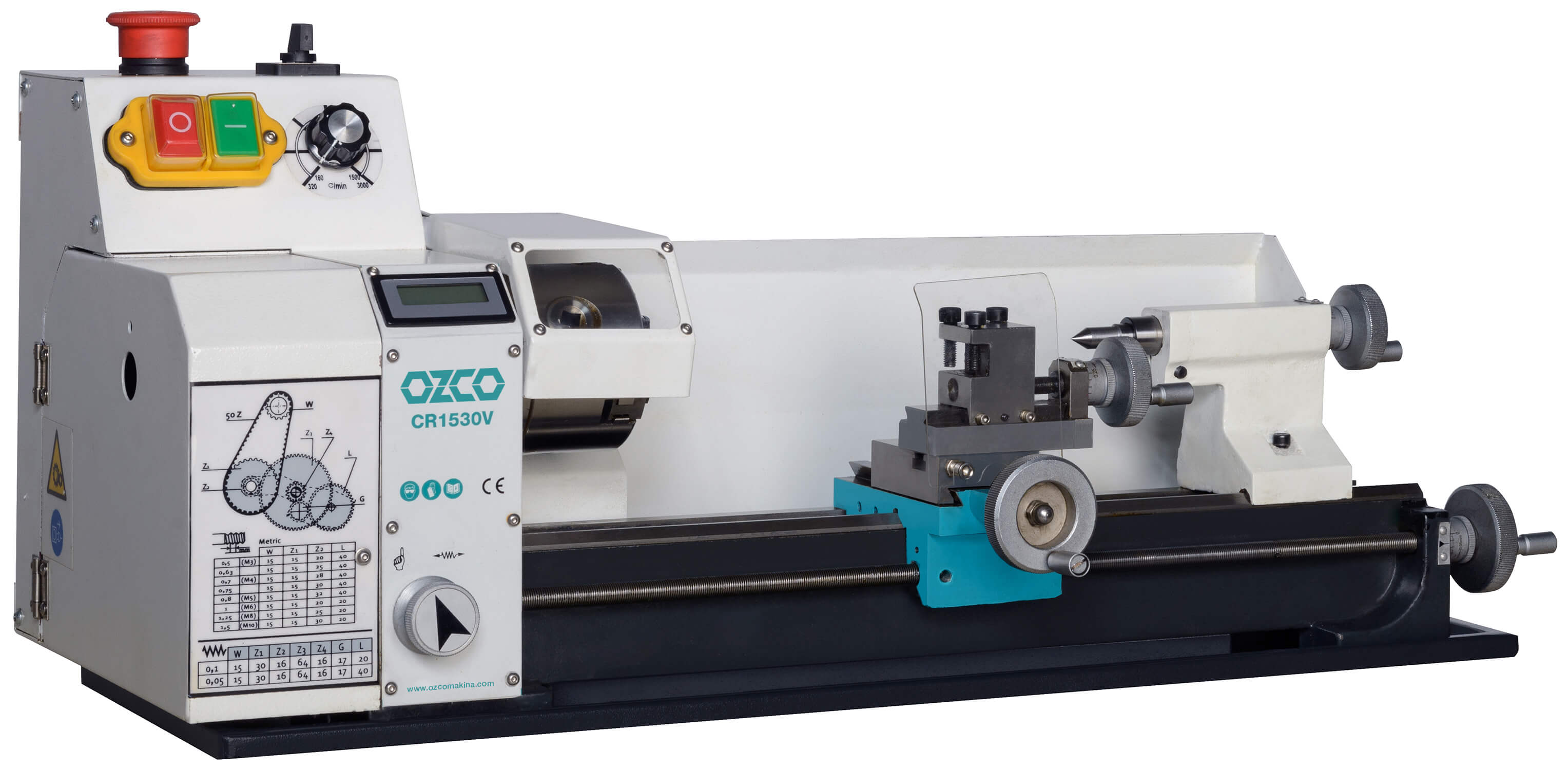

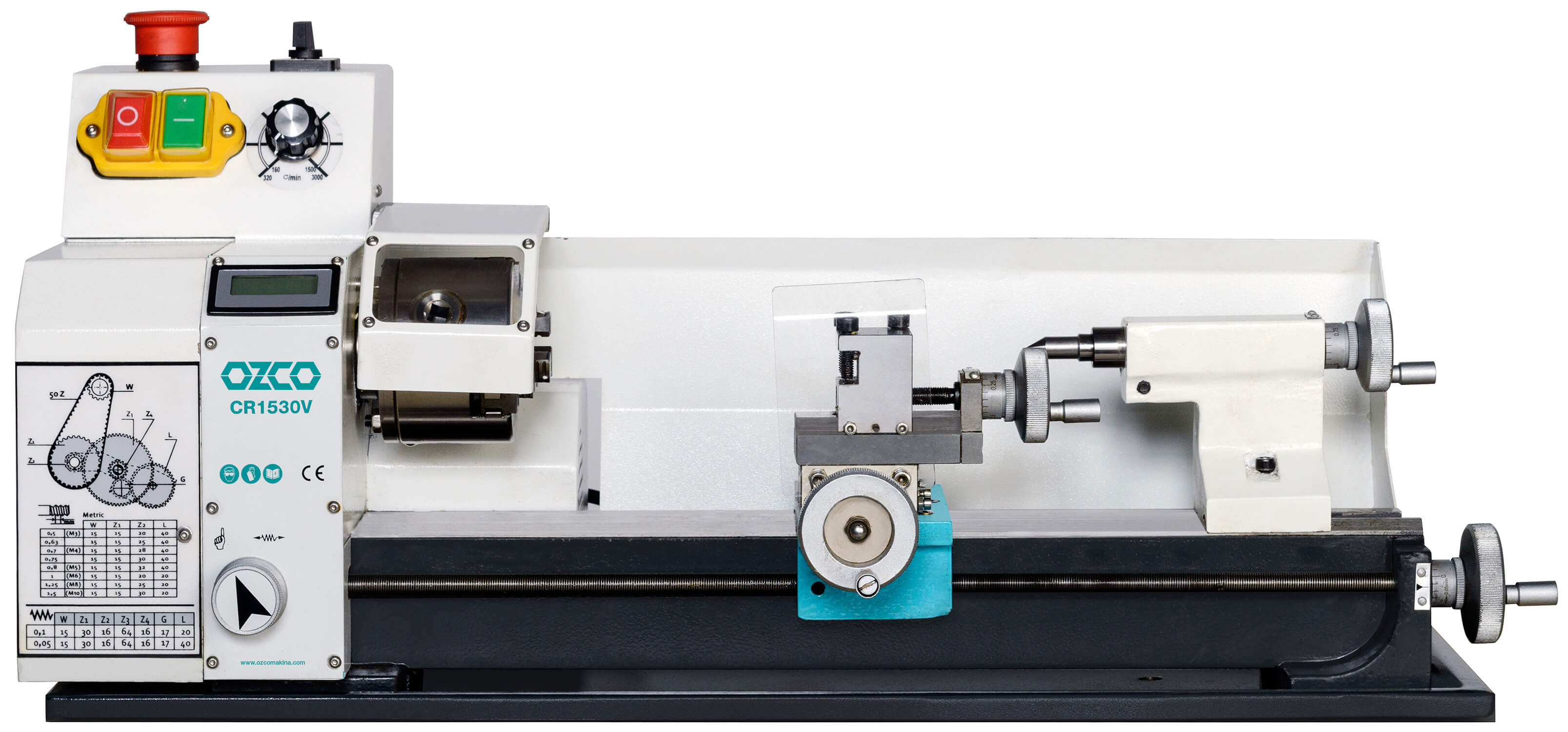

CR1530V Lathe Machine

Hardened and ground guideways, Vario speed control, and a precision spindle deliver superior performance. Features include forward/reverse rotation, automatic feed, threading capability, and a CE-compliant safety system. Optional parts are available.

Whatsapp

CR1530V LATHE MACHINE

Hardened and ground guideways

Vario (stepless) speed adjustment

Powerful and precise spindle

Forward / Reverse rotation

Carriage with automatic feed

Thread cutting

Emergency stop button

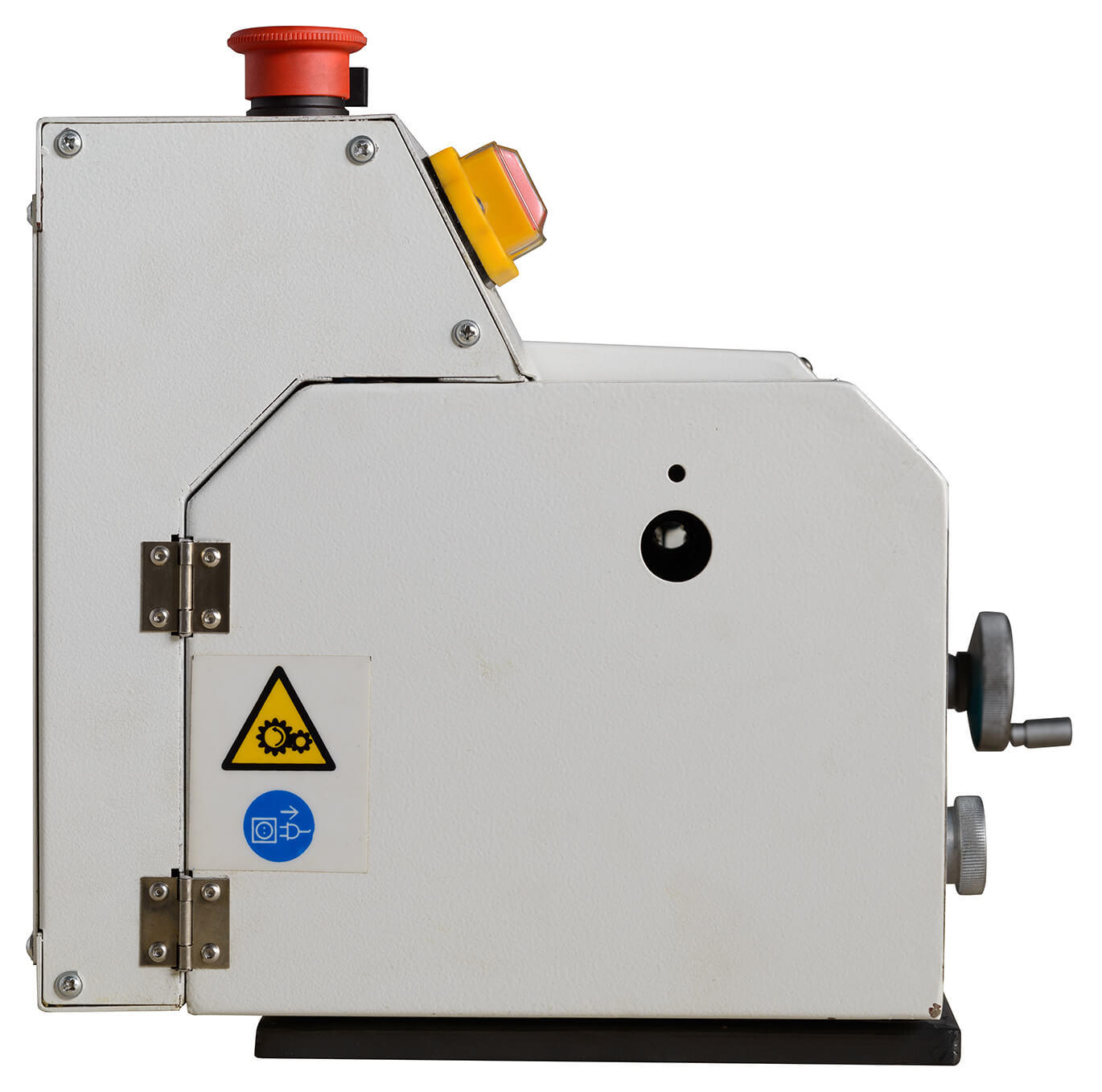

Rear safety guard

Chip tray

CE compliant

DELIVERY CONTENT

3-jaw chuck Ø80 mm

Fixed center

Live center

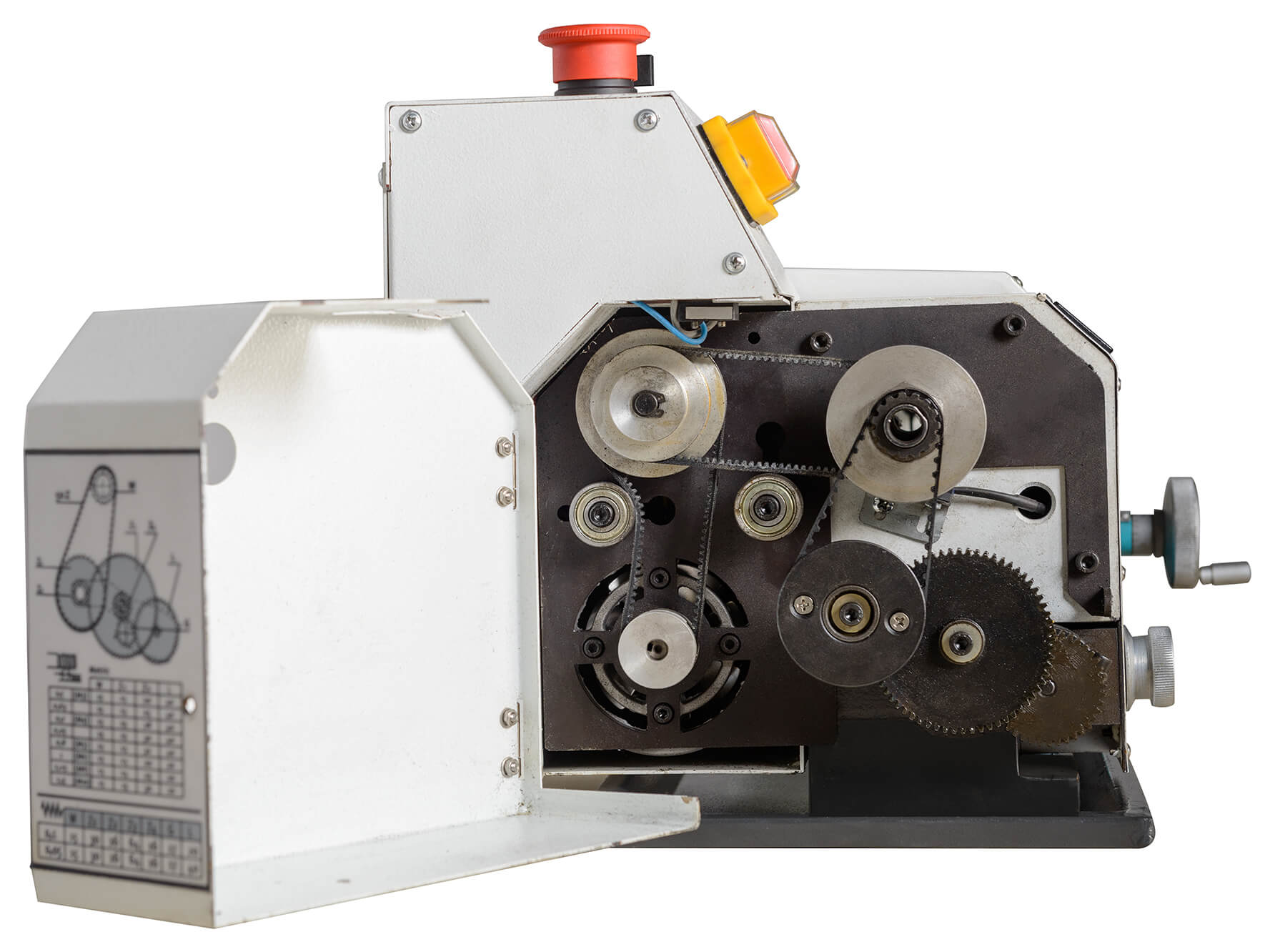

Thread cutting gears

Rear safety guard

Chip tray

Tool kit

OPTIONAL ACCESSORIES

310101: MK1 live center

Motor Power 450 W, 230 V w
Diameter Over Bed 150 mm
Bed Width 70 mm
Distance Between Centers 300 mm
Speed 120–3000 rpm
Speed Type Variable speed
Spindle Taper MK1
Spindle Bore 11 mm
Cross Slide Travel 40 mm
Compound Slide Travel 55 mm
Tailstock Taper MK1
Tailstock Quill Travel 30 mm
Longitudinal Feed 0.05–0.1 mm/rev
Metric Thread Pitch & Range 0.5–1.5 mm
Inch Thread Pitch & Range
Tool Post Size 8 mm
Machine Dimensions (LxWxH) 560x320x290 mm
Weight 24 kg
