CR2870V Benchtop Lathe Machine CR2870V Benchtop Lathe Machine
CR2870V Benchtop Lathe Machine

EMOS GROUP
Innovative Technologies with Strong Solutions,
Assurance in Quality!

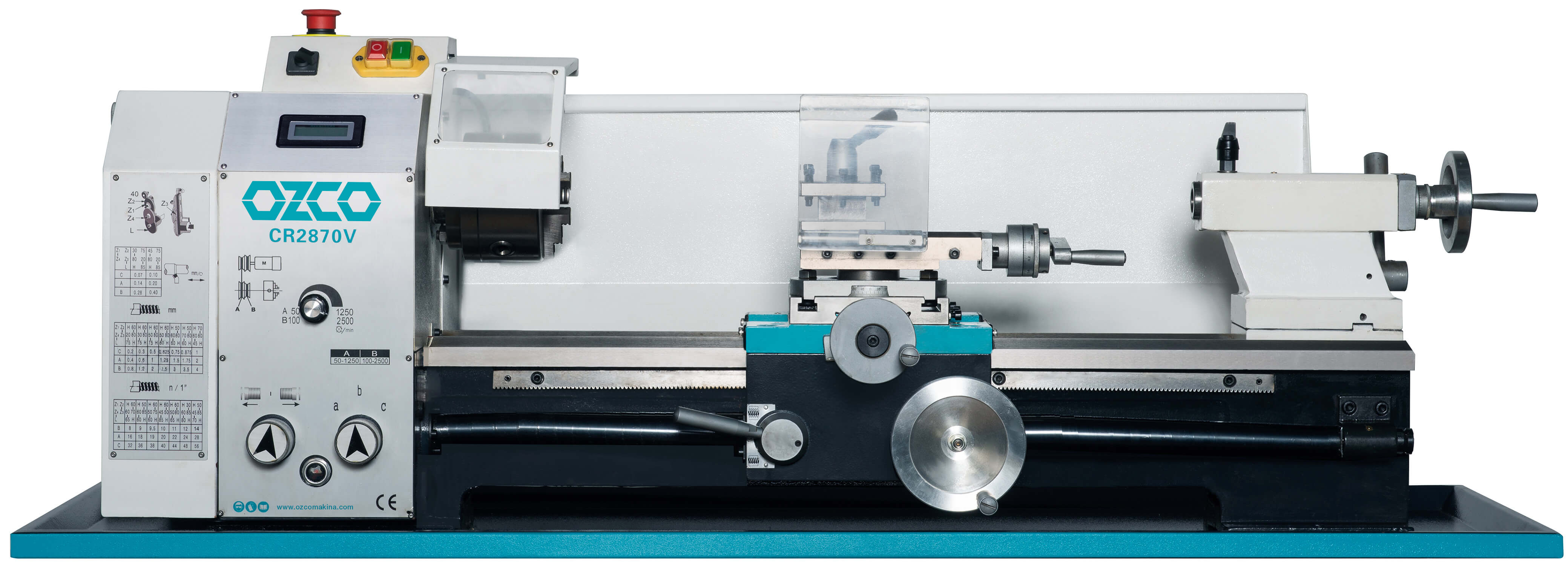

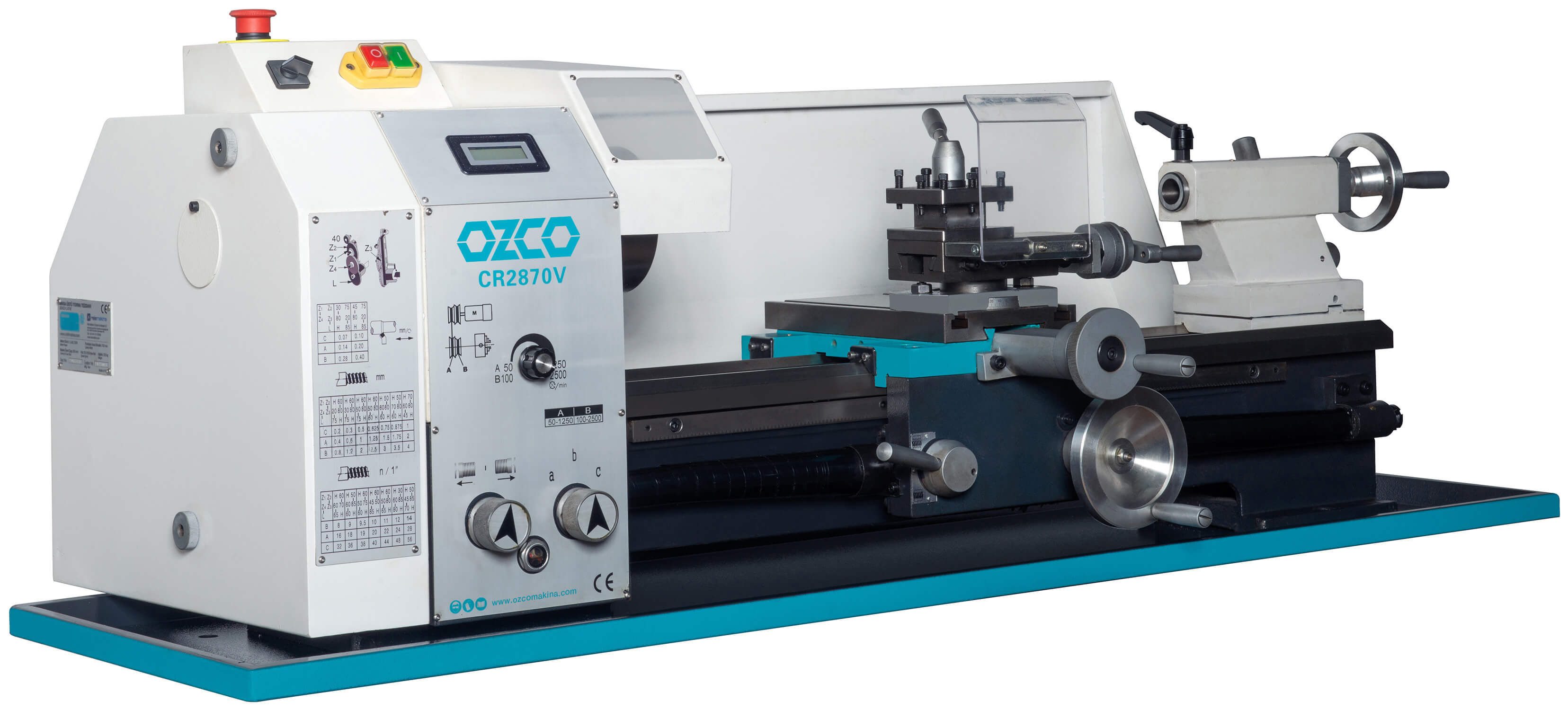

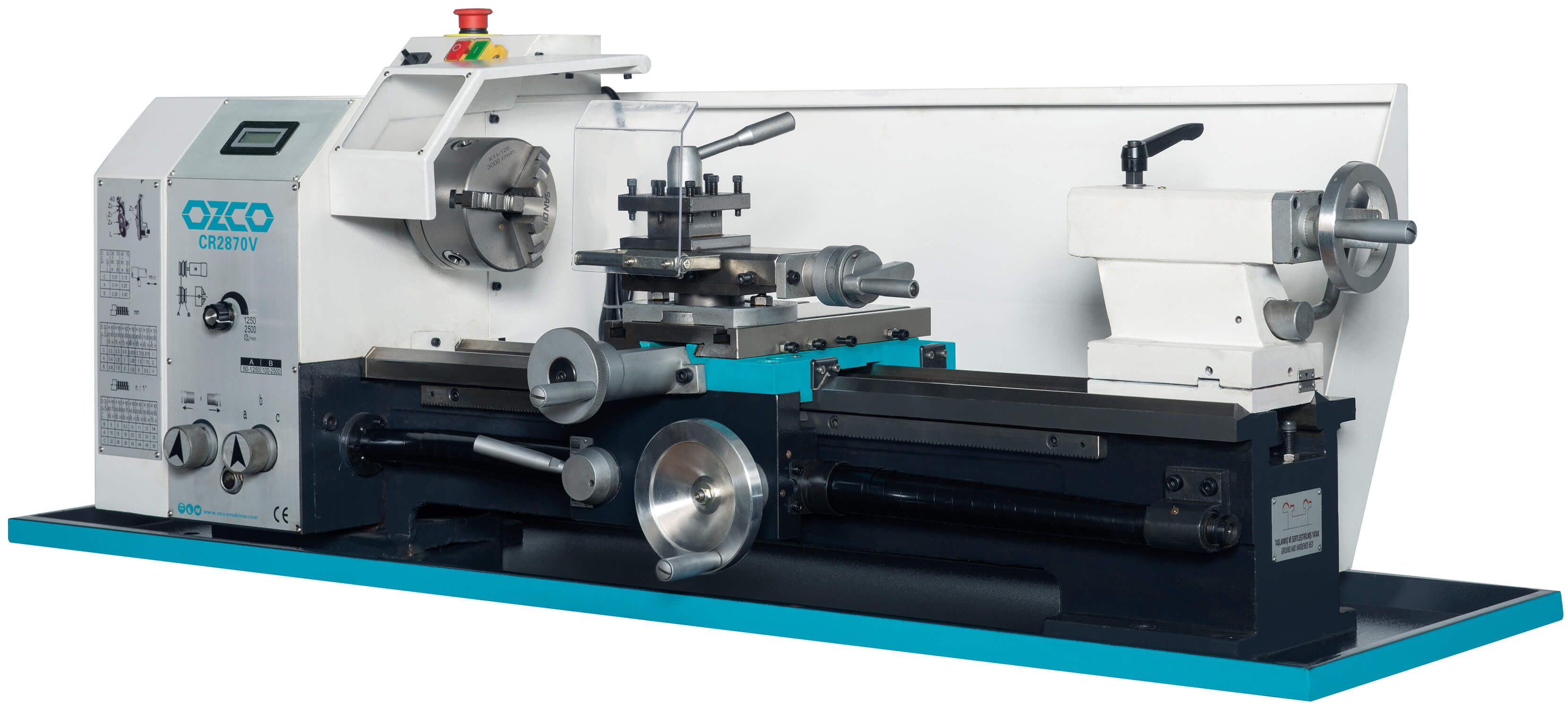

CR2870V Benchtop Lathe Machine

Equipped with hardened guideways, a powerful spindle, forward/reverse rotation, carriage with automatic feed, threading function, and an emergency stop button. The shipment includes a 3-jaw chuck, fixed/live centers, thread cutting gears, and a chip tray. CE compliant. Optional parts are available.

Whatsapp

CR2870V BENCHTOP LATHE MACHINE

Hardened and ground guideways

Powerful and precise spindle

Forward / Reverse rotation

Carriage with automatic feed

Thread cutting

Emergency stop button

Rear safety guard

Chip tray

CE compliant

DELIVERY CONTENT

3-jaw chuck Ø125 mm

Fixed center

Live center

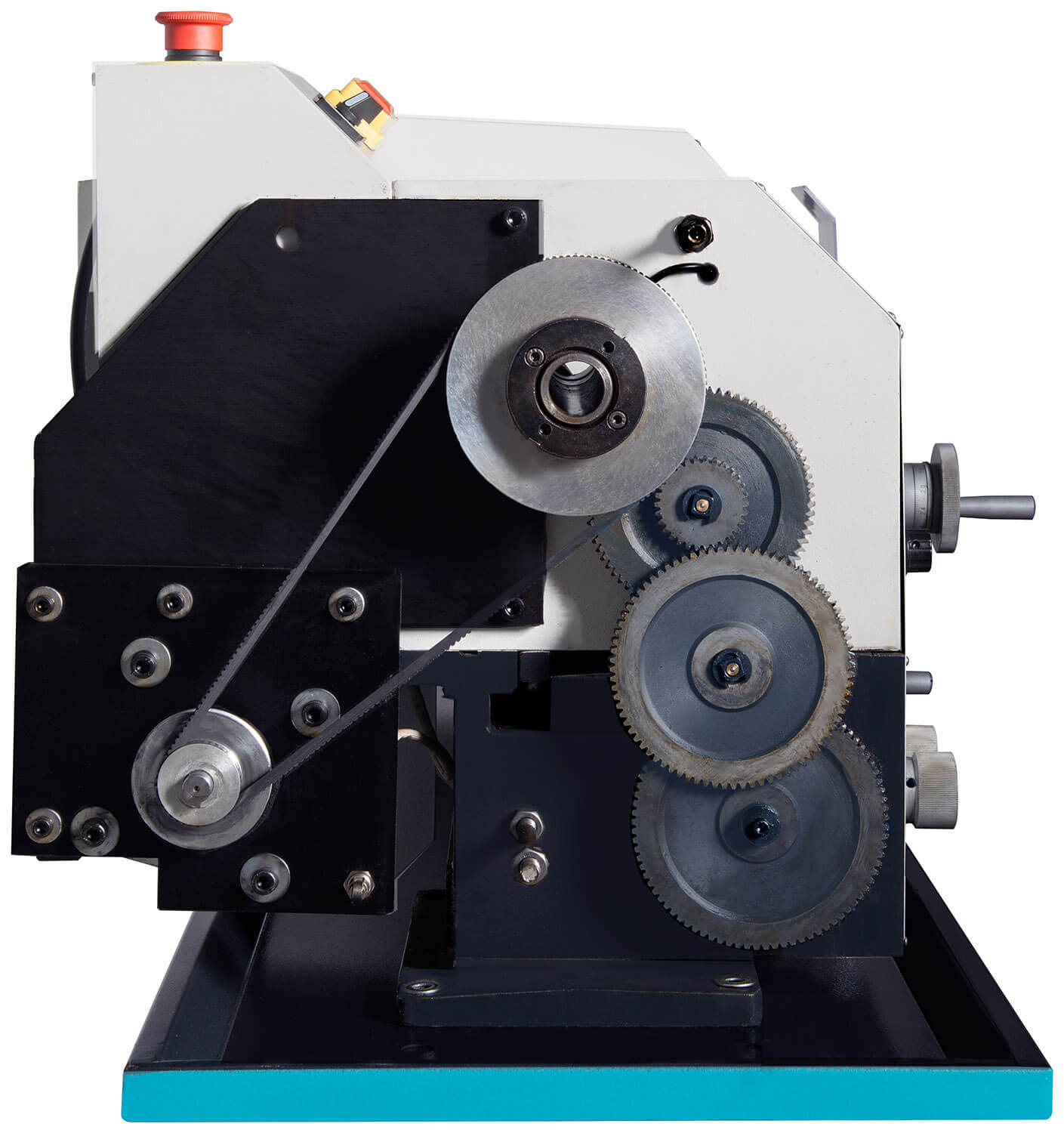

Thread cutting gears

Rear safety guard

Chip tray

Tool kit

OPTIONAL ACCESSORIES

310102: MK2 live center

320102: 20x90 mm quick-change tool post set

395070: Lathe stand

Motor Power 1.5 kW, 230 V w
Diameter Over Bed 280 mm
Bed Width 180 mm
Distance Between Centers 700 mm
Speed 50–2500 rpm
Speed Type Variable speed
Spindle Taper MK4
Spindle Bore 26 mm
Cross Slide Travel 60 mm
Compound Slide Travel 160 mm
Tailstock Taper MK2
Tailstock Quill Travel 85 mm
Longitudinal Feed 0.07–0.4 mm/rev
Metric Thread Pitch & Range 0.2–3.5 mm
Inch Thread Pitch & Range 8–56 tpi
Tool Post Size 16 mm
Machine Dimensions (LxWxH) 1370x640x535 mm
Weight 200 kg
