    ENDV Serisi

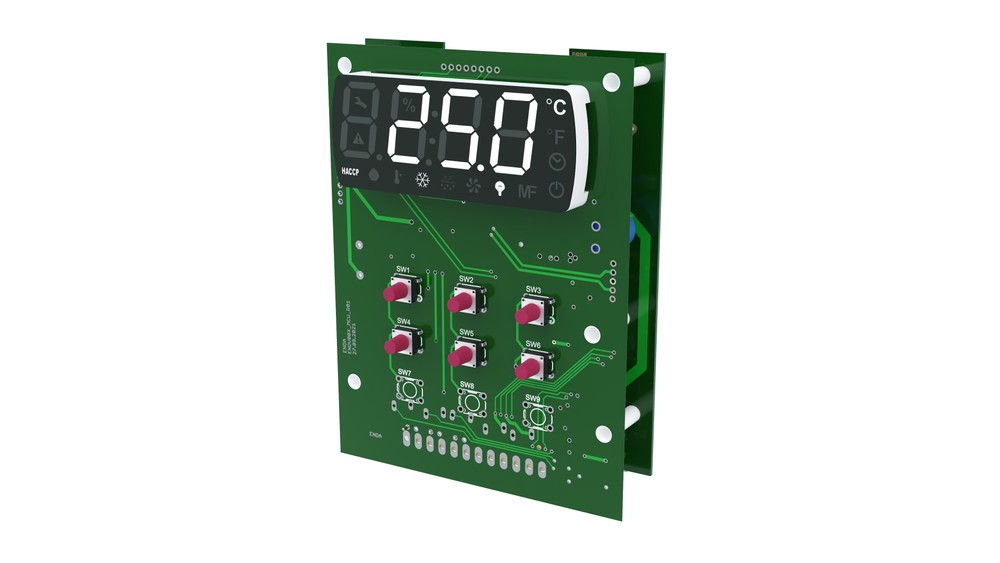

    80x99 mm Sized PCB, 3 NTC Inputs, Maximum 5 Relay Outputs, Defrost Control Device

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

    ENDV SERIES

    Sold as a PCB board

    On-Off cooling control

    ENDV003 has 3 relay outputs for Cooling, Defrost, and Fan control. ENDV004 has 4 relay outputs for Cooling, Defrost, Fan, and Aux control. ENDV005 has 5 relay outputs for Cooling, Defrost, Fan, Aux, and Lighting control.

    The AUX output can be used for defrost, alarm, or lighting output.

    There are 3 NTC probe inputs for Cabinet, Evaporator, and Condenser.

    Digital input for door control.

    Multifunctional digital input.

    Offset settings can be made for NTC probe inputs.

    Compressor protection parameters can be set.

    Compressor operation, stop, or periodic operation can be adjusted in case of probe failure.

    Manual fast cooling is available.

    Defrost can be done based on time and evaporator temperature or manually.

    The lower and upper limits of the set value can be adjusted.

    Defrost duration and interval can be adjusted.

    Lower and upper alarm limits dependent on the set value can be adjusted.

    Temperature can be displayed in °F or °C.

    Ability to store up to 9 Haccp alarm records.

    RS-485 ModBus RTU communication protocol (optional).

    RTC real-time clock (optional).

    CE certified according to EN standards.

    Ambient/Storage Temperature 0 ... 50 °C / -25 ... 70 °C
    Relative Humidity Operates in environments with up to 65% humidity at 50 °C
    Protection Class EN 60529 standard
    Altitude Up to 2000m
    Supply Voltage 90-250V AC 50/60Hz
    Power Consumption 2VA
    Connection Socket terminal
    Scale -60.0...150.0 °C
    Sensitivity 0.1 °C (Selectable as 0.1 °C or 1 °C)
    Accuracy ±1 °C
    Time Accuracy ±1%
    Relay Life No load 10,000,000 operations; 277V AC, 20A resistive load 100,000 operations
    No load 30,000,000 operations; 250V AC, 8A resistive load 300,000 operations
    Control Type Compressor, fan, defrost, aux, and lighting control with set values and digital inputs
    Control Method On-Off control
    Hysteresis Adjustable between 1...20.0 °C
