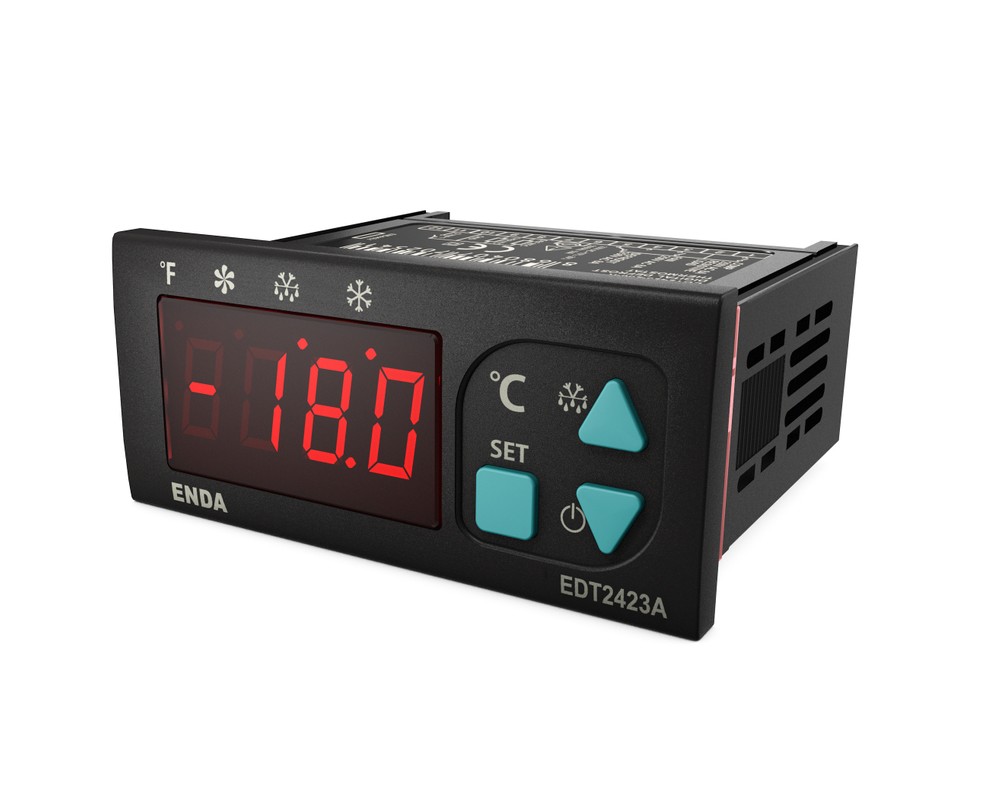

    EDT2423A

    77x35 mm Sized, 2 NTC Inputs, DIN Input, 3 Relay Outputs Defrost Control Device

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

    EDT2423A

    On-Off control

    Three relay outputs for cooling, defrost, and fan control

    Two NTC probe inputs for cooling and defrost control

    Offset setting available for NTC probe input

    Compressor protection parameters can be set

    Compressor operation, stopping, or periodic operation can be set in case of probe failure

    Lower and upper limits of the set value can be adjusted

    Selectable smart defrost feature

    Defrost based on time and evaporator temperature or manual defrost

    Defrost time and interval can be adjusted

    Lower and upper alarm limits can be adjusted based on the set value

    Temperature can be displayed in °F or °C

    External alarm, defrost start, and fan operation can be activated with a digital input

    Parameter transfer via ENDAKEY without supplying power to the device

    RS-485 ModBus RTU communication protocol feature (optional)

    CE certified according to EN standards

    Ambient/Storage Temperature 0 ... 50 °C / -25 ... 70 °C
    Relative Humidity Works in humidity up to 80% at 31 °C, decreasing linearly to 50% at 40 °C
    Protection Class Front panel: IP62, Rear panel: IP20 (according to EN 60529)
    Height Up to 2000m
    Power Supply Voltage 230V AC +10% -20% 50/60Hz or 10-30V DC / 8-24V AC
    Power Consumption 5VA
    Connection Screw terminal
    Scale -60.0 ... 150.0 °C
    Sensitivity 0.1 °C (can be selected as 0.1 °C or 1 °C)
    Accuracy ±1 °C
    Time Accuracy ±1%
    Compressor Relay Output 250V AC, 8A (for resistive load), NO 1/2hp 240V AC (for inductive load)
    Defrost Relay Output 250V AC, 8A (for resistive load), NO+NC 1/2hp 240V AC (for inductive load)
    Fan Relay Output 250V AC, 8A (for resistive load), NO 1/2hp 240V AC (for inductive load)
    Relay Life No load: 30,000,000 switchings; 250V AC, 8A resistive load: 100,000 switchings
    Control Type Single set-point, alarm, and fan control
    Control Method On-Off control
    Hysteresis Adjustable between 1...20.0 °C
    Mounting Type Fixed by compression to the panel
    Dimensions G77xY35xD61 mm
    Weight Approximately 190g (with packaging)
    Housing Material Self-extinguishing plastics used
