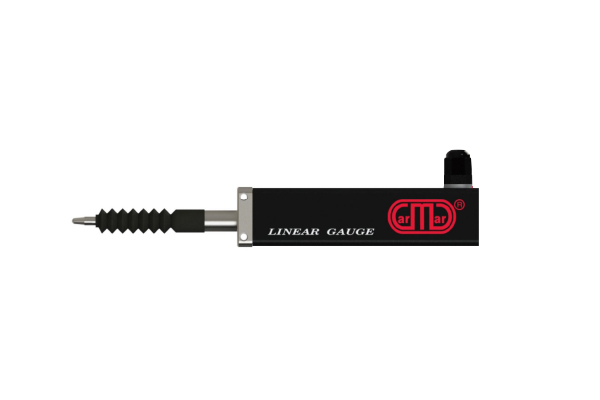

    DLG CONTACT MEASUREMENT PROBE

    MICROSENSOR contact measurement probes provide high-accuracy detection of absolute differences between the outer surfaces of materials and a reference surface through direct contact.

    In addition to basic measurements such as distance, thickness, position, and height, they enable fast and easy acquisition of more complex measurements like flatness, form, and difference.

    By utilizing different stroke lengths, they allow precise measurements without the need for expensive measurement devices or systems.

    DLG CONTACT MEASUREMENT PROBE APPLICATION AREAS

    Height measurement

    Position and location measurement

    Thickness, width, vibration, and dimensional measurements

    Probes with selectable contact tips and adjustable measuring force according to the material surface

    Flatness, surface form, curvature, and difference measurements between two surfaces

    Resolution ± 0.2 µm, ± 0.1 µm, ± 0.5 µm, ± 1.0 µm
    Measuring Force < 5N
    Voltage Output 5 VDC ±5 %
    Measuring Range 25 mm, 30 mm
    Signal Output Digital: A / B - RS422, Analog: A / B - 1Vpp
    Accuracy ± 3 µm, ± 5 µm
    Serial Communication RS422
