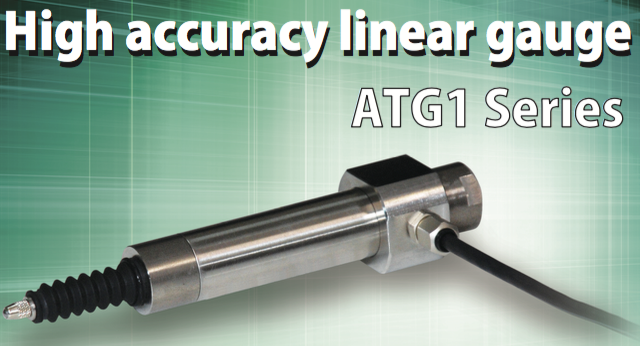

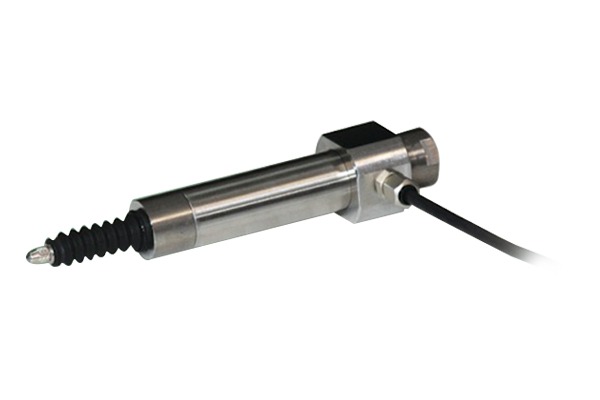

    ATG1 CONTACT MEASUREMENT PROBE

    SANTEST contact measurement probes provide high-accuracy detection of absolute differences between the outer surfaces of materials and a reference surface through direct contact.

    In addition to basic measurements such as distance, thickness, position, and height, they enable fast and easy acquisition of more complex measurements like flatness, form, difference, runout, and diameter.

    It features a 10 mm movement stroke.

    It allows precise measurements without the use of expensive measurement devices or systems.

    ATG1 CONTACT MEASUREMENT PROBE APPLICATION AREAS

    Height measurement

    Position and location measurement

    Thickness, width, inner diameter, outer diameter, and dimensional measurements

    Runout, oscillation, and vibration measurements

    Probes with selectable contact tips and adjustable measuring force according to the material surface

    Flatness, surface form, curvature, and difference measurements between two surfaces

    Resolution ± 1.0 µm
    Measuring Force 1.3N...2.6N
    Voltage Output 12-24 VDC ±10%
    Measuring Range 10 mm
    Linearity ±2 µm
    Repeatability 1 µm
    Accuracy ± 2 µm
