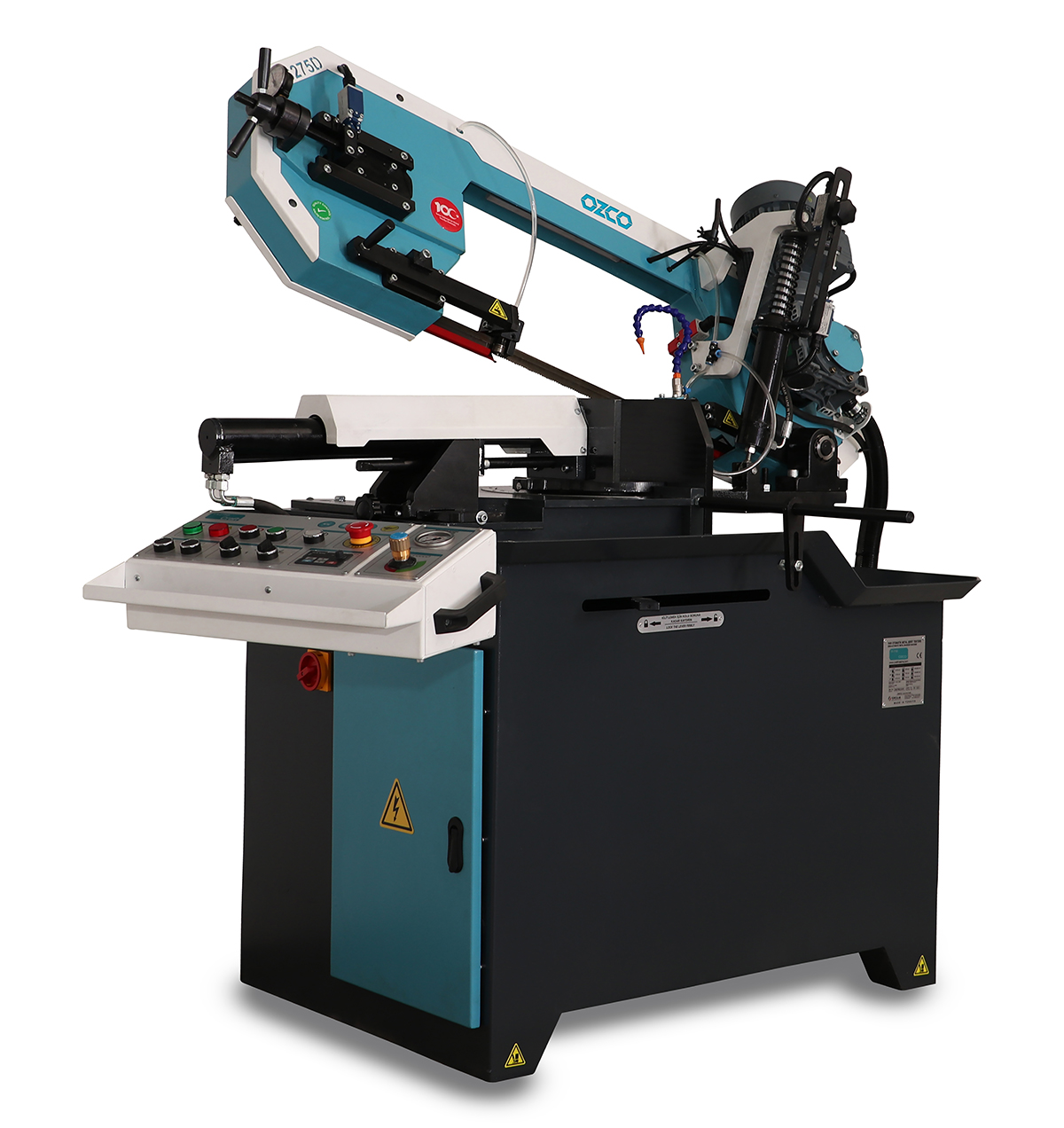

    TS275D Semi-Automatic Band Saw (Angle Cutting)

    It offers easy usage with inverter speed control, LED-lit cutting area, and an ergonomic control panel. It is equipped with hydraulic-mechanical blade tension, a local motor, a powerful reducer, and a high-quality electrical system. Complies with CE standards, locally produced.

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

    TS275D SEMI-AUTOMATIC BAND SAW (ANGLE CUTTING)

    Inverter speed control/Vario system with unlimited steps in the range of 20-80 m/min

    Digital speed indicator

    Single cutting line in the vice

    LED light illuminating the cutting area

    Hydraulic-mechanical blade tension and saw pressure indicator

    Ergonomic control panel for ease of use

    Specially designed cast pulleys

    High-quality hydraulic system for adjusting feed speed

    Domestic main motor, powerful reducer

    High-quality cooling pump

    High-quality electrical system

    Chip brush

    Complies with CE standards

    Manufactured in TURKEY

    SHIPMENT CONTENT

    Adjustable support arm

    Bi-metal saw blade mounted on the machine

    3-roller 1m material support table

    OPTIONAL ACCESSORIES

    Spare Saw Blade:

    36103/4 : 27x0.9x3160mm - 3/4 teeth

    31604/6 : 27x0.9x3160mm - 4/6 teeth

    31605/8 : 27x0.9x3160mm - 5/8 teeth

    Motor Power 1.5 kW, 380 V
    Cutting Angle -45° / +60°
    Cutting Angle Adjustment From the center
    Head Down Speed Adjustment/Feed Hydraulic
    Saw Blade Dimensions 27x0.9x3160 mm
    Cutting Capacity 0° Round: 275mm; Square: 275x275mm; Rectangle: 350x150mm
    Cutting Capacity 45° Round: 180mm; Square: 160x160mm; Rectangle: 260x120mm
    Cutting Capacity 60° Round: 120mm; Square: 120x120mm; Rectangle: 140x120mm
    Speed 20-80 rpm
    Stages Inverter / Unlimited
    Material Feed Height 960 mm
    Vice Opening Range 350 mm
    Vice Height 145 mm
    Hydraulic Motor Power 0.18 kW
    Machine Dimensions 1500x1750x1050 mm
    Cooling Motor Power 0.12 kW
    Weight 460 kg
