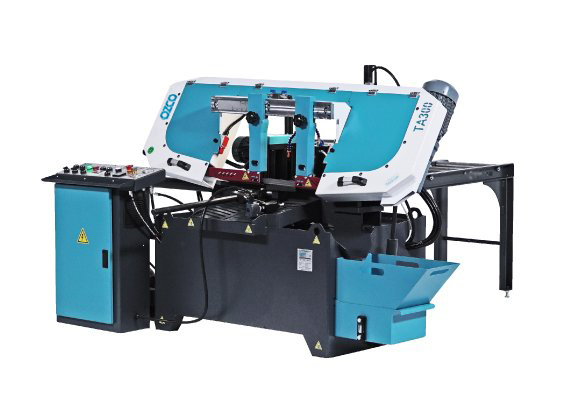

    TA300 Fully Automatic Band Saw (Straight Cutting)

    It offers precise control with an inverter system and digital indicator in the 20-100 m/min speed range. It provides practical use with hydraulic material clamping and automatic movement features. With a local motor and dual bearing system, it is durable. Complies with CE standards, locally produced.

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

    TA300 FULLY AUTOMATIC BAND SAW (STRAIGHT CUTTING)

    Inverter speed control/Vario system with unlimited steps in the range of 20-100 m/min

    Digital speed indicator

    Hydraulic/Automatic material clamping

    Hydraulic/Automatic head movement

    Automatic material feeding

    Ergonomic control panel for ease of use

    Specially designed cast pulleys

    Hydraulic-mechanical blade tension

    Domestic production powerful motor

    Domestic production specially designed reducer

    Material feeding system strengthened with special design dual bearing system and long-lasting feeding balls

    Adjustable vice pressure system with clamping pressure adjustment according to material type

    Double bearing pressed band saw system that increases cutting precision

    High-quality cooling motor made in Italy

    Chip brush

    Schneider electrical system

    Complies with CE standards

    Manufactured in TURKEY

    SHIPMENT CONTENT

    5-roller material support table

    2-roller material support table

    Bi-metal saw blade mounted on the machine

    OPTIONAL ACCESSORIES

    Spare Saw Blade:

    36603/4 27x0.9x3660mm - 3/4 teeth

    36604/6 27x0.9x3660mm - 4/6 teeth

    36605/8 27x0.9x3660mm - 5/8 teeth

    Main Motor Power 1.5 kW, 380 V
    Cutting Capacity Round: 300 mm; Square: 300x300 mm; Rectangle: 250x375 mm
    Speed 20-100 m/min rpm
    Stages Inverter/Unlimited
    Material Feed Height 760 mm
    Vice Opening Range 0-375 mm
    Vice Height 190 mm
    Drive Motor Power 0.37 kW
    Hydraulic Motor Power 0.18 kW
    Cooling Motor Power 0.12 kW
    Machine Dimensions 2005x1260x1275 mm
    Weight 660 kg
