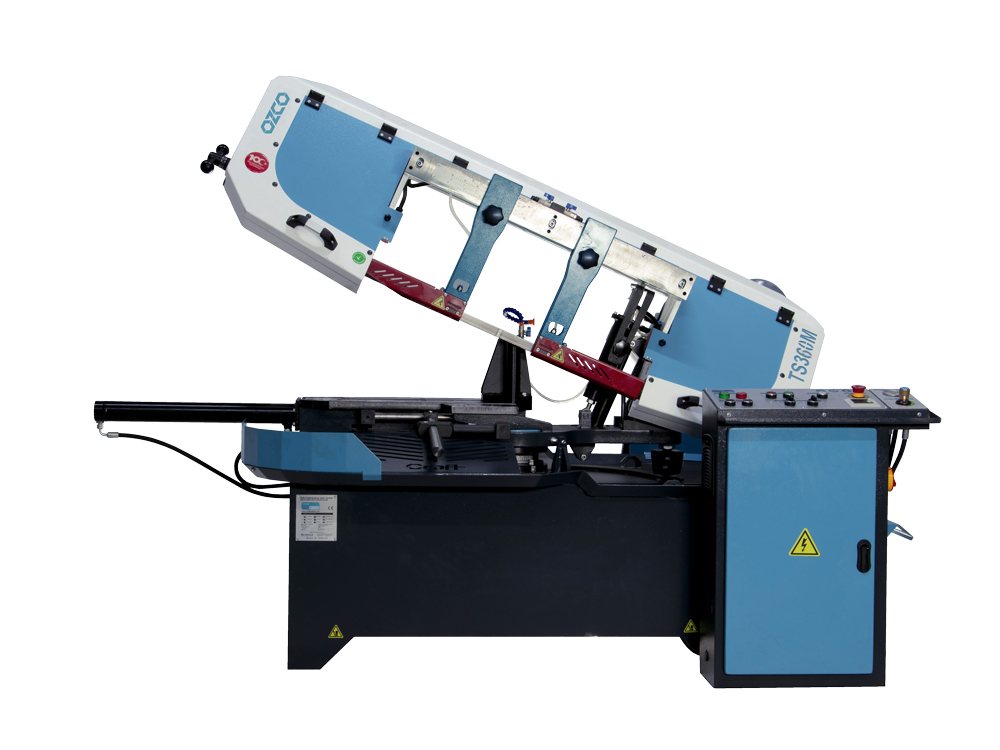

    TS360M Semi-Automatic Band Saw (Mitre Cutting)

    It offers high cutting precision with inverter-controlled speed adjustment, hydro-mechanical blade tensioning, and a dual bearing blade system. The durable structure with locally produced motor and reducer ensures reliability, while the Schneider electrical system provides safety.

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Sonraki Ürün

    TS360M SEMI-AUTOMATIC BAND SAW (MITRE CUTTING)

    Unlimited steps in the range of 20-100 m/min with inverter-controlled speed adjustment/Vario system

    Digital speed indicator

    Ergonomic control panel for ease of use

    Custom-designed cast pulleys

    Hydro-mechanical blade tensioning

    Locally produced powerful motor

    Locally produced custom-designed reducer

    Adjustable vise pressure system with pressure adjustment according to material type

    Double bearing pressed blade saw system for enhanced cutting precision

    High-quality cooling motor made in Italy

    Chip brush

    Schneider electrical system

    Compliant with CE standards

    OPTIONAL ACCESSORIES

    Spare Saw Blades:

    45603/4

    34x1.1x4560mm- 3/4 teeth

    45604/6

    34x1.1x4560mm- 4/6 teeth

    45605/8

    34x1.1x4560mm- 5/8 teeth

    Motor Power 2.2 kW, 380 V w
    Cutting Angle Adjustment 0° - 45°
    Head Descend Speed Adjustment/Feed Hydraulic
    Saw Blade Dimensions 34x1.1x4560 mm
    Cutting Capacity 0° Round: 360mm; Square: 360x360 mm; Rectangular: 440x360 mm
    Cutting Capacity 45° Round: 290mm; Square: 260x260 mm; Rectangular: 230x360 mm
    Speed 20 - 100 m/min rpm
    Gear Steps Inverter-controlled / Unlimited
    Material Feeding Height 760 mm
    Vise Opening Range 0 - 520 mm
    Vise Height 230 mm
    Hydraulic Motor Power 0.18 kW
    Cooling Motor Power 0.12 kW
    Machine Dimensions 2630x1520x1330
    Weight 920 kg
