    Vert-X 13E Series Angle Sensor

    The Vert-X 13E Series Angle Sensor performs angular (rotary) measurements with high precision using a magnetic, non-contact mechanical principle. Since it operates without couplings, shafts, or any physical contact, it is resistant to vibrations and shocks, and offers an infinite mechanical lifespan.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

    VERT-X 13E SERIES ANGLE SENSOR

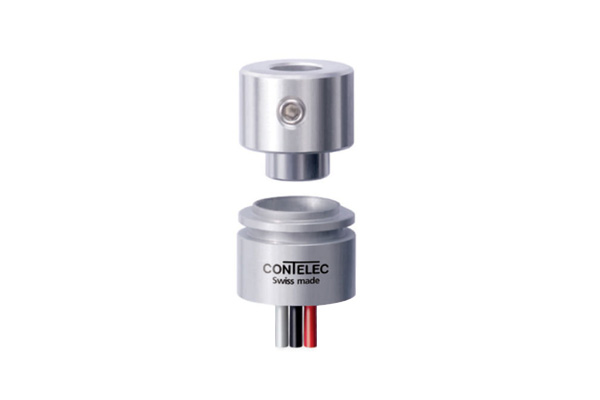

    The Vert-X 13E Series Angle Sensor performs non-contact, precise angular measurements based on a magnetic principle.

    Thanks to the non-contact mechanical measurement method, no coupling or shaft is required.

    It is resistant to environmental factors such as shock, vibration, dust, and humidity.

    It features an electrical measurement angle of 0...360°.

    Its compact and small design makes it highly suitable for tight installation spaces.

    Since measurement is performed with two separate parts that do not touch each other, it offers an infinite mechanical lifespan.

    Analog: ratiometric 10% ... 90% VDC with 12-bit resolution.

    PWM: 12-bit resolution.

    SPI: 14-bit resolution.

    Operates with a 5 VDC supply voltage.

    High linearity value: 0.5%.

    Swiss Made – Manufactured in Switzerland with high quality standards.

    Resolution Analog: 12 bit, PWM: 12 bit, SPI: 14 bit
    Operating Temperature -40°C ... +80°C
    Electrical Connection Cable
    Linearity ±0.3% FS
    Repeatability 0.1°
