    Vert-X 13 Series Angle Sensor

    The Vert-X 13 Series Angle Sensor performs angular (rotary) measurements with high precision using a magnetic, non-contact mechanical principle. Featuring an integrated 3.175 mm shaft and a non-contact measurement method, it offers an exceptionally long service life.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

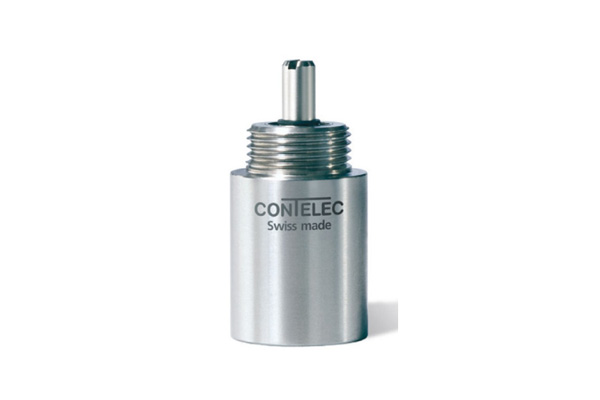

    VERT-X 13 SERIES ANGLE SENSOR

    The Vert-X 13 Series Angle Sensor performs non-contact, precise angular measurements based on a magnetic principle.

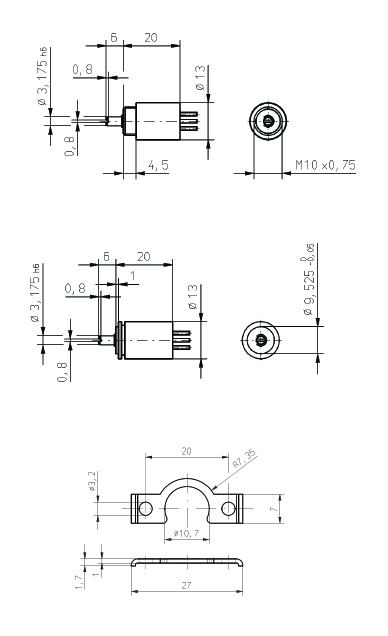

    It features a robust shaft with a diameter of 3.175 mm.

    It is resistant to environmental factors such as shock, vibration, dust, and humidity.

    Offers an electrical measurement angle of 0...360°.

    Capable of continuous mechanical rotation.

    Its compact and small design allows easy installation in confined spaces.

    Thanks to the non-contact measurement principle, it provides an extremely long service life: over 360 million movements.

    Analog: ratiometric 10% ... 90% VDC with 12-bit resolution.

    PWM: 12-bit resolution capability.

    SPI: 14-bit resolution capability.

    Powered by 5 VDC supply voltage.

    High linearity value: 0.3%.

    Swiss Made – Manufactured in Switzerland to high quality standards.

    Resolution 12 bit, 14 bit
    Operating Temperature -40 … +105 °C
    Electrical Connection Cable
    Linearity ±0.3% FS
    Repeatability 0.1°
