    Vert-X 21 Series Angle Sensor

    The Vert-X 21 Series Angle Sensor performs angular (rotary) measurements with high precision using a non-contact mechanical design based on magnetic principles. It offers integrated shaft options of 3.175 mm, 6 mm, or 6.135 mm, and since it operates on a non-contact measurement principle, it provides a very long lifespan.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

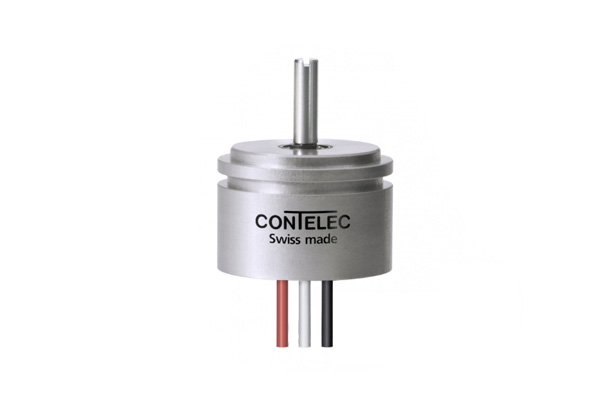

    VERT-X 21 SERIES ANGLE SENSOR

    The Vert-X 21 Series Angle Sensor performs precise, non-contact angular measurements based on magnetic principles.

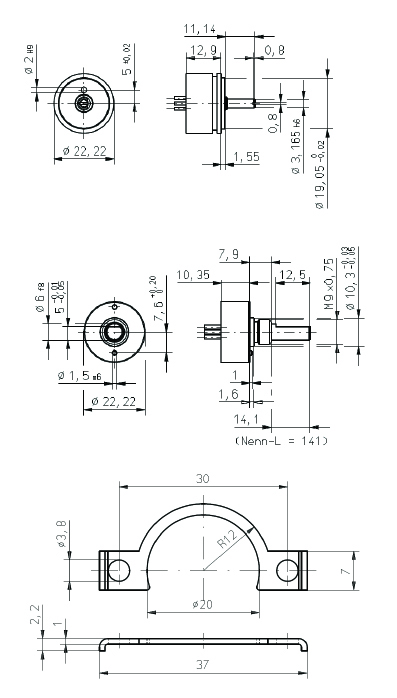

    It features a robust shaft with a diameter of 3.175 mm.

    It is insensitive to environmental factors such as shocks, vibrations, dust, and humidity.

    It has an electrical measurement range of 0...360°.

    Since it has the same dimensions as the PL300 series potentiometers, it can be directly replaced.

    It is mechanically capable of continuous rotation.

    Its compact and small design allows for easy installation in tight spaces.

    As it uses a non-contact measurement principle, it offers a very long lifespan with over 360 million movement cycles.

    Analog: ratiometric 10% ... 90% VDC, with a 12-bit resolution.

    PWM: 12-bit resolution.

    SPI: 14-bit resolution.

    It offers a 5 VDC standard or ratiometric output and features a 3.3 VDC supply voltage for minimized power consumption.

    High linearity value: ±0.3%.

    Swiss Made || Manufactured in Switzerland with high-quality standards.

    Resolution Analog: 12 bit PWM: 12 bit SPI: 14 bit
    Operating Temperature -40 … +125 °C
    Electrical Connection Cable
    Linearity ±%0.3 FS
    Repeatability 0.1°
