    MAS Series Multi -Turlu Absolte Rotary Encoder, Analog Output

    MAS series multi -round Absolte Rotary Encoder measures an analog output magnetic principle.50 or 58 mm body diameter, absolute (absolute) measurement, shaft or Hollow shaft, compact design properties.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

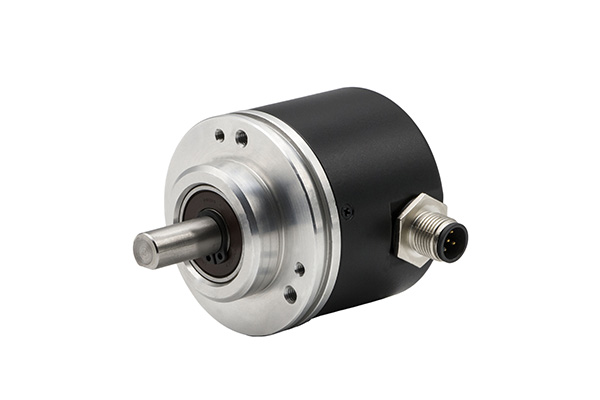

    MAS Series Multi -Turlu Absolte Rotary Enkoder, Analog Output

    The MAS series Multi -Tour Absolte Rotary Encoder measures absolute (absolute) measurement with analog output magnetic principle.

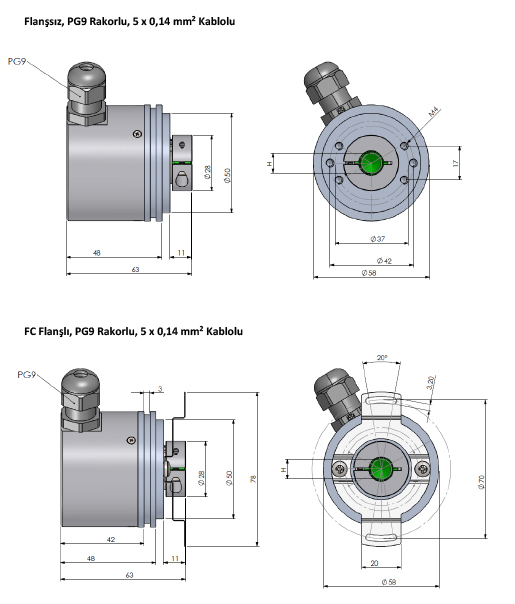

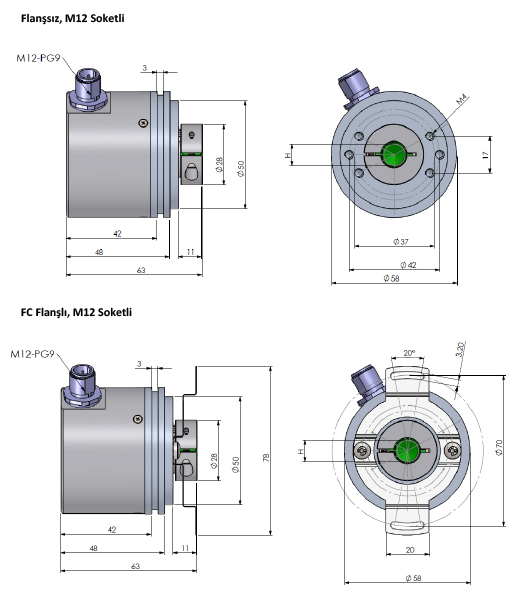

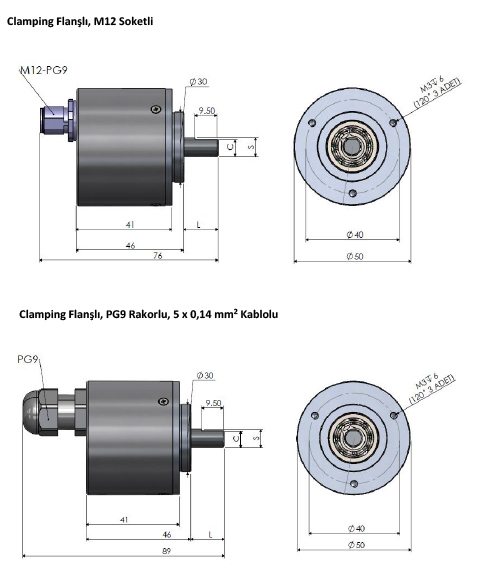

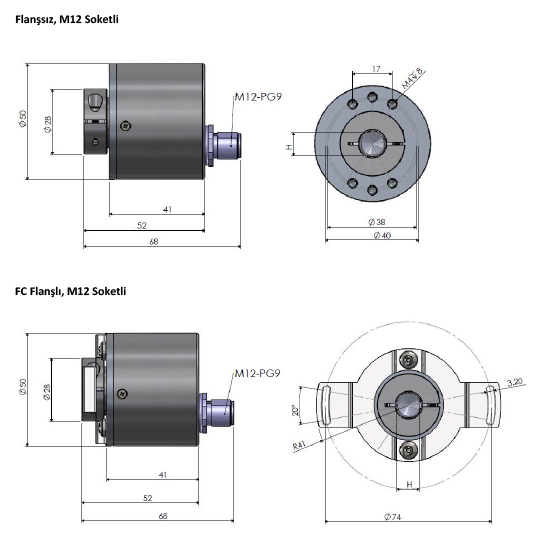

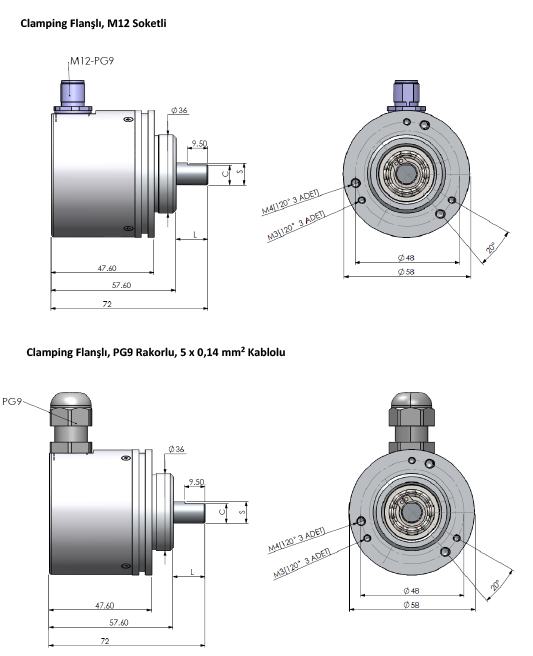

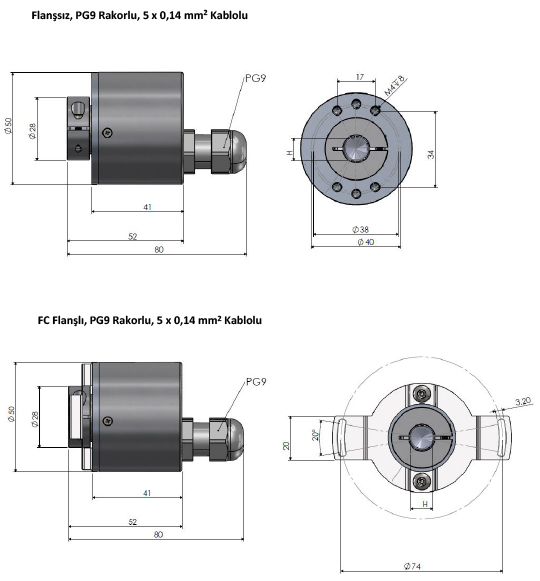

    It has 50 mm or 58 mm body diameter options.

    It has a shaft or semi -hollow shaft options.

    It has 16 bit angular resolution.

    It offers 0.02 ° sensitivity in the desired number of multiple rounds.

    4-20 MA, 0-5 V, 0.5-4.5 V and 0-10 V have analog output options.

    It has high sensitivity.

    IP64 has a protection class.

    Working temperature -20 ° C ...+70 ° C
    Feeding voltage 15… 26 VDC
    Current consumption 60 mA
    Reverse Polarity Protection There is
    Angular resolution 16 bit
    Answer Frequency 500 Hz
    Electrical interface 4-20 MA, 0-10 V, 0.5- 4.5 V, 0-5 V, 20-4 MA, 10-0 V, 4.5-0.5 V, 5-0 V
    Recurrenceness 0.1 °
    Truth ± 0.5 °
