    MAH S 50 Rotary Enkoder Multi -Room Absolte Enkoder

    MAH S 50 Multi -Tour Absolte Rotary Enkoder measures with magnetic principle.50 mm body diameter, absorption (absolute) measurement, shaft, canopen or analog output, compact design properties.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

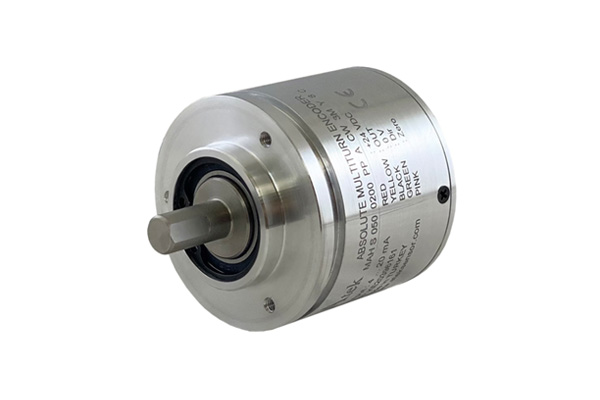

    MAH S 50 MULTI -TURKED ABSOLUTE ROTARY ENKODER

    MAH S 50 Multi -Tour Absolte Rotary Enkoder Magnetic principle makes absolute (absolute) measurement.

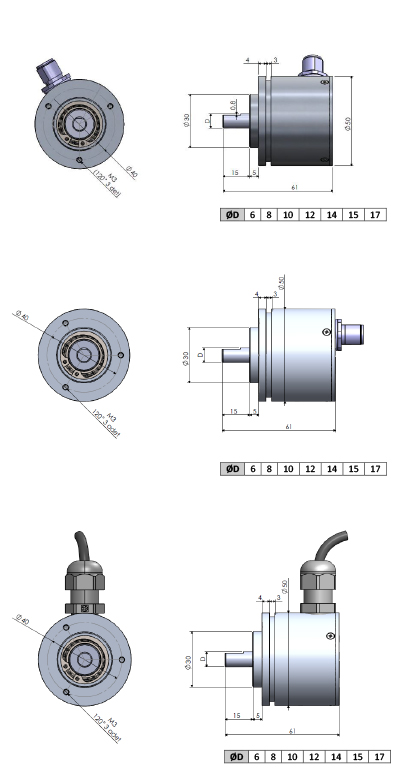

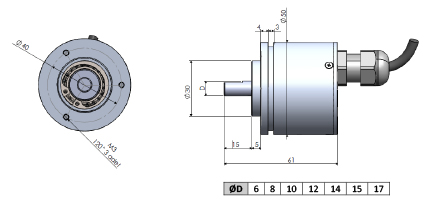

    It has a body diameter of 50 mm.

    There are 6, 8, 10, 12, 14, 15 or 17 mm shaft options.

    There is an analog or canopen output option.

    It offers 0.02 ° sensitivity in the desired number of multiple rounds.

    Analog has 16 bit resolution.

    For Canopen, there is 1… 14 bit in a single round and 1… 32 bit resolution in many rounds.

    It has high sensitivity.

    IP68 has a high protection class.

    Working temperature -45… +85 ° C
    Feeding voltage For analogue: 15… 26 VDC, for Canopen: 15… 30 VDC
    Current consumption 60 mA
    Reverse Polarity Protection There is
    Angular resolution For analog: 16 bit for canopen: 1 ... 14 bit in a single round, 1 ... 32 bit can be selected in many rounds
    Answer Frequency 500 Hz
    Electrical interface Canopen Analog: 4-20 MA, 0-10 V, 0.5- 4.5 V, 0-5 V, 20-4 MA, 10-0 V, 4.5-0.5 V, 5-0 V
