    SAS 51 Series Programmable Single Tomped Absolte Rotary Enkoder

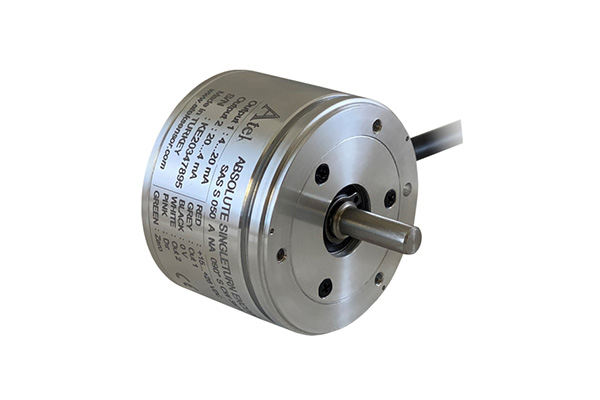

    SAS 51 series programmable single -round Absolte Rotary Enkoder is absolutely measured by magnetic principle.50 mm body diameter, canopen or analog output, compact design properties.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

    SAS 51 Series Programmable Single Tomped Absolte Rotary Enkoder

    SAS 37 Series programmable Single -round Absolte Rotary ENCODER Magnetic principle makes absolute (absolute) measurement.

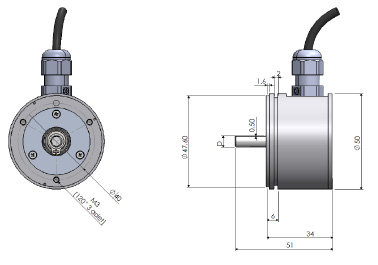

    It has a body diameter of 50 mm.

    It has shaft diameter options between 5 mm and 8 mm.

    It has 14 bit angular resolution options.

    There is an analog or canopen output option.

    Redundand is out of output.

    Analog output signal forms can be determined by 3 points selected.

    It has high sensitivity.

    IP67 has a protection class.

    Working temperature -20 ° C ...+70 ° C
    Feeding voltage 15… 26 VDC
    Current consumption 40 mA
    Reverse Polarity Protection There is
    Angular resolution 14 bit
    Answer Frequency 333 Hz
    Electrical interface Canopen Analog: 4-20 MA, 0-10 V, 0.5- 4.5 V, 0-5 V, 20-4 MA, 10-0 V, 4.5-0.5 V, 5-0 V
    Measurement range 0 ... 360 °
