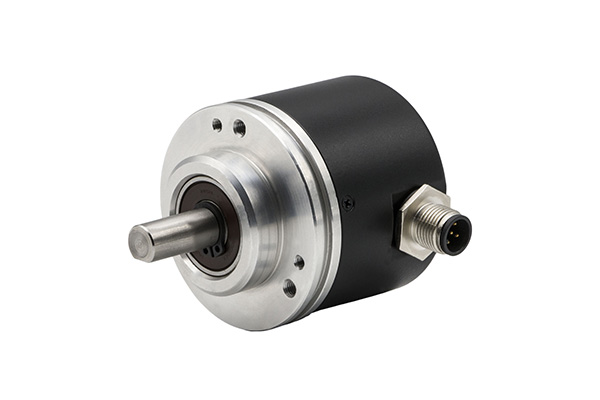

    MAS Series Multi -Turlu Absolte Rotary Encoder, Canopen output

    The MAS series multi -round Absolte Rotary Encoder measures the magnetic principle from Canopen.50 or 58 mm body diameter, absolute (absolute) measurement, shaft or Hollow shaft, compact design properties.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

    MAS Series Multi -Turlu Absolte Rotary Enkoder, Canopen output

    MAS series multi -round Absolte Rotary Encoder measures absolute (absolute) measurement with a magnetic principle from Canopen.

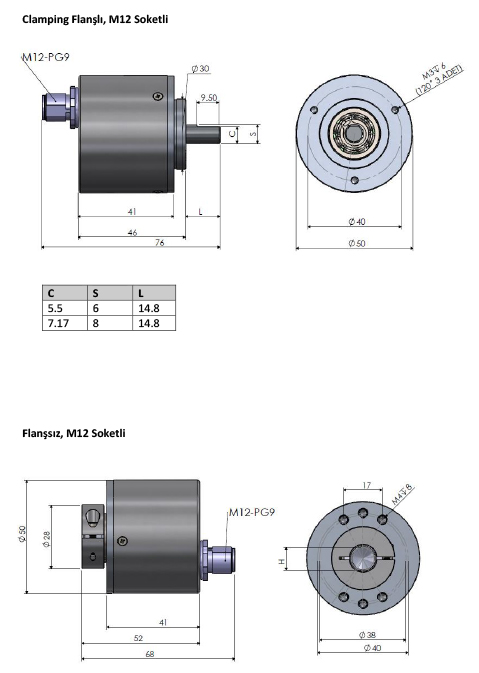

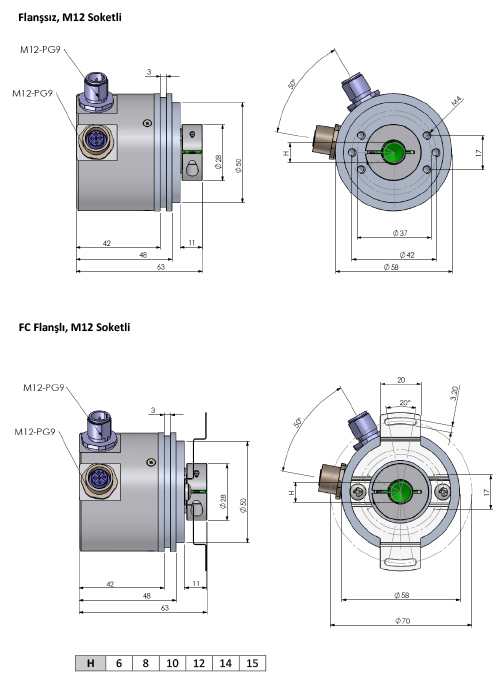

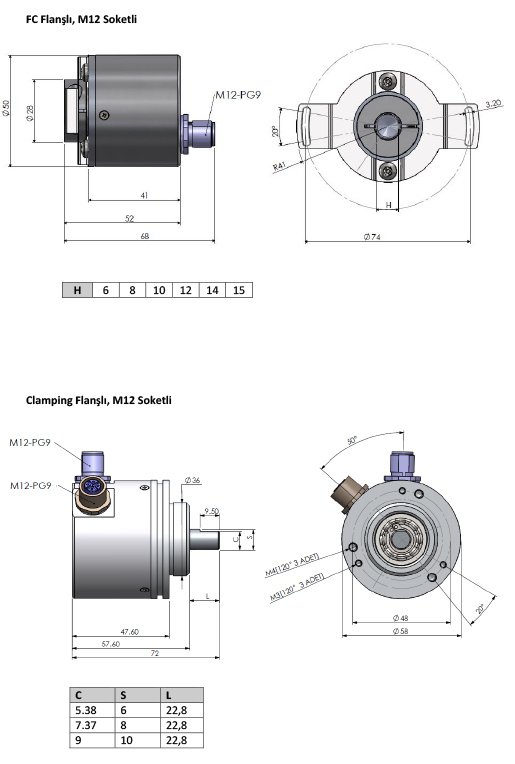

    It has 50 mm or 58 mm body diameter options.

    There are options for shaft or semi -hollow shaft.

    It has a sensitivity of 0.02 ° in the desired number of multiple rounds.

    Canopen is the signal output.

    High precision.

    There is an IP64 protection class.

    Working temperature -20 ° C ...+70 ° C
    Electrical connection M12 5 Pin Male and M12 5 Pin Female Socket
    Feeding voltage 15… 30 VDC
    Answer Frequency 500 Hz
    Recurrenceness 0.1 °
    Truth ± 0.5 °
