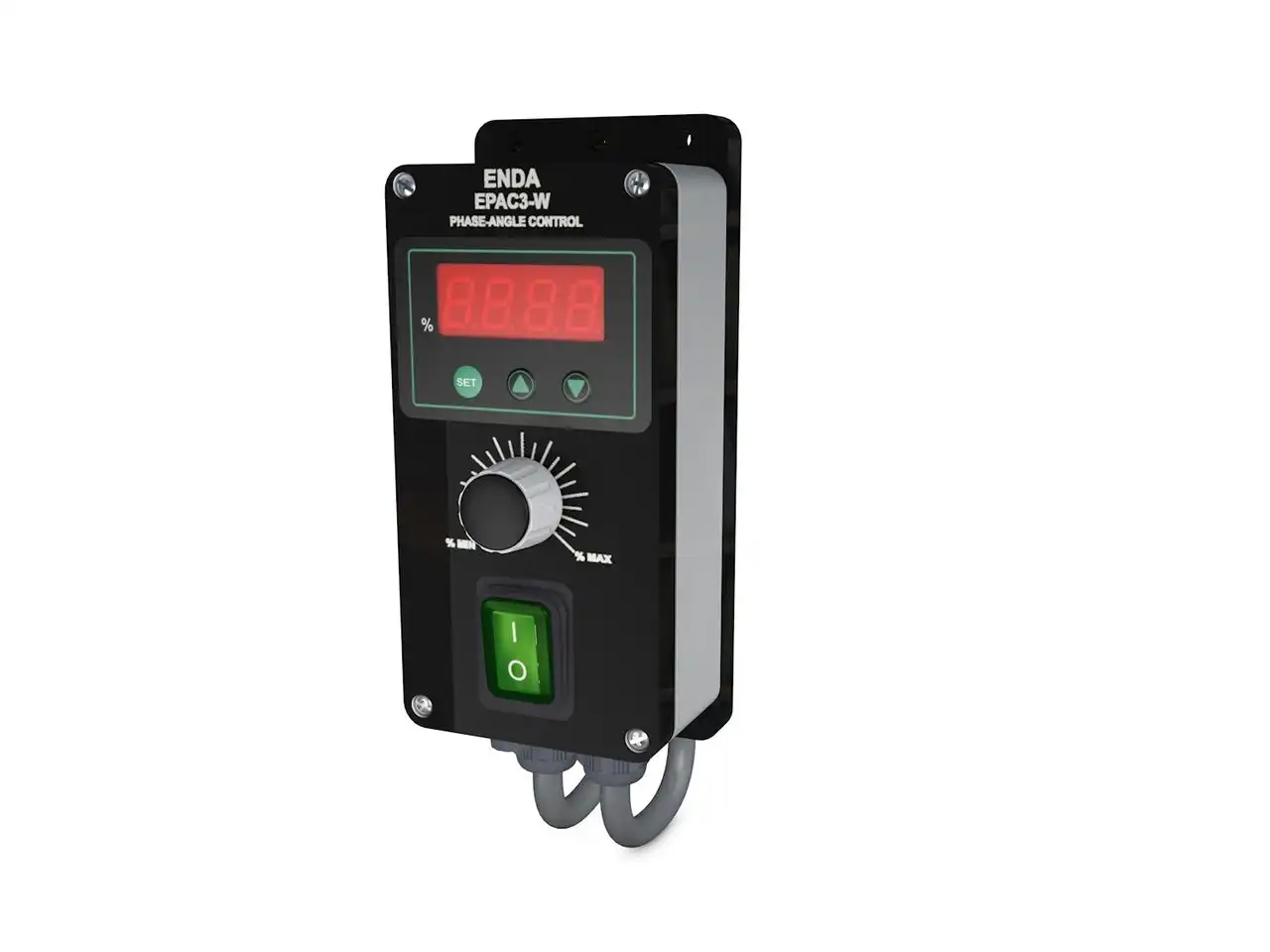

    EPAC3-W-F

    New External Casing, Load Current and Vibration Frequency Selectable Vibration Coil Controller

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün

    EPAC3-W-F

    Phase angle control

    4A AC or 15A AC load current

    Selectable 110V AC or 220V AC load voltage

    Selectable 50Hz or 100Hz vibration frequency

    Control via adjustment knob or 0-10V DC analog signal

    Digital input for stopping load output

    Selectable digital input (for NO/NC contacts or NO/NC sensors)

    Plug-in power cable and motor connection cable

    Connection cable for digital input

    Ability to set maximum and minimum values for output

    Internal fuse

    4-digit LED display

    Soft Start for startup

    Varistor protection for peak voltages

    On/off switch

    CE marked according to EN standards

    Operating/Storage Temperature -25...60 °C / -30...100 °C
    Relative Humidity Up to 50% at 40 °C, increasing as temperature decreases, can operate up to 80% at 31 °C (without condensation)
    Protection Class IP20 according to EN 60529 standard
    Altitude Up to 2000m
    Supply Voltage 90-250V AC, 50/60Hz, 600VA
    Digital Input Load output can be stopped with selectable NO/NC contact or NO/NC sensor from the program. Can be used with 12V DC output from the device or external 10-30V DC voltage
    Isolation Voltage 2500 Vrms for 1 minute between input and output terminals
    Connection Socket terminal block
    Load Current, AC51/25 °C (Arms) 4A AC or 15A AC
    Load Voltage (Vrms) 110V AC or 220V AC, selectable via jumper (JP1) inside the device
    Vibration Frequency (Hz) 50/60Hz or 100/120Hz, selectable via jumper (JP1) inside the device
    Overload Current t=1s/25 °C (Arms) 150
    Non-repeating Surge Current/25°C (Arms) 400
    Voltage Drop in Transmission (Vrms) 1.6
    Leakage Current (mArms) 5
    Fuse I²t Value t=10ms (A²s) 880
    Frequency (Hz) 50-60
    Power Factor (Cosφ) >0.75
    Minimum Operating Current (mArms) 160
    Control Type Phase angle control via adjustment knob or 0-10V DC analog signal
    Mounting Type Wall-mounted type
    Dimensions G80xY160xD55 mm for ERCA1-x40PA and ERCA1-550PA-F G79xY120xD132 mm for ERCA1-570PA-F
    Weight Approx. 350g (with packaging)
    Enclosure Material Self-extinguishing plastics used
