    Emos Group Machine Tools Lathe Vibration Control EFVC
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps

    EFVC

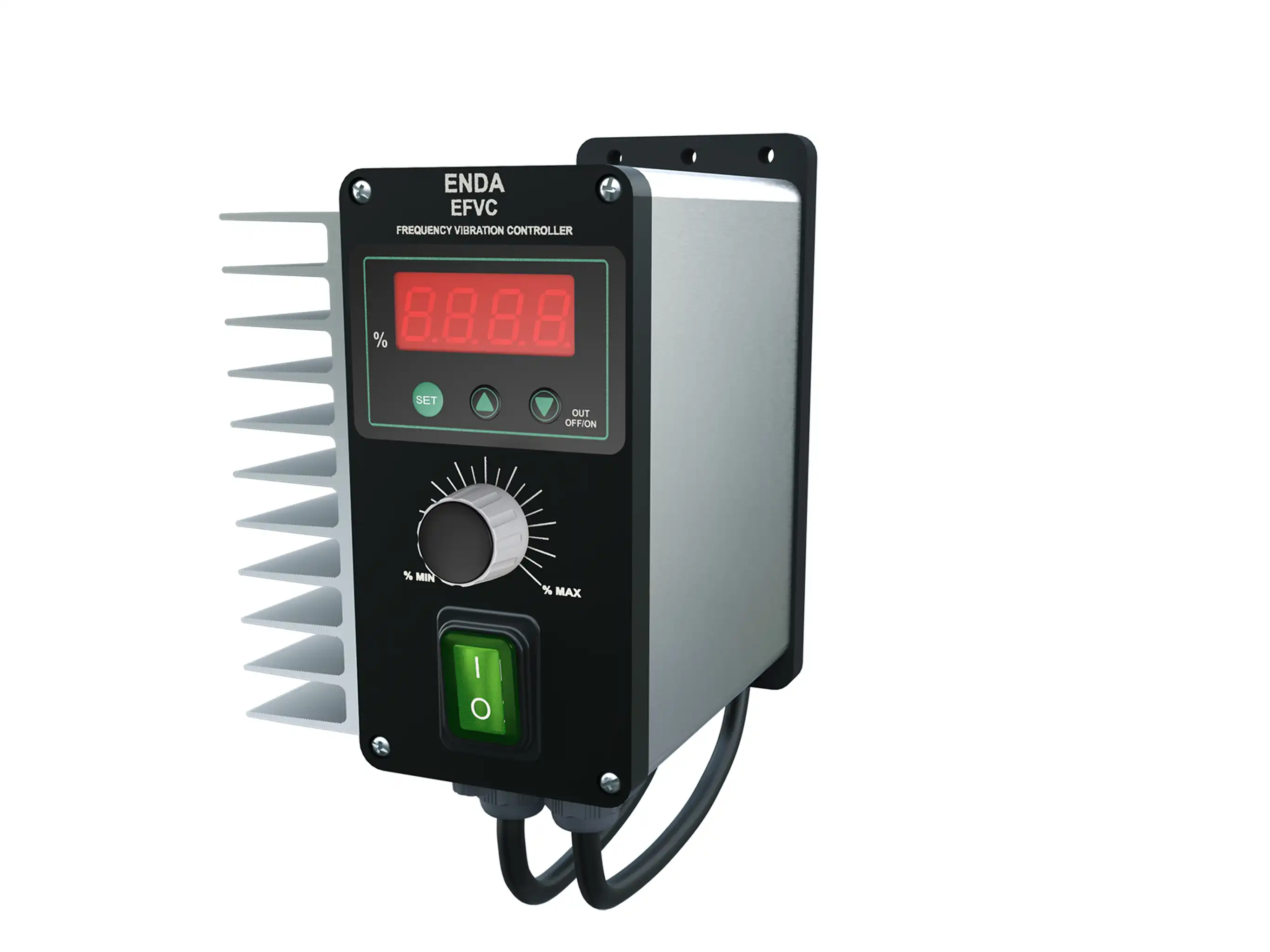

    Frequency Controlled Vibration Coil Controller

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Sonraki Ürün

    EFVC

    Frequency controlled vibration control

    3A AC and 6A AC load current

    Works with 110V AC / 220V AC supply voltage

    Adjustable vibration frequency between 30Hz and 140Hz

    Adjustable setpoint with adjustment knob, digital setpoint, or analog input

    Load output can be stopped with digital input and/or "OUT OFF/ON" button

    Selectable digital input (for NO/NC contacts)

    Solenoid valve output controlled by digital input (Optional, 24V DC/250mA)

    Plug-in power supply cable

    Connection cables for vibration coil output and solenoid valve output

    Socket connection for digital input and analog input

    Set maximum and minimum values for output

    Built-in fuse

    Soft Start for starting and Soft Stop for stopping

    Power on/off switch

    CE marked according to EN standards

    Power Supply Voltage EFVC-03-xx: 90-250V AC, 50/60Hz, 1000VA, EFVC-06-xx: 90-250V AC, 50/60Hz, 2000VA
    Dimensions EFVC-03-xx: G80xY175xD90 mm, EFVC-06-xx: G115xY175xD160 mm
    Weight EFVC-03-xx: Approximately 1500 grams (with packaging), EFVC-06-xx: Approximately 2500 grams (with packaging)
    Isolation Voltage 2500Vrms for 1 minute between input and output terminals
    Connection Plug-in cable, cable and socket connector
    Product Standard EMC/LVD TS EN 61326-1 2013 / TS EN 61010-1 2012
    Mounting Type Wall-mounted type
    Enclosure Materials Self-extinguishing plastics (according to EN 60695-11-10 standard, V-0)
    Operating/Storage Temperature 0...50°C / -25...60°C (No condensation or frosting should occur in the environment.)
    Relative Humidity 50% at 40°C, increasing to 80% at 31°C, and reducing to 50% at 40°C (No condensation should occur)
    Pollution Degree 2
    Overvoltage Category II
    Altitude Up to 2000 meters
    Protection Class IP20 according to EN 60529
    Digital Input Selectable NO/NC contacts or NO/NC sensor to stop load output and activate solenoid valve output. Can be used with +12V DC output (Maximum 30mA) from the device or external 10-30V DC voltage.
    Analog Input 0-10V DC
    Vibration Coil Output (Current (Arms)) EFVC-03-xx: 3A AC, EFVC-06-xx: 6A AC
    Vibration Coil Output (Voltage (Vrms)) 0-110V AC (for 110V AC supply) or 0-220V AC (for 220V AC supply)
    Vibration Coil Output (Frequency (Hz)) Adjustable between 30Hz and 140Hz
    Solenoid Valve Output 24V DC, 250mA (Output is given when digital input is active)
    Control Type Manual vibration control
    Vibration Amplitude Adjustment Adjustable with adjustment knob or 0-10V DC analog signal input
