    MC35S Gearbox Drill Press

    The MR8025 Radial Drill Press provides superior performance with its hydraulic clamping system and automatic lubrication system. It is a durable and safe machine tool, compliant with CE standards.

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

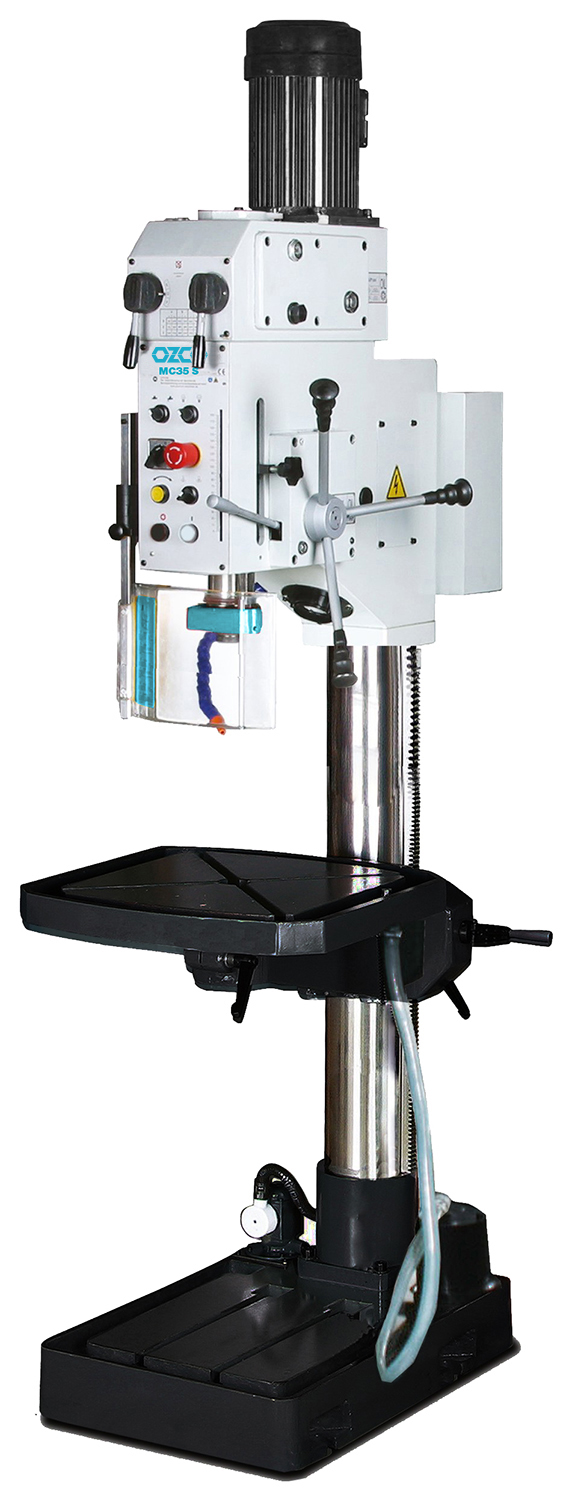

    MC35S GEARBOX DRILL PRESS

    Heavy cast body

    Mechanical clutch spindle feed

    150 mm column diameter

    Electromagnetic clutch spindle feed

    Adjustable height safety switch guard

    Guide pull mode

    360° rotating table

    Lighting

    Cooling system

    DELIVERY CONTENT

    MK4-B16 morse taper

    3-16mm B16 chuck

    Accessories

    OPTIONAL ACCESSORIES

    110104: MK4-B16 drill morse taper

    150200: Drill vice 200 mm

    Motor Power 1.5 kW, 400 V
    Operation Type With gearbox
    Drilling Capacity 35 mm
    Guide Capacity M24
    Spindle Taper MK4
    Spindle Stroke 180 mm
    Spindle to Column Distance 350 mm
    Spindle to Table Distance 780 mm
    Spindle to Base Distance 1320 mm
    Column Diameter 150 mm
    Speed 50-1450 RPM
    Step 18
    Table Dimensions 560x560 mm
    Base Dimensions 730x500 mm
    Spindle Feed 0.1-0.2 mm/rev
    Cooling Pump Power 60 W
    Cooling Tank Capacity 5 L
    Machine Dimensions (LxWxH) 935x560x2280 mm
    Packaging Dimensions 1130x700x2480 mm
    Net Weight 500 kg
