    MC32 Plus Geared Drill Press

    M25 Column Drill Press is an ideal solution for high durability and precise hole drilling operations. It is manufactured in compliance with CE standards.

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

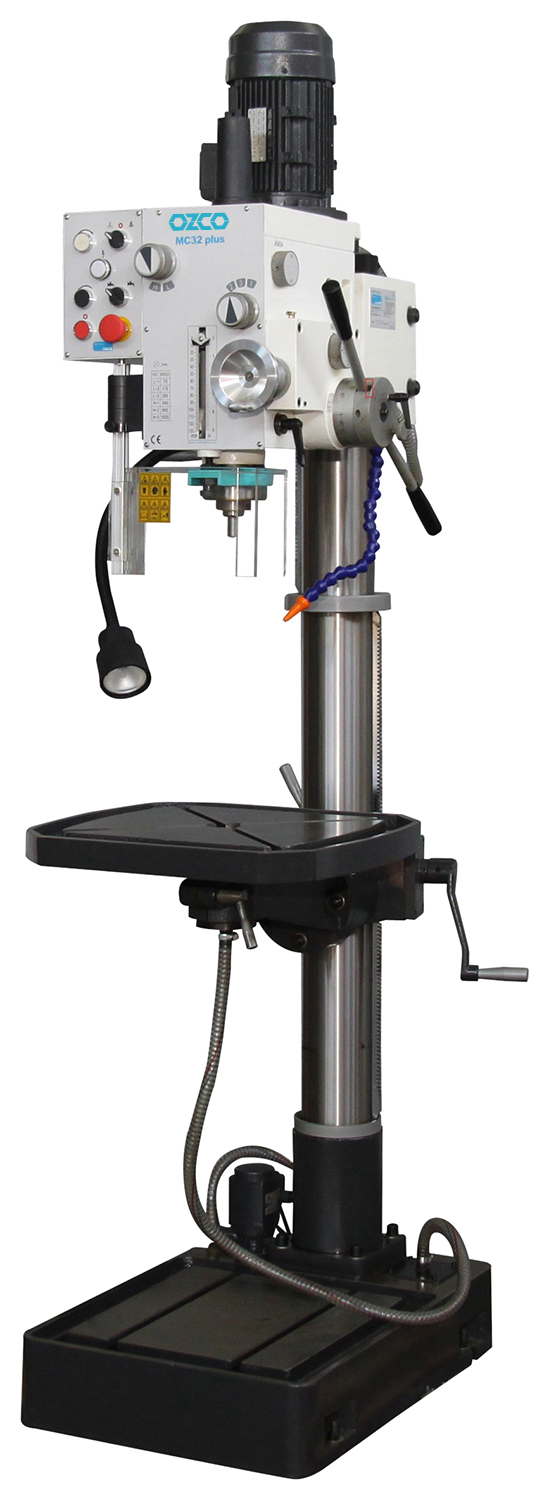

    MC32 PLUS GEARED DRILL PRESS

    Automatic spindle feed

    Tapping mode

    Cooling system

    Lighting

    Height adjustable

    Guard with safety switch

    Complies with CE standards

    SCOPE OF DELIVERY

    MK4 B-16 Morse taper

    3–16 mm B-16 chuck

    Tool kit

    OPTIONAL ACCESSORIES

    110104: MK4-B16 drill Morse taper

    150200: 200 mm drill vise

    Motor Power 1.5 kW, 400 V w
    Operating Type Geared
    Drilling Capacity 32 mm
    Tapping Capacity M20
    Spindle Taper MK4
    Spindle Travel/Stroke 120 mm
    Distance Spindle to Column 298 mm
    Distance Spindle to Table 610 mm
    Distance Spindle to Base 1180 mm
    Column Diameter 115 mm
    Speed 75–1600 rpm
    Speed Steps 6
    Table Dimensions 560x460 mm
    Spindle Feed 0.10, 0.18, 0.26
    Machine Dimensions (LxWxH) 935x560x2280 mm
    Packing Dimensions 700x720x2050 mm
    Cooling Pump Power 40 w
    Net Weight 335 kg
