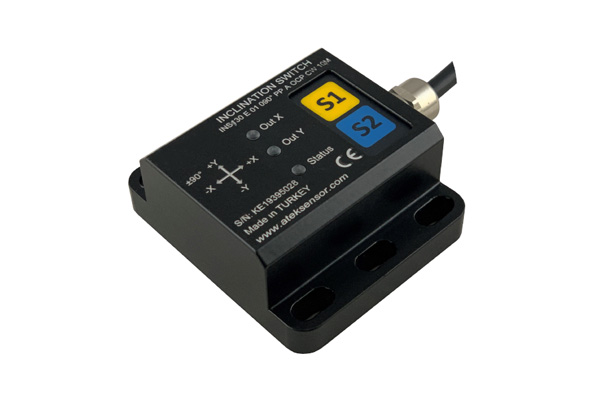

    INS 130 Tilt Sensor

    The INS 130 Tilt Sensor provides high-precision tilt measurement with an accuracy of ±0.15°. It features compensated axis sensitivity and a compact, durable metal housing.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün

    INS 130 TILT SENSOR
    The INS 130 Tilt Sensor is capable of measuring in two axes (XY).

    It can measure angles and tilt up to 360°.

    It has programmable measurement limits.

    Analog output options are 0.1...10VDC or 4...20mA.

    It features a programmable switching output (≤ 300 mA).

    It has a PNP Open Collector output type.

    High precision of ±0.15°.

    Easy to install.

    IP67 high protection class.

    It has a small and robust metal housing.

    Compact design.

    Resolution ±0.05°
    Operating Temperature -30...+70 °C
    Electrical Connection 8x0.14 mm² shielded cable or M12 male socket
    Supply Voltage 12...24 VDC
